Mini PTZ Camera

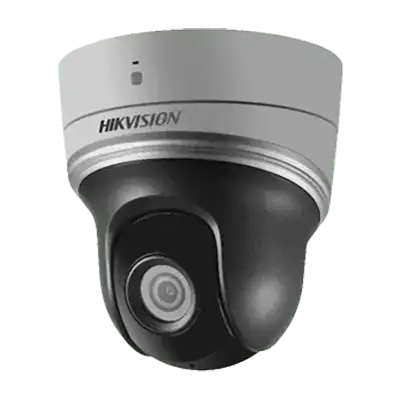

Hikvision DS-2DE2204IW-DE3/W (S6) 2MP 4× Network IR Wi-Fi Mini PTZ Camera
IR Range
Up to 20m IR distance
Frame Rate
50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720)
60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
Smart Features
DWDR, 3D DNR, HLC, ROI, BLC
SD Card Slot
Built-in memory card slot, supporting SD/SDHC/SDXC
Zoom
4 × Optical Zoom
16 × Digital Zoom
EVID-S8.2TB: Product FAQs
The Electro-Voice EVID-S8.2TB is an 8-inch two-way surface-mount speaker supplied as a black pair. It is designed for background and foreground music, paging and sound reinforcement in restaurants, retail stores, fitness clubs and hospitality venues.
Yes. Its built-in 60 W transformer supports 70 V and 100 V systems, with selectable 15 W, 30 W and 60 W taps. A 7.5 W tap is available for 70 V systems only. An 8-ohm bypass also supports low-impedance operation.
Yes. The EVID-S8.2TB has an IP54-rated enclosure for indoor and outdoor applications. Its included mounting system supports wall or ceiling installation, with 90° horizontal and 45° vertical adjustment.
The EVID-S8.2TB comes with a pre-assembled mounting system for wall or ceiling installation. It allows 90° horizontal and 45° vertical adjustment to position the speakers. Mounting brackets and a 5 mm Allen wrench are included.
ESCO (Electronic Security Company) is an official Electro-Voice dealer in Pakistan.
Built for Commercial Audio Installation
The Electro-Voice EVID-S8.2TB combines a paintable, fire-rated ABS enclosure with a zinc-plated, powder-coated grille. Connections through the wall-mounted bracket help conceal wiring, while removable locking Euroblock connectors support additional speakers on a distributed line. Its rotatable grille logo accommodates horizontal positioning, and the EVID-S range is designed to work alongside other EVID ceiling and in-wall speakers.
Paintable ABS Enclosure
The fire-rated ABS enclosure can be painted to match the installation décor. The EVID-S8.2TB comes in black RAL 9004.
Corrosion-Resistant Grille
A zinc-plated, powder-coated grille provides corrosion resistance as part of the speaker’s weather-resistant construction.
Concealed Wall-Bracket Wiring
Electrical connections pass through the wall-mounted portion of the mounting system, allowing wiring to remain hidden for a clean installation.
Quick-Attach Mounting
The ball-and-socket mounting system features quick attachment and detachment, with the support bracket integrated into the enclosure.
Locking Euroblock Connections
Removable locking 4-pin Euroblock connectors provide an additional connection option and support wiring to further speakers in a distributed line.
Protected Bypass Selection
A rear-panel switch selects transformer taps or 8-ohm bypass operation. The bypass selection is protected by a safety screw.
Commercial Audio Applications
The Electro-Voice EVID-S8.2TB surface-mount speaker pair is designed for background and foreground music, paging and sound reinforcement across a range of commercial spaces.
Restaurants, Bars & Patios
Support background music, foreground music and paging in dining areas, bars and outdoor patio spaces.
Retail & Hospitality
Provide music and paging in retail stores and hospitality venues using a surface-mount speaker system.
Fitness & Leisure Venues
Use the EVID-S8.2TB for music and sound reinforcement in fitness clubs, theme parks and leisure venues.
