IP Video Input

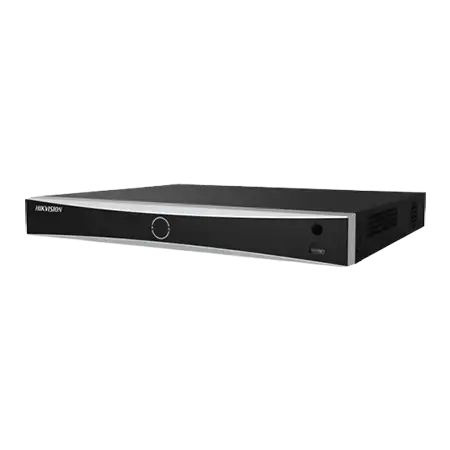

Hikvision DS-7616NXI-I2/S 16-ch 1U AcuSense 4K NVR
Decoding Format
Supports H.265+/H.265/H.264+/H.264 Video formats
Bandwidth
Incoming Bandwidth: 160 Mbps, Outgoing Bandwidth: 256 Mbps
AcuSense Features
Up to 4-ch perimeter protection, Up to 4-ch facial recognition for video stream
Up to 8-ch facial recognition for face picture
Video Output
Provide independent HDMI and VGA outputs
Resolution
Live view, storage, and playback at up to 32MP resolution
Interface
2 SATA interface connectable for recording and backup
Smart Function
Support multiple VCA (Video Content Analytics) events, Smart search for the selected area in the video, POS information overlay on live view and playback
|
Intelligent Analytics |
|
|
AI by NVR |
Facial recognition, perimeter protection, motion detection 2.0 |
|
AI by Camera |
Facial recognition, perimeter protection, video structuralization, throwing objects from building, motion detection 2.0, ANPR, people counting, VCA |
|
Engine |
1, engine mode is adjustable |
|
Facial Recognition |
|
|
Face Picture Library |
Up to 16 face picture libraries, with up to 50,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 1 GB) |
|
Face Picture Comparison |
8-ch |
|
Facial Detection and Analytics |
Face picture comparison, human face capture, face picture search |
|
Facial Detection and Analytics Performance |
4-ch human face capture (HD network camera, up to 8 MP, H.264/H.265) |
|
Motion Detection 2.0 |
|
|
By NVR |
All channels for Hikvision cameras |
|
By Camera |
All channels |
|
Perimeter Protection |
|
|
By NVR |
4-ch, 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm; Up to 12 rules in total |
|
By Camera |
All channels |
|
ANPR |
|
|
By Camera |
All channels |
|
Vehicle Attributes |
Plate number, license plate color, license plate type |
|
Plate Attributes |
Vehicle brand, vehicle color, vehicle type |
|
Video and Audio |
|
|
IP Video Input |
16-ch |
|
Incoming Bandwidth |
160 Mbps |
|
Outgoing Bandwidth |
256 Mbps |
|
HDMI Output |
4K (3840 × 2160)/30 Hz, 2K (2560 × 1440)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
|
VGA Output |
1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
|
Video Output Mode |
HDMI/VGA independent output |
|
CVBS Output |
1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
|
Audio Output |
1-ch, RCA (Linear, 1 KΩ) |
|
Two-Way Audio |
1-ch, RCA (2.0 Vp-p, 1 KΩ) |
|
Decoding |
|
|
Decoding Format |
H.265+ / H.265 / H.264+ / H.264 |
|
Recording Resolution |
32MP / 24MP / 12MP / 8MP / 6MP / 5MP / 4MP / 3MP / 1080p / 720p / VGA 32MP / 24MP / 12MP / 8MP / 7MP / 6MP / 5MP / 4MP / 3MP / 1080p / UXGA / 720p / VGA *: The NVR supports up to 4-ch 32 MP/24 MP IP video inputs. |
|
Synchronous playback |
16-ch |
|
Decoding Capability |
Enable AI by NVR: 20-ch@1080p (30 fps) Disable AI by NVR: 32-ch@1080p (30 fps) |
|
Audio Compression |
G.711ulaw / G.711alaw / G.722 / G.726 / AAC / MP2L2 / PCM |
|
Dual-Stream Recording |
Support |
|
Stream Type |
Video, Video & Audio |
|
Network |
|
|
Network Interface |
2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
|
Remote Connection |
128 |
|
Network Protocol |
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
|
API |
ONVIF (profile S/G); SDK; ISAPI |
|
Auxiliary Interface |
|
|
SATA |
2 SATA interfaces |
|
Capacity |
Up to 14 TB capacity for each disk |
|
Alarm In/Out |
4/1 |
|
USB Interface |
Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0 |
|
General |
|
|
Power Supply |
100 to 240 VAC, 50 to 60 Hz |
|
Consumption |
≤ 30 W (without HDD) |
|
Working Temperature |
-10° C to 55° C (14° F to 131° F) |
|
Working Humidity |
10% to 90% |
|
Chassis |
1U chassis |
|
Dimension (W × D × H) |
385 × 317 × 52 mm (15.2"× 12.5" × 2.0") |
|
Weight |
≤ 2.5 kg (without HDD, 5.5 lb.) |
|
Certification |
|
|
Obtained Certification |
CE, CB, REACH, WEEE, UKCA, LOA |
|
CE |
EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4 |
