DeepinMind NVR

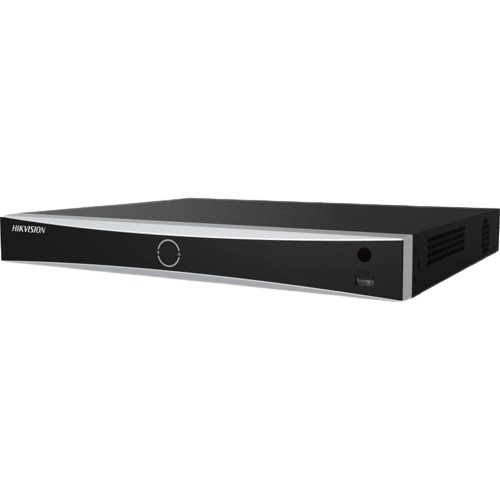

Hikvision iDS-7616NXI-M2/X 16-ch DeepinMind M Series NVR
Decoding Capacity
2-ch@32 MP (30 fps)/2-ch@24 MP (30 fps)/4-ch@12 MP (20 fps)/8-ch@8 MP (25
fps)/16-ch@4 MP (30 fps)
Bandwidth
Incoming Bandwidth 256 Mbps
Outgoing Bandwidth 256 Mbps
Decoding Format
Supports H.265+/H.265/H.264+/H.264 Video formats
Interface
Provide independent HDMI and VGA outputs
Alarm In/Out: 4/1, 1 × eSATA interface, 2 SATA interfaces
Smart Function
Up to 12-ch perimeter protection, Up to 8-ch facial recognition for video stream, or up to 16-ch facial recognition for face picture, Up to 6-ch video structuralization
|
Intelligent Analytics |
||
|
AI by NVR |
Facial recognition, perimeter protection, video structuralization, throwing objects from building |
|
|
AI by Camera |
Facial recognition, perimeter protection, video structuralization, throwing objects from building, motion detection2.0, ANPR, people counting, VCA |
|
|
Engine |
1 engine can run an intelligent algorithm, engine mode is adjustable |
|
|
Facial Recognition |
||
|
Facial Detection and Analytics |
Face picture comparison, human face capture, face picture search |
|
|
Face Picture Library |
Up to 16 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library |
|
|
Face Picture Comparison (Captured from Camera) |
16-ch; Comparison speed: 24 pictures per second |
|
|
Facial Detection and Analytics Performance |
8-ch 2 MP, up to 8 MP |
|
|
Perimeter Protection |
||
|
By NVR |
12-ch 2 MP, up to 8 MP |
|
|
By Camera |
All channels |
|
|
Video Structuralization |
||
|
Structured Analysis |
6-ch 2 MP, up to 8 MP |
|
|
Face Picture Library |
Up to 32 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 500,000 face pictures in face capture (each picture ≤ 4 MB, total capacity ≤ 20 GB) |
|
|
Face Picture Comparison |
8-ch; Comparison speed: 16 pictures per second |
|
|
Throwing Objects from Building |
||
|
By NVR |
8-ch 2 MP, up to 8 MP |
|
|
By Camera |
All channels |
|
|
ANPR |
||
|
By Camera |
All channels |
|
|
Plate Attributes |
Vehicle brand, vehicle color, vehicle type |
|
|
Vehicle Attributes |
Plate number, license plate color, license plate type |
|
|
Video and Audio |
||
|
IP Video Input |
16-ch Up to 32 MP resolution *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs. |
|
|
Incoming Bandwidth |
256 Mbps |
|
|
Outgoing Bandwidth |
256 Mbps |
|
|
HDMI Output |
8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
|
|
VGA Output |
1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
|
|
Video Output Mode |
HDMI/VGA independent output |
|
|
CVBS Output |
1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
|
|
Audio Output |
1-ch, RCA (Linear, 1 KΩ) |
|
|
Two-Way Audio |
1-ch, RCA (2.0 Vp-p, 1 k Ω) |
|
|
Decoding |
||
|
Decoding Format |
H.265 / H.265+ / H.264 / H.264+ |
|
|
Decoding Capability |
2-ch@32MP (30 fps)/2-ch@24MP (30 fps)/4-ch@12 MP (20 fps)/8-ch@8 MP (25 fps)/16-ch@4 MP (30 fps) |
|
|
Synchronous Playback |
16-ch |
|
|
Recording Resolution |
32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP / 1080p / 720p *: After ultra-HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs. |
|
|
Network |
||
|
Remote Connection |
128 |
|
|
Network Protocol |
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
|
|
Network Interface |
2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
|
|
Auxiliary Interface |
||
|
SATA |
2 SATA interfaces; 3.5-inch HDD |
|
|
eSATA |
1 eSATA interface |
|
|
Capacity |
Up to 14 TB capacity for each HDD |
|
|
Serial Interface |
N/A |
|
|
USB Interface |
Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0 |
|
|
Alarm In/Out |
4/1 |
|
|
General |
||
|
Power Supply |
12 VDC, 5 A |
|
|
Consumption |
≤ 50 W (without HDD) |
|
|
Working Temperature |
-10 to 55° C (14 to 131° F) |
|
|
Working Humidity |
10 to 90% |
|
|
Dimension (W × D × H) |
385 × 315 × 52 mm (15.2"× 12.4" × 2.0") |
|
|
Weight |
≤ 3 kg (without HDD, 2.2 lb.) |
|
|
Certification |
||
|
Obtained Certification |
CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS |
|
|
FCC |
Part 15 Subpart B, ANSI C63.4-2014 |
|
|
CE |
EN 55032: 2015+A1:2020, ENIEC61000-3-2: 2019+A1: 2021, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020 |
|
