DeepinMind NVR

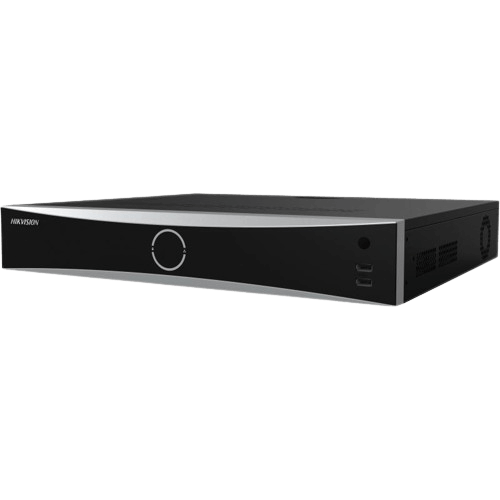

Hikvision iDS-7732NXI-M4/X 32-ch DeepinMind M Series NVR,
Decoding Capacity
Up to 2-ch@32 MP/2-ch@24 MP/4-ch@12 MP/8-ch@8 MP/16-ch@4 MP/32-ch@1080p decoding capacity
Bandwidth
Incoming Bandwidth: 320 Mbps
Outgoing Bandwidth: 400 Mbps
Decoding Format
Supports H.265+/H.265/H.264+/H.264 Video formats
Interface
2 HDMI (different source) and 1 VGA interfaces
Alarm In/Out: 16/4, 1 × eSATA interface, 4 SATA interfaces
Smart Function
Up to 24-ch perimeter protection, Up to 16-ch facial recognition for video stream, or up to 32-ch facial recognition for face picture, Up to 12-ch video structuralization
|
Intelligent Analytics |
|
|
AI by NVR |
Facial recognition, perimeter protection, video structuralization, throwing objects from building |
|
AI by Camera |
Facial recognition, perimeter protection, video structuralization, throwing objects from building, motion detection2.0, ANPR, people counting, VCA |
|
Engine |
2, each engine can run an intelligent algorithm, engine mode is adjustable |
|
Facial Recognition |
|
|
Facial Detection and Analytics |
Face picture comparison, human face capture, face picture search |
|
Face Picture Library |
Up to 16 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 5,000,000 face pictures in face capture (each picture ≤ 4 MB, total capacity ≤ 20 GB) |
|
Face Picture Comparison (Captured from Camera) |
32-ch (16-ch for each engine); Comparison speed: 48 pictures per second |
|
Facial Detection and Analytics Performance |
16-ch 2 MP (8-ch for each engine), up to 8 MP |
|
Perimeter Protection |
|
|
By NVR |
24-ch 2 MP (12-ch for each engine), up to 8 MP |
|
By Camera |
All channels |
|
Video Structuralization |
|
|
Structured Analysis |
12-ch 2 MP (6-ch for each engine), up to 8 MP |
|
Face Picture Libray |
Up to 16 face picture libraries, up to 100,000 face pictures in list library, up to 10,000 face pictures in stranger library, up to 5,000,000 face pictures in face capture (each picture ≤ 4 MB, total capacity ≤ 20 GB) |
|
Face Picture Comparison |
16-ch; Comparison speed: 32 pictures per second |
|
Throwing Objects from Building |
|
|
By NVR |
16-ch 2 MP (8-ch for each engine), up to 8 MP |
|
By Camera |
All channels |
|
ANPR |
|
|
By Camera |
All channels |
|
Plate Attributes |
Vehicle brand, vehicle color, vehicle type |
|
Vehicle Attributes |
Plate number, license plate color, license plate type |
|
Video and Audio |
|
|
IP Video Input |
32-ch Up to 32 MP resolution *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs. |
|
Incoming Bandwidth |
320 Mbps |
|
Outgoing Bandwidth |
400 Mbps |
|
HDMI 1 Output |
8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
|
HDMI 2 Output |
4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz *: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p. |
|
VGA Output |
1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz |
|
Video Output Mode |
HDMI1/VGA1
simultaneous output, |
|
CVBS Output |
1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
|
Audio Output |
1-ch, RCA (Linear, 1 KΩ) |
|
Two-Way Audio |
1-ch, RCA (2.0 Vp-p, 1 k Ω) |
|
Decoding |
|
|
Decoding Format |
H.265 / H.265+ / H.264 / H.264+ |
|
Decoding Capability |
2-ch@32 MP (30 fps)/2-ch@24 MP (30 fps)/4-ch@12MP (20 fps)/8-ch@8 MP (25fps)/16-ch@4 MP (30 fps)/32-ch@1080p (30 fps) |
|
Synchronous Playback |
16-ch |
|
Recording Resolution |
32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP / 1080p / 720p *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs. |
|
Network |
|
|
Remote Connection |
128 |
|
Network Protocol |
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
|
Network Interface |
2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
|
Auxiliary Interface |
|
|
SATA |
4 SATA interfaces; 3.5-inch HDD |
|
eSATA |
1 eSATA interface |
|
Capacity |
Up to 14 TB capacity for each HDD |
|
Serial Interface |
1 RS-232, 2 RS-485 (full-duplex), 1 keyboard |
|
USB Interface |
Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
|
Alarm In/Out |
16/4 (16/9 is optional) |
|
Ctrl 12V |
N/A |
|
DC 12V |
N/A |
|
General |
|
|
Power Supply |
100 to 240 VAC, 50 to 60 Hz |
|
Consumption |
≤ 50 W (without HDD) |
|
Working Temperature |
-10 to 55° C (14 to 131° F) |
|
Working Humidity |
10 to 90% |
|
Dimension (W × D × H) |
445 × 400 ×71 mm ( 17.5"× 15.7" × 2.8") |
|
Weight |
≤ 5 kg (without HDD, 11 lb.) |
|
Certification |
|
|
Obtained Certification |
CE, FCC, IC, CB, KC, UL, Rohs, Reach, WEEE, RCM, UKCA, LOA, BIS |
|
FCC |
Part 15 Subpart B, ANSI C63.4-2014 |
|
CE |
EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201 9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020 |
