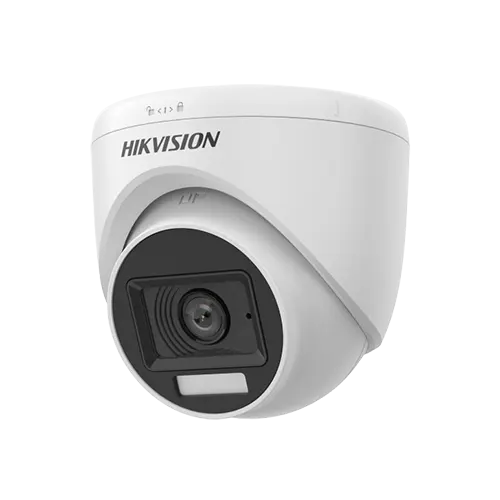

DS-2CE76D0T-EXLPF 2.8mm

Camera

Image Sensor

2 MP CMOS

Max. Resolution

1920 (H) × 1080 (V)

Min. Illumination

0.02 Lux @ (F2.2, AGC ON), 0 Lux with IR

Shutter Time

PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s

Day & Night

ICR

Angle Adjustment

Pan: 0 to 360°, Tilt: 0 to 75°, Rotate: 0 to 360°

Signal System

PAL/NTSC

Lens

Lens Type

2.8 mm fixed focal lens

Focal Length & FOV

2.8 mm, horizontal FOV: 97°, vertical FOV: 54°, diagonal FOV: 113°

Lens Mount

M12

Illuminator

Supplement Light Range

IR : Up to 20 m

White Light: Up to 20 m

Supplement Light Type

Smart, IR, White Light


Image Parameters Switch

STD/HIGH-SAT/HIGHLIGHT

Image Settings

Brightness, Sharpness, Smart IR

Frame Rate

TVI: 1080p @ 30 fps, 1080p @ 25 fps

AHD: 1080p @ 30 fps, 1080p @ 25 fps

CVI: 1080p @ 30 fps, 1080p @ 25 fps

CVBS: PAL/NTSC

Wide Dynamic Range (WDR)

Digital WDR

Image Enhancement

DWDR / BLC / HLC / Global

White Balance

Auto/Manual

AGC

Yes

Day/Night Mode

Auto/Color

Interface

Video Output

Switchable TVI / AHD / CVI / CVBS

General

Material

Plastic

Dimension

Ø85 mm × 84.6 mm (3.35" × 3.33")

Weight

Max. 150 g (0.33 lb.)

Operating Condition

-40 °C to 60 °C (-40 °F to 140 °F). Humidity: 90% or less (non-condensation)

Communication

HIKVISION-C

Language

English

Power Supply

12 VDC ± 25%, Max. 3.5 W

*You are recommended to use one power adapter to supply the power for one camera.
