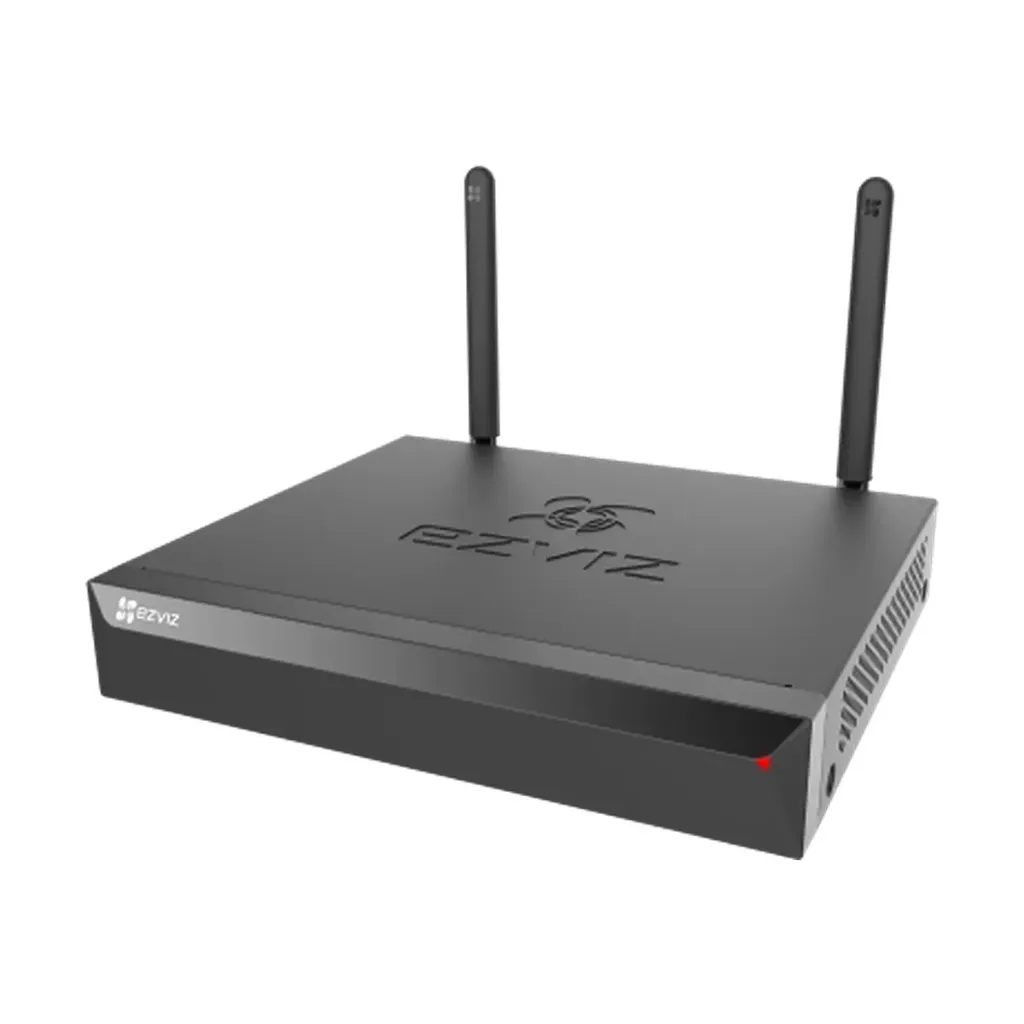

X5S (8W)
Wireless NVR with HDMI & VGA Outputs
Reliable, easy storage for
your security system
X5S (8W)
Wireless NVR with HDMI & VGA Outputs
Reliable, easy storage for
your security system
No Detail Is Overlooked
Connect the X5S to an extra monitor and watch every connected camera at the same time on one screen. Live and recorded videos play at up to 3K resolution, so you can see what is happening clearly and hardly miss a thing.
3K
Live & Playback Resolution
HDMI/VGA
Monitor Output
No Detail Is Overlooked
Connect the X5S to an extra monitor and watch every connected camera at the same time on one screen. Live and recorded videos play at up to 3K resolution, so you can see what is happening clearly and hardly miss a thing.
3K
Live & Playback Resolution
HDMI/VGA
Monitor Output
A Reliable Center for Your Important Footage
The X5S NVR is built to handle the large amount of video a security system creates. Its storage can be expanded up to 8 TB, and it can receive data and video from up to 8 connected Wi‑Fi cameras at the same time.
8 TB
Expandable Storage
8
Wi‑Fi Cameras at Once
A Reliable Center for Your Important Footage
The X5S NVR is built to handle the large amount of video a security system creates. Its storage can be expanded up to 8 TB, and it can receive data and video from up to 8 connected Wi‑Fi cameras at the same time.
8 TB
Expandable Storage
8
Wi‑Fi Cameras at Once
Key specs
- 8 channels, wireless or wired cameras up to 3K
- Works with EZVIZ and ONVIF cameras
- Wi-Fi range up to 100 m
- 1 SATA bay for a 1 to 8 TB 3.5-inch hard disk (not included)
- HDMI and VGA output, USB 2.0
- H.265, 10/100 Ethernet, 12 V 1.5 A
| IPC Access Capability | |
|---|---|
| Wireless/Wired IPC Access Capability | 3K *4/3K *8 |
| Wired IPC Access Capability | 3K *4 (X5S-4W) / 3K *8 (X5S-8W) |
| Network Parameters | |
| Antenna Number | 2 |
| Max Wireless Range | 100m |
| Radio Frequency | 2.4G |
| Ethernet Port | One 10/100M adaptable Ethernet interface |
| Required Access Bandwidth | 50 Mbps/100 Mbps |
| Video Output | |
| VGA | 1 channel (identical to HDMI output) resolution up to 1920*1080/60Hz |
| HDMI | 1 channel resolution up to 2592*1944/30HZ |
| Audio/Video Codec | |
| Recording Resolution | 3K / 2K+ / 2K / 1080p / UXGA / 720p / VGA / 4CIF / 2CIF / CIF / QCIF |
| Video Encoding | H.265, H.264 |
| Decode Playback | Supports 4*3K/Supports 8*3K |
| Video Recording Management | |
| Video Recording Mode | Manual video recording; Motion detection recording; Scheduled video recording; Event triggered recording |
| Backup Mode | Hard disk backup, Internet application backup |
| Playback Mode | Instant playback ; Normal playback ; Event playback ; Tag playback; Log event playback |
| Open Protocol | |
| Open Protocol Support | HIKVISION, ONVIF (V.2.5) |
| HDD | |
| Interface Type | One built-in SATA port |
| Capability | Supports 1TB to 8TB 3.5-inch HDD |
| External Interface | |
| Audio Input/ Output | Not support |
| Hardware Reset | Supports |
| USB2.0 Interface | 2 |
| Dimensions | |
| Product Dimensions | 235 × 270 × 44.5 mm (9.25 × 10.6 × 1.75 inch) |
| Packaging Dimensions | 387 × 362 × 75 mm (15.2 × 14.3 × 3 inch) |
| Power Supply | |
| DC | 12V/1.5A |
| Consumption | |
| Standby status | ≤8W |
| Weight | |
| Net Weight | 932 g |
| Certifications | |
| Certifications | CE / UL / RoHS / WEEE / REACH |
Know before you buy
Quick answers about the X5S 8W, and how it compares.
Do I need an NVR if my cameras have microSD cards?
Not always. An NVR records all your cameras in one place on a hard disk, keeps far more days than a card, shows every camera on your TV (HDMI or VGA), and keeps the footage safe even if a camera is stolen.
Which cameras and hard disks does it take?
Up to 8 cameras, wireless (Wi-Fi range up to 100 m) or wired, up to 3K quality: EZVIZ cameras and ONVIF cameras. It takes one 3.5-inch hard disk of 1 to 8 TB, not included; we can supply one with it.
X5S 8W or X5S 4W?
Same recorder; the X5S 4W takes up to 4 cameras and costs less.
Who sells EZVIZ in Pakistan, and what warranty and support do I get?
Electronic Security Company (ESCO) is the authorized national distributor of EZVIZ in Pakistan, so every unit is genuine and comes with a 1-year warranty. Warranty is carry-in: bring the unit to an ESCO office or the dealer you bought from, and after inspection it is repaired or replaced.
Order here and delivery is free anywhere in Pakistan. We keep stock in Karachi, Lahore, Islamabad and Rawalpindi, and our dealer network covers almost every other city. EZVIZ products are made to set up yourself in the EZVIZ app; if you get stuck, our helpdesk helps on WhatsApp, phone and email, 10am to 6pm. Use Add to Cart, or Request a Quote for several units.
