PRA-WCP-EU

(0 reviews)

The Bosch PRA-WCP-EU is the PRAESENSA wall control panel: local background music and volume control, a 1.77" colour display with single-knob operation, PoE powered, and white and black fronts included. Scroll down for details.

See full specs and details Have a question? 7 answered
Rs. 0 Rs. 0

  • Brand - BOSCH
Request a Quote
BOSCH
BOSCH

Global leader in Public Address, Voice Evacuation and Conference Systems.

Bosch PRAESENSA public address and voice alarm system: operator at a reception desk with the PRA-CSLD call station Bosch, Invented for life

IP-connected and fully-featured

PRAESENSA Public Address and Voice Alarm System

PRAESENSA system components

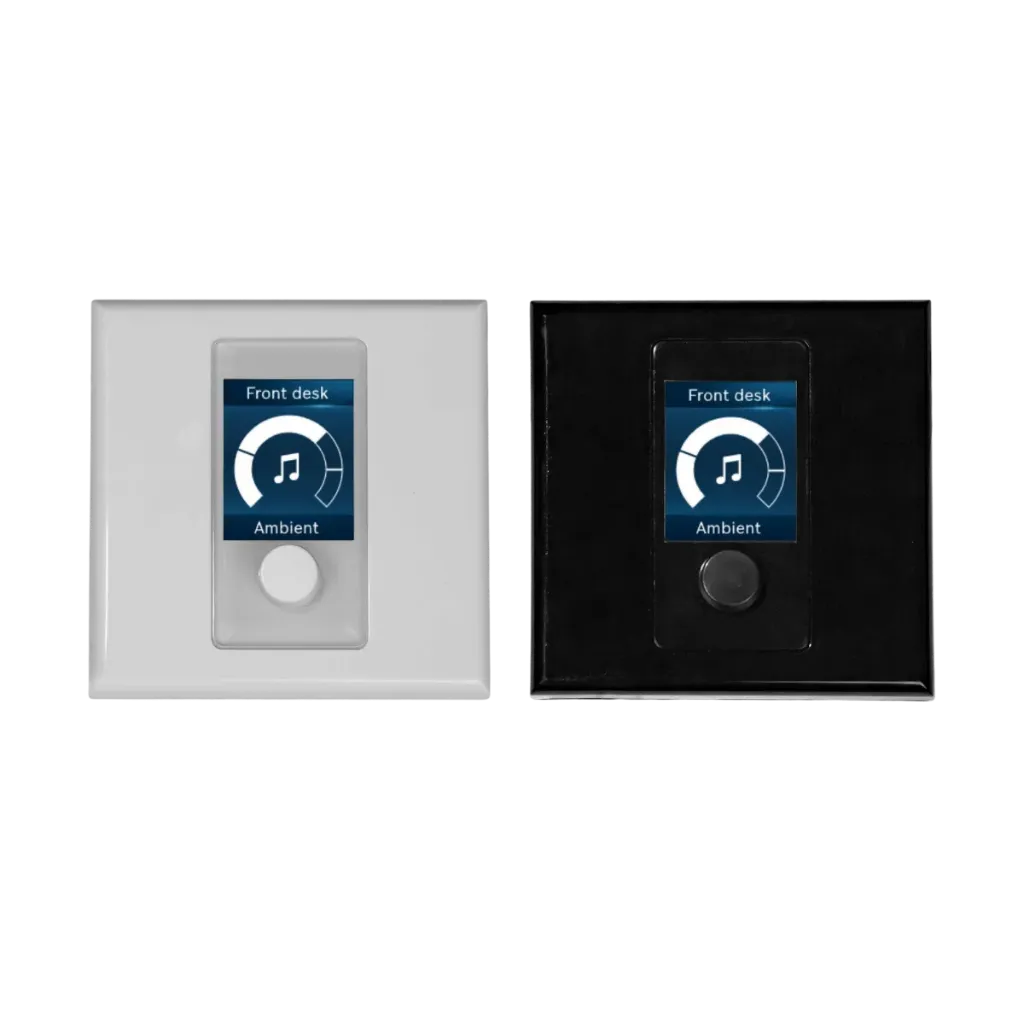

PRA-WCP-EU PRAESENSA Wall Control Panel, EU-style

PoE-powered wall panel with a colour display and a single knob for local control of background music source and volume in a zone.

  • Colour TFT Display
  • One Knob Control
  • PoE Powered
PRA-WCP-EU

PRA-WCP-EU · Product drawings

See the PRA-WCP-EU from every side

The display and knob on the front, and the single network connection on the back.

.
Front · 01 / 02PRA-WCP-EU front.
.
FrontColour TFT display and the single rotary / push knob on a square wall plate.
01 / 02

PRA-WCP-EU · Key features

Background music, one knob away

Explore the key capabilities of the Bosch PRAESENSA PRA-WCP-EU wall control panel. Click a feature to see it in detail.

Features

PRAESENSA · Application areas

Ideal for mid-to-large sites

Click a site to see how PRAESENSA zones it, with an example bill of quantities. Existing systems on site can be integrated with new PRAESENSA buildings.

LIBRARYQuiet
LECTURE HALLS● Announcement
LABS● Paging · 70%
CAFETERIA● Music · 50%
CAMPUS GROUNDS● Music · 35%
ROOF · TERRACE● Music · 40%
FLOOR 3 · GUEST ROOMSQuiet
FLOOR 2 · CONFERENCE● Announcement
FLOOR 1 · RESTAURANT● Music · 55%
GROUND · LOBBY● Music · 60%
BUILDING A · EXISTING SYSTEMBUILDING B · NEW PRAESENSA
FLOOR 2 · SHOPS● Music · 50%
FLOOR 1 · FOOD COURT● Music · 65%
GROUND · ATRIUM● Promotion · 70%
PARKING● Parking notice
FLOOR 3 · CINEMAQuiet
FLOOR 2 · FASHION● Music · 45%
FLOOR 1 · KIDS ZONE● Music · 40%
GROUND · ENTRANCE● Parking notice
OMNEO / IPLIVE CALL SYNCPRA-SCL
TERMINAL HALL● Boarding call
GATES A–D● Paging · 75%
CHECK-IN● Music · 35%
BAGGAGE CLAIM● Paging · 60%
AIRSIDEEvacuation ready
ICUQuiet
OPERATING THEATRESQuiet
WARDS● Staff paging · 40%
OPD · WAITING● Music · 30%
EMERGENCY● Code call
CONTROL ROOMSupervised
PROCESS AREA● Alarm tone
LOADING BAY● Paging · 90%
WORKSHOP● Paging · 80%
ADMIN BLOCK● Music · 30%
Customer stories

PRAESENSA protects airports, stadiums, hotels and campuses around the world.

Ask for references →

01 / 07 · Universities

Universities

“When choosing a university, students and their families value a safe and secure teaching and learning environment.”

  • Loud in labs, quiet in libraries
  • Phased evacuation to local rules
  • Staff adjust music across campus

Example site: campus with 5 buildings

48zones
4call stations
296speakers

Example BOQQty

PRA-SCLSystem controller1
PRA-MPS3Power supply + battery charger3
PRA-AMPLAmplifier, 600 W3
PRA-CSLDCall station4
Ceiling speakersHalls, classrooms, library220
Wall / cabinet speakersCorridors, cafeteria60
Horn speakersCampus grounds16

Indicative quantities for an example site. Your system is sized by our engineers. Request a BOQ →

02 / 07 · Hotels

Hotels

“Hotel guests who feel right at home are more likely to enjoy repeat visits and make recommendations.”

  • Music changes by time and season
  • Calm audio near guest rooms
  • Multilingual message library

Example site: 12-floor city hotel

26zones
2call stations
196speakers

Example BOQQty

PRA-SCLSystem controller1
PRA-MPS3Power supply + battery charger2
PRA-AMPLAmplifier, 600 W2
PRA-CSLDCall station2
Ceiling speakersLobby, corridors, restaurant160
Wall speakersConference, spa24
Outdoor speakersTerrace, pool12

Indicative quantities for an example site. Your system is sized by our engineers. Request a BOQ →

03 / 07 · Shopping malls

Two buildings, one system

“Happy, informed shoppers stay longer and buy more.”

  • Connects with the PA system already on site
  • One announcement across both buildings
  • Music, promotions and notices per zone

Example site: existing mall + new extension

40zones
3call stations
344speakers

Example BOQQty

PRA-SCLSystem controller (new building)1
IntegrationLink to existing PA system1
PRA-MPS3Power supply + battery charger4
PRA-AMPLAmplifier, 600 W4
PRA-CSLDCall station3
Ceiling speakersShops, food court, atrium320
Horn speakersParking24

Indicative quantities for an example site. Your system is sized by our engineers. Request a BOQ →

04 / 07 · Airports

Airports

Clear, timed announcements across every terminal and gate.

  • Gate and boarding calls by zone
  • Phased evacuation of concourses
  • Multilingual pre-recorded messages

Example site: terminal with 24 gates

96zones
10call stations
600speakers

Example BOQQty

PRA-SCLSystem controller (redundant pair)2
PRA-MPS3Power supply + battery charger8
PRA-AMPLAmplifier, 600 W8
PRA-CSLDCall station (gate desks)10
Ceiling speakersHalls, gates, baggage520
Projector / horn speakersAirside, high ceilings80

Indicative quantities for an example site. Your system is sized by our engineers. Request a BOQ →

05 / 07 · Hospitals

Hospitals

Staff calls reach the right ward without disturbing patients.

  • Code calls to selected areas
  • Quiet ICU and operating theatres
  • EN 54-16 voice evacuation

Example site: 8-floor general hospital

60zones
6call stations
400speakers

Example BOQQty

PRA-SCLSystem controller (redundant pair)2
PRA-MPS3Power supply + battery charger4
PRA-AMPLAmplifier, 600 W4
PRA-CSLDCall station (nurse stations)6
Ceiling speakersWards, OPD, corridors360
Wall speakersEmergency, stairwells40

Indicative quantities for an example site. Your system is sized by our engineers. Request a BOQ →

06 / 07 · Oil & gas refineries

Oil & gas refineries

Intelligible alarms and paging over high-noise process areas.

  • Alarm tones and paging per area
  • Supervised lines and redundancy
  • Control room keeps full status

Example site: process plant with 18 zones

18zones
3call stations
130speakers

Example BOQQty

PRA-SCLSystem controller (redundant pair)2
PRA-MPS3Power supply + battery charger3
PRA-AMPLAmplifier, 600 W3
PRA-CSLDCall station3
Horn speakersProcess area, loading bay110
Wall speakersControl room, admin20

Indicative quantities for an example site. Your system is sized by our engineers. Request a BOQ →

07 / 07 · References

References

Decades of Bosch public address design experience, with PRAESENSA running in sites worldwide.

  • Airports, metros and stadiums
  • Hotels, malls and campuses
  • Ask esco.pk for local references
Ask for references →
PRA-WCP Engineering Datasheet.pdf
Download

Key specs

  • Local background music source and volume control
  • 1.77" color TFT display, 480 cd/m²
  • Single rotate/push knob, optional PIN access
  • PoE powered (802.3af Class 1), 1.3 W
  • Control data only, minimal network bandwidth
  • Fits standard EU round back box (Ø 60 x 60 mm)
  • White and black fronts and wall plates included
  • 81 x 70 x 47.3 mm, 0.1 kg
Chat on WhatsApp

Specifications: Bosch PRAESENSA PRA-WCP-EU

General

SpecificationValue
ModelPRA-WCP-EU
Order numberF.01U.394.535
Product typeWall control panel, EU-style
SystemBosch PRAESENSA
FunctionLocal background music source and volume control

Display & Controls

SpecificationValue
Display1.77" color TFT, backlit
Resolution128 × 160 px
Brightness480 cd/m²
ControlSingle rotary knob with push select
Access controlOptional PIN code
ResetFactory reset button (behind cover)

Power

SpecificationValue
PoE inputIEEE 802.3af, Class 1 (PD)
Nominal voltage48 V DC (37 – 57 V DC)
Power consumption1.3 W max

Network

SpecificationValue
Ethernet1 × RJ45, 100BASE-TX / 1000BASE-T
ProtocolsTCP/IP, AES70
Data typeControl data only (no audio)

Reliability & Environmental

SpecificationValue
MTBF2,433,404 h (Telcordia SR-332)
Operating temperature-5°C to +50°C
Storage temperature-30°C to +70°C (-22°F to 158°F)
Humidity (non-condensing)5% – 95%
Air pressure560 – 1,070 hPa
Altitude-500 m to 5,000 m
Vibration (operating)< 0.7 mm, < 2 G
Bump (transport)< 10 G

Mechanical

SpecificationValue
Dimensions (H × W × D)81 × 70 × 47.3 mm
Wall boxStandard European round back box, Ø 60 × 60 mm deep
MountingFlush mount
IP ratingIP20
MaterialPlastic (PC/ABS, UL94-5VA)
ColorWhite (RAL 9003) fitted, black (RAL 9017) included
Weight0.1 kg

Certifications

CategoryStandard
ImmunityEN 55035
EmissionsEN 55032, EN 61000-6-3, ICES-003, ANSI C63.4, FCC-47 Part 15B Class A
EnvironmentEN/IEC 63000

Parts Included

QuantityComponent
1PRA-WCP-EU wall control panel, white version
1Wall plate, white
1Wall plate, black
1Black front panel and knob
1Quick installation guide
1Safety and security information
Questions & answers

Know before you buy

Quick answers about the PRA-WCP-EU, and how it compares.

Where does the PRA-WCP-EU fit?
On the wall of a room or zone in a Bosch PRAESENSA system. Staff choose the background music source and set the volume locally, and the [PRA-SCL] controller adjusts the amplifier channels.
What can staff control?
The music source, from a list of BGM channels assigned to that zone, and the volume, within minimum and maximum limits set during configuration. Everything is done with one knob: turn to choose, push to select.
Can I stop guests or the public changing the music?
Yes. Optional PIN access limits operation to authorized staff, which is useful in hotel lobbies, restaurants and shops
How is it installed?
It flush-mounts in a standard European round back box (60 mm diameter, 60 mm deep). One shielded network cable carries both data and PoE power (802.3af, 1.3 W). Power it from a PoE port such as the [PRA-ES8P2S] switch.
Does it work for emergency announcements?
No. It controls background music only. Emergency calls and alarm messages from the PRAESENSA system always override it automatically.
How does a PRAESENSA system fit together?
The [PRA-SCL] or [PRA-SCS] system controller is the brain: it routes all audio, plays messages and supervises every device. [Amplifiers], [multifunction power supplies] with battery backup and [call stations] all connect over one IP network using OMNEO, with loop-through cabling for redundancy. Up to 250 devices and 500+ zones per system, certified to EN 54-16 and ISO 7240-16.
Who supplies Bosch PRAESENSA in Pakistan, and what warranty do I get?
Electronic Security Company (ESCO) is the only authorized distributor of Bosch, Dynacord and Electro-Voice in Pakistan, so every PRAESENSA product we supply is genuine and comes with a 3-year warranty. Warranty is carry-in: bring the unit to an ESCO office and after inspection it is repaired or replaced as needed.
