PRA-SCL

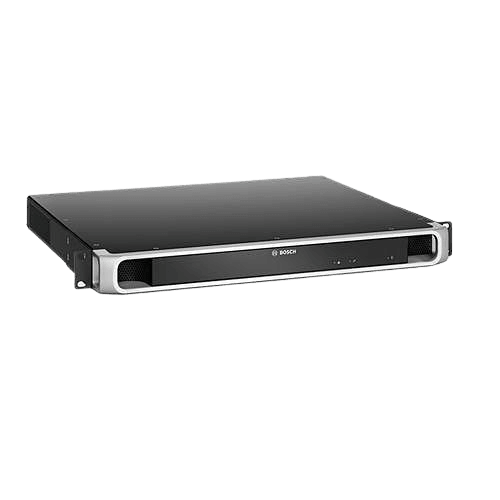

Bosch PRA-SCL System controller, large, Full control of PRAESENSA devices and audio routing, Built‑in supervised storage for messages and tone files, Support for Dante audio input and output streams, Open interface to third party applications, IP‑networked on OMNEO for audio and control, Network‑connected, DC‑powered, system controller and message manager for Public Address and Voice Alarm applications, Tone/message playback (dynamic) OMNEO channels: 8, Audio inputs (static) Dante or AES67 channels: 120, Audio outputs (static) Dante channels: 8, IP30.

Key Features

* Full control of PRAESENSA devices and audio routing.

* Built‑in supervised storage for messages and tone files.

* Support for Dante audio input and output streams.

* Open interface to third party applications.

* IP‑networked on OMNEO for audio and control

Technical Specifications

Electrical

Control

Audio routing (dynamic)

  OMNEO channels



Unlimited

Tone/message playback (dynamic)

  OMNEO channels



8

Audio inputs (static)

  Dante or AES67 channels



120

Audio outputs (static) Dante channels

8

Logging

(internal storage) Call events

Fault events

General events



1000

1000

1000

Real Time Clock

Accuracy (with NTP)

Accuracy (no NTP)

Daylight Saving Time (DST)

Backup battery



< 1 s/yr off

< 11 min/yr off

Automatic

CR2032 Lithium cell

Message/tone storage capacity

  Mono, uncompressed, 48 kHz, 16‑bit



90 min

SD card size

1 to 32 GB

System size

Networked devices

Zones



250 (single subnet)

500



Configuration

Web server/browser



Power transfer



Power supply input A/B

  Input voltage range

  Input voltage tolerance



24 to 48 VDC

20 to 60 VDC



Power consumption (24 V)

  Duty mode

  Per active port



3.9 W

0.4 W



Supervision



Run fault (watchdog reset)

All processors



System integrity

  Fault report time



< 100 s



Site specific data integrity

Fault report time

Supervised message storage



< 1 hour

90 min



Power supply input A/B

Undervoltage



Network interface



Ethernet

Protocol

Redundancy

100BASE‑TX, 1000BASE‑T

TCP/IP

RSTP



Audio/control protocol

  Network audio latency

  Audio data encryption

  Control data security

OMNEO

10 ms

AES128

TLS



Ports

5



Reliability



MTBF (extrapolated from calculated MTBF of PRA-AD608)

1.000.000 h



Environmental



Climatic conditions



Temperature

Operating

Storage and transport



-5 to +50 °C (23 to 122 °F)

-30 to +70 °C (-22 to 158 °F)



Humidity (non condensing)

5 to 95 %



Air pressure (operating)

560 to 1070 hPa



Altitude (operating)

-500 to +5000 m

(-1640 to 16404 ft)



Vibration (operating)

  Amplitude

  Acceleration



< 0.7 mm

< 2 G



Bump (transport)

< 10 G



Mechanical



Enclosure



Dimensions (WxHxD)

  With mounting brackets

  Rack unit



483 x 44 x 400 mm (19 x 1.75 x 15.7 in)

19 in, 1U



Ingress protection

IP30



Case

  Material

  Color



Steel

RAL9017



Frame

  Material

  Color



Zamak

RAL9022HR



Weight

5.8 kg (12.8 lb)
