CCS 1000 D system components

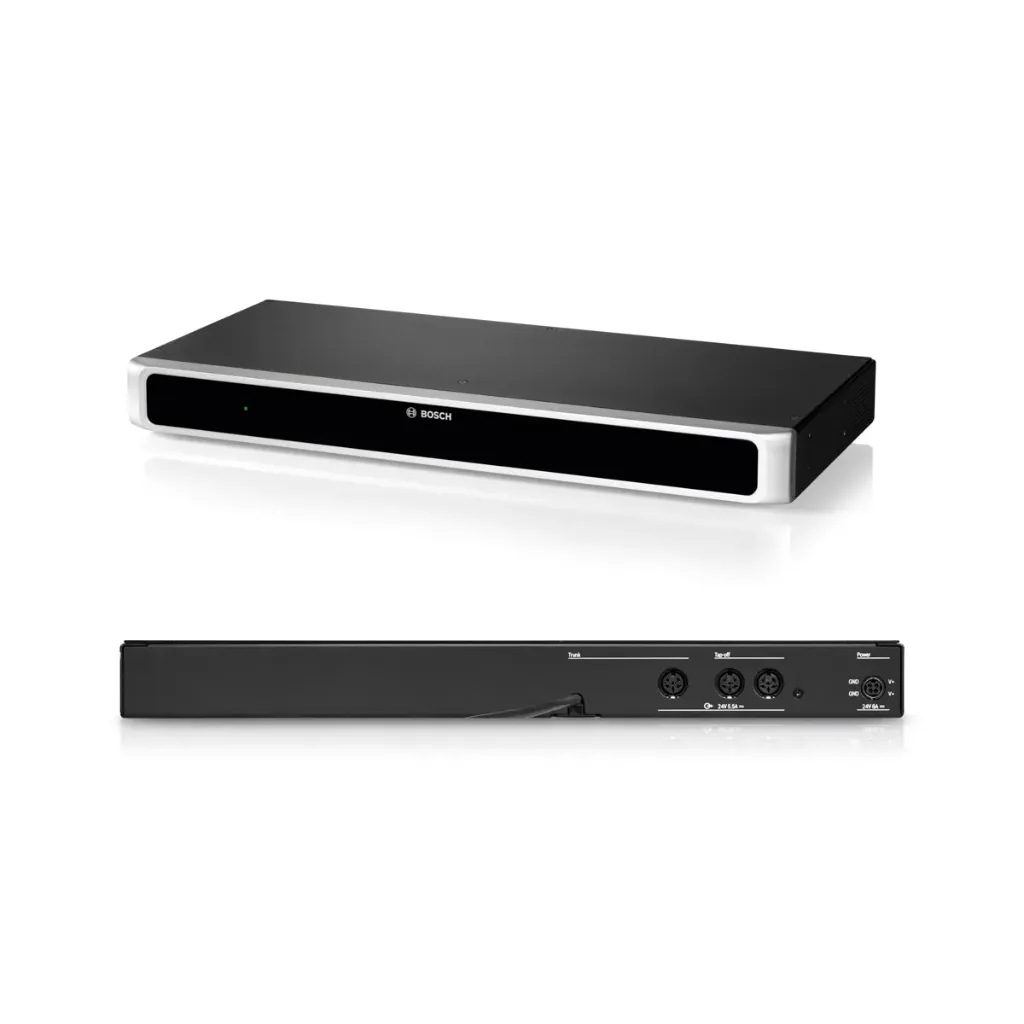

CCSD-EXU Extension Unit
Powers up to 85 more discussion devices for systems up to 245; built-in splitter with one trunk and two tap-offs, cascadable, 19-inch 1 RU.
- +85 Devices
- 245 System Maximum
- 19" 1 RU
CCS 1000 D system components
CCSD-EXU Extension Unit
Powers up to 85 more discussion devices for systems up to 245; built-in splitter with one trunk and two tap-offs, cascadable, 19-inch 1 RU.
- +85 Devices
- 245 System Maximum
- 19" 1 RU
Bosch CCSD-EXU Product Highlights
Explore the key capabilities of the Bosch CCSD-EXU System Extension Unit for larger CCS 1000 D systems.Up to 245 Devices
Expands a CCS 1000 D system to a maximum of 245 discussion devices.
85 More Devices
Each unit powers up to 85 additional discussion devices.
Built-in Splitter
One trunk and two tap-offs, installed at any point; cascade more units.
Short-Circuit Protection
A short on one output disconnects only that output; the unit stays powered.
Automatic Power Up
Switches on and off with the control unit, nothing to operate.
Rack or Tabletop
Same housing as the control unit: 19-inch, 1 RU, feet and brackets included.
Technical Specifications
Key specs
- Up to 85 more devices
- System up to 245 devices
- 1 trunk + 2 tap-offs, 40 devices each
- Built-in splitter, cascadable
- Short-circuit protection
- Powers on with the control unit
- 24 VDC supply included
- 19-inch, 1 RU, 4.12 kg
Supply voltage Adaptor | 100 to 240 VAC, 50/60 Hz |
Current Consumption voltage Adaptor | 1.9 A (100 VAC) to 1 A 240 (VAC) |
DC voltage Control Unit | 24 V, 6.0 A |
Maximum number of Discussion Devices for Control Unit (without Extension Unit) | 40 Discussion Devices per trunk 80 Discussion Device in total 24 V, Max 5.2 A (short-circuited protected) |
Discussion Device loudspeakers volume control | 15 steps of 1.5 dB (starting from -10.5 dB) |
Limit threshold level to unit | 12 dB above nominal level |
Gain reduction due to number of open microphones (NOM) | 1/SQRT (NOM) |
Sample rate | 44.1 kHz |
Frequency response | 30 Hz to 20 kHz |
Ethernet speed | 1 Gb/s |
Nominal input (85 dB SPL) | < 0.5% |
Max. input (110 dB SPL) | < 0.5% |
XLR nominal microphone input | -56 dBV |
XLR maximum microphone input | -26 dBV |
RCA nominal input | -24 dBV (+/- 6 dB) |
RCA maximum input | +6 dBV |
S/N | > 93 dBA |
Frequency response | 30 Hz to 20 kHz |
THD | <0.1% |
RCA nominal output | -24 dBV (+6/- 24 dB) |
RCA maximum output | +6 dBV |
S/N | > 93 dBA |
Frequency response | 30 Hz to 20 kHz |
THD | <0.1% |
Recording/ Playback (bit rate) | 64, 96, 128, 256 Kbit/sec |
Recording/ Playback (sample frequency) | 44.1 kHz |
Nominal output | 72 dB SPL |
Frequency response | 200 Hz to 16 kHz (acoustical) |
Gain range | Mute -10.5 to +12 dB |
SanDisk USB memory stick | Formatted with FAT32 file system. Maximum size: 128 GB. |
Dimensions including feet (H x W x D) | 45 x 440 x 200 mm (1.8 x 17.3 x 7.9 in) 19” wide, 1 RU high |
Height of feet | 5.5 mm (0.2 in) |
Mounting | Tabletop or 19 “ rack |
Material (top and base) | Painted metal |
Color (top and base) | Traffic black (RAL 9017) matt- gloss |
Rim front panel | Pearl light grey (RAL 9022) matt- gloss |
Weight (CCSD‑CURD) | Approx. 3.4 kg (7.5 lb) |
|
Operating temperature |
5 ºC to +45 ºC (+41 ºF to +113 ºF) |
|
Storage and transport temperature |
-40 ºC to +70 ºC (-40 ºF to +158 ºF) |
|
Relative humidity |
5% to 98% non-condensing |
Know before you buy
Quick answers about the CCSD-EXU, and how it compares.
When do I need a CCSD-EXU?
When you have more than 80 seats. Each extension unit powers up to 85 more devices, up to 245 in one system.
How is it connected?
Its cable plugs into the control unit or the previous extension unit. It has three outputs for devices and a loop-through for the next extension unit.
What is in the box?
Extension unit, mains cord, power supply, tabletop feet, 19-inch rack brackets, quick guide.
Does the camera follow the speaker?
Yes. With the optional Unear V51X network camera, the control unit steers the camera over the network to the seat whose microphone is on. When the microphone goes off, the camera returns to the room view. No operator is needed.
What do I need for a system?
A control unit (CCSD-CURD). One discussion device per seat: tabletop CCSD-DL2 or DS2, or flush-mounted CCSD-FDL and CCSD-FCML. For more than 80 seats, add a CCSD-EXU extension unit. Optional: the Unear V51X camera that follows the speaker.
