Bosch PAVIRO
PAVIRO Voice Alarm System Components
Core system
33 more components
You're viewing
PVA-2P500
2-Channel Power Amplifier
- 2 × 500 W Class-D output
- 100 V / 70 V loudspeaker lines
- Monitored and controlled from the controller
- Low power use with DC battery backup
- EN 54-16 certified
PVA-4CR12
System Controller
- 12 zones built in, expandable to 492
- 8 audio inputs routed to 4 audio channels
- Up to 16 call stations on 4 CST BUS ports
- Integrated two-channel message manager
- 100 priority levels and an 8000-event log
- EN 54-16 certified voice alarm controller
PVA-4R24
24-Zone Router
- Adds 24 loudspeaker zones per router
- Up to 20 routers per controller
- Routes the 4 audio channels to any zone
- Connects to the controller over CAN bus
- Supervised speaker lines with PVA-1WEOL modules
PVA-15CST
Call Station
- 15 programmable zone keys
- Gooseneck microphone for clear paging
- One RJ45 cable for audio, data and power
- Up to 4 call stations per CST BUS port
- Add keys with the PVA-20CSE extension
close
Bosch PAVIRO
PAVIRO Voice Alarm System Components
Core system
33 more components
You're viewing
PVA-2P500
2-Channel Power Amplifier
- 2 × 500 W Class-D output
- 100 V / 70 V loudspeaker lines
- Monitored and controlled from the controller
- Low power use with DC battery backup
- EN 54-16 certified
PVA-4CR12
System Controller
- 12 zones built in, expandable to 492
- 8 audio inputs routed to 4 audio channels
- Up to 16 call stations on 4 CST BUS ports
- Integrated two-channel message manager
- 100 priority levels and an 8000-event log
- EN 54-16 certified voice alarm controller
PVA-4R24
24-Zone Router
- Adds 24 loudspeaker zones per router
- Up to 20 routers per controller
- Routes the 4 audio channels to any zone
- Connects to the controller over CAN bus
- Supervised speaker lines with PVA-1WEOL modules
PVA-15CST
Call Station
- 15 programmable zone keys
- Gooseneck microphone for clear paging
- One RJ45 cable for audio, data and power
- Up to 4 call stations per CST BUS port
- Add keys with the PVA-20CSE extension
PAVIRO · Panel Overview

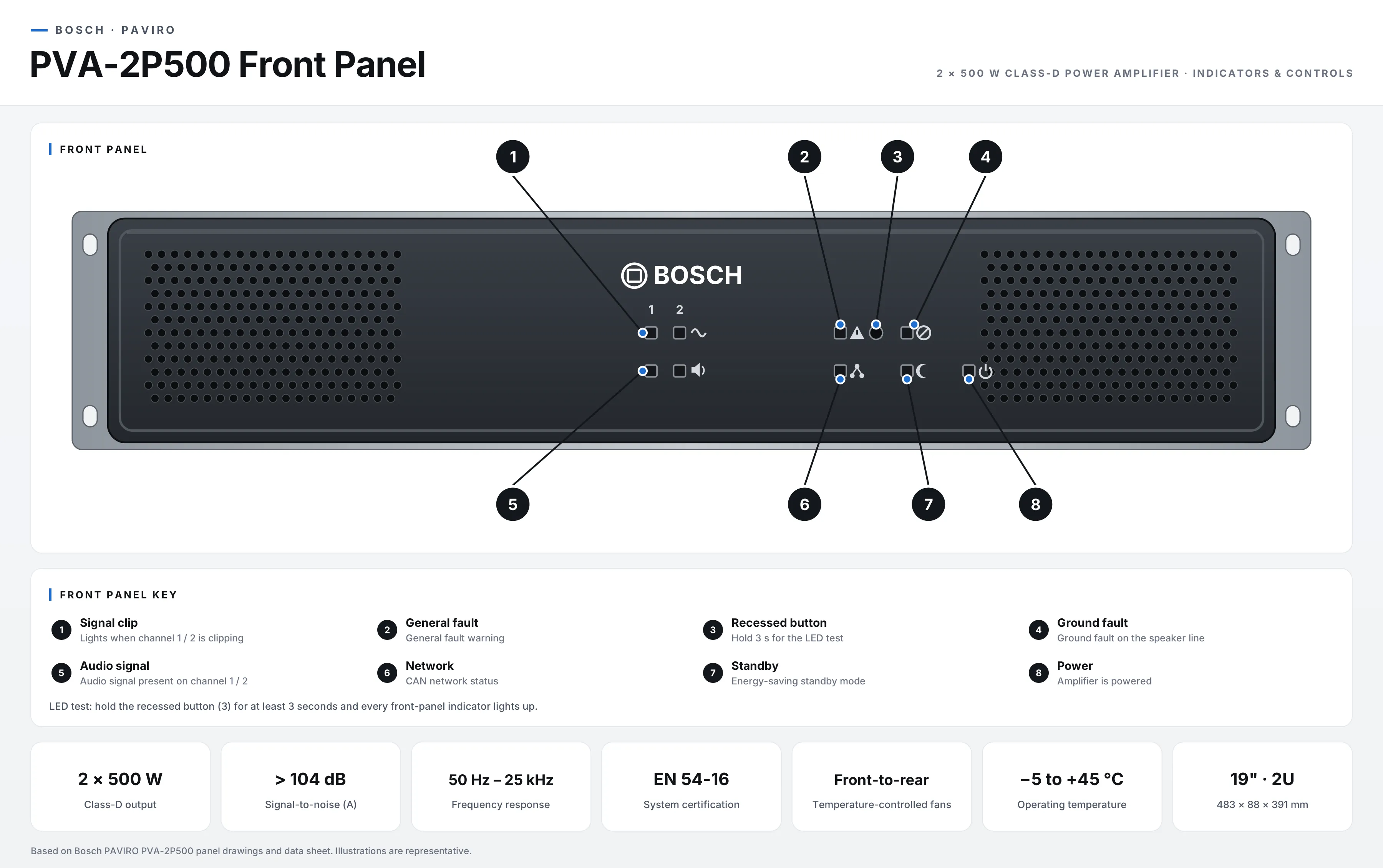

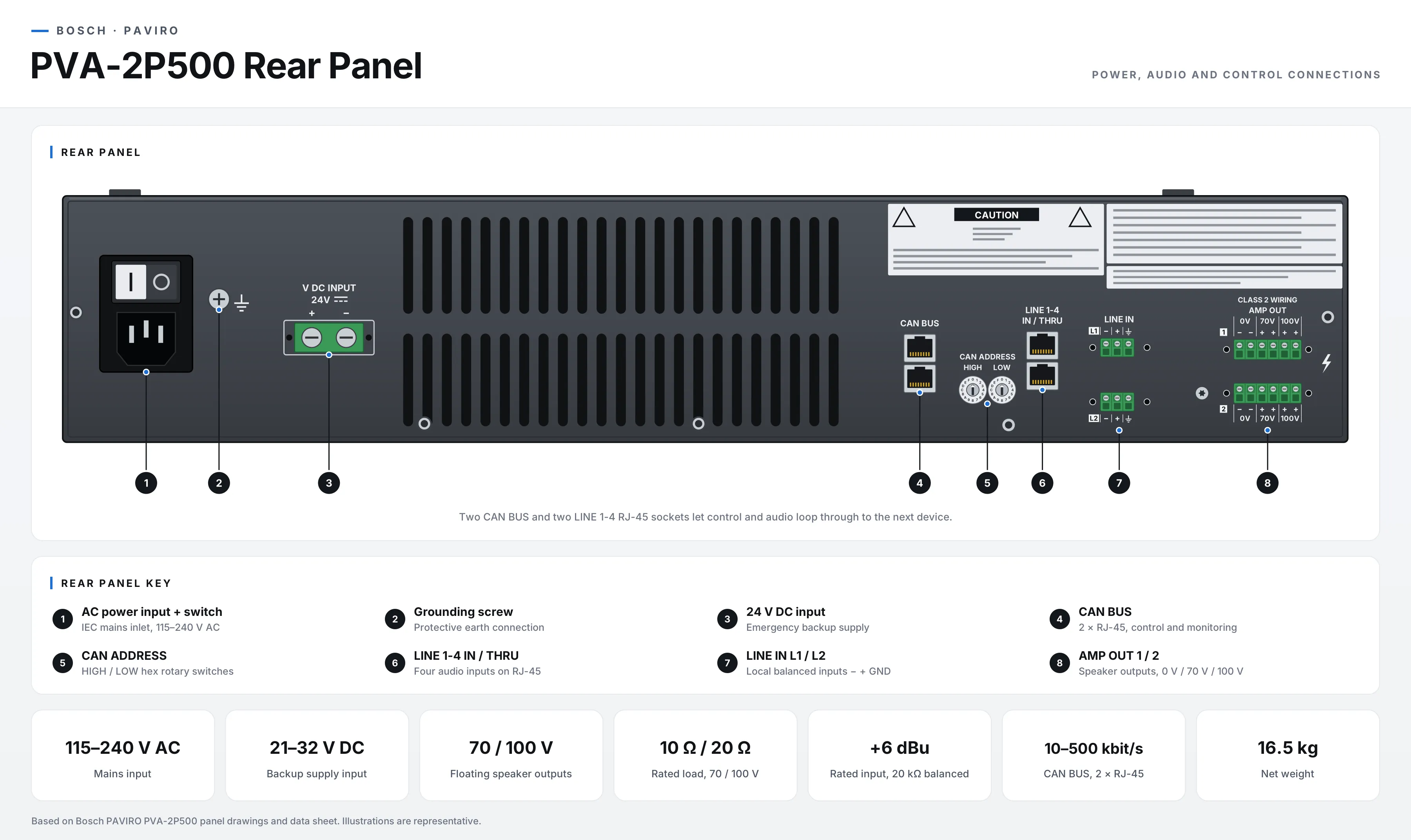

PVA-2P500 Front & Rear Panel
Switch between the front and rear panel, and click any image to view it full screen.
frontrear
Click image to enlarge
PAVIRO · Panel Overview
PVA-2P500 Front & Rear Panel
Switch between the front and rear panel, and click any image to view it full screen.
frontrear
Click image to enlarge
app 1app 2app 3app 4app 5
PAVIRO · Applications
Where PAVIRO Is Installed
Everyday paging, background music and EN 54-16 voice evacuation from one system. Browse the applications and open any one full screen.
Show Hospitals
Open full screen
View full screen
01 / 05HospitalsStaff paging, code calls and automatic voice evacuation across wards, ICU, theatres and OPD.
Show Airports
Open full screen
View full screen
02 / 05AirportsGate and boarding calls, terminal-wide announcements and phased evacuation of every concourse.
Show Shopping Malls
Open full screen
View full screen
03 / 05Shopping MallsZoned background music, promotions per floor and fast evacuation messages for crowds.
Show Oil and Gas Refineries
Open full screen
View full screen
04 / 05Oil & Gas RefineriesIntelligible alarms and paging over noisy process areas, control rooms and loading bays.
Show Commercial Plazas
Open full screen
View full screen
05 / 05Commercial PlazasLobby music, floor-by-floor paging and evacuation for multi-tenant towers and car parks.
app 1app 2app 3app 4app 5
PAVIRO · Applications
Where PAVIRO Is Installed
Everyday paging, background music and EN 54-16 voice evacuation from one system. Browse the applications and open any one full screen.
Show Hospitals
Open full screen
View full screen
01 / 05HospitalsStaff paging, code calls and automatic voice evacuation across wards, ICU, theatres and OPD.
Show Airports
Open full screen
View full screen
02 / 05AirportsGate and boarding calls, terminal-wide announcements and phased evacuation of every concourse.
Show Shopping Malls
Open full screen
View full screen
03 / 05Shopping MallsZoned background music, promotions per floor and fast evacuation messages for crowds.
Show Oil and Gas Refineries
Open full screen
View full screen
04 / 05Oil & Gas RefineriesIntelligible alarms and paging over noisy process areas, control rooms and loading bays.
Show Commercial Plazas
Open full screen
View full screen
05 / 05Commercial PlazasLobby music, floor-by-floor paging and evacuation for multi-tenant towers and car parks.
Key specs
- 2 x 500 W Class-D, 1,000 W total
- 70 V (10 Ω) or 100 V (20 Ω) floating outputs
- EN 54-16 and EN 54-4 certified
- Mains 115–240 V AC + 24 V DC battery backup
- 4 audio inputs on RJ-45, plus 2 Euroblock inputs
- CAN bus control, ground fault and line monitoring
- 50 Hz – 20 kHz… (see note), S/N > 104 dB
- 2U, 483 x 88 x 375 mm, 16.5 kg
Specifications
General
| Specification | Value |
|---|---|
| Model | PVA-2P500 |
| Order number | F.01U.298.641 |
| Product type | 2-channel power amplifier, voice evacuation |
| System | Bosch PAVIRO |
Output Power & Performance
| Specification | Value |
|---|---|
| Rated output power (1 kHz, THD ≤ 1%) | 2 x 500 W |
| Rated load impedance | 100V: 20 Ω (500 W) / 70V: 10 Ω (500 W) |
| Max RMS voltage swing (1 kHz, THD ≤ 1%, no load) | 100V: 110 V / 70V: 78 V |
| Voltage gain (ref. 1 kHz, fixed) | 70V: 33.2 dB / 100V: 36.2 dB |
| Frequency response (ref. 1 kHz, rated load, -3 dB) | 50 Hz – 25 kHz |
| Signal-to-noise ratio (A-weighted) | > 104 dB |
| Output noise (A-weighted) | < -62 dBu |
| Crosstalk (ref. 1 kHz) | < -85 dB |
| Maximum load capacitance | 2 µF |
| Output stage topology | Class-D, transformer, floating |
Inputs
| Specification | Value |
|---|---|
| Audio inputs | LINE IN 1–4 (RJ-45), LINE IN 1 or 2 (Euroblock, balanced) |
| Rated input voltage | +6 dBu |
| Max input level | +18 dBu (9.75 Vrms) |
| Input impedance (active balanced) | 20 kΩ |
Control & Monitoring
| Specification | Value |
|---|---|
| Control interface | CAN bus, 2 x RJ-45, 10 to 500 kbit/s |
| CAN address | Rear-panel selector switch |
| Ground fault detection | R < 50 kΩ |
| Monitoring | Temperature, watchdog, CAN bus and audio line monitoring; pilot tone and ground fault via PVA-4CR12 or PVA-4R24 |
| Configuration | IRIS-Net software, stored in non-volatile flash memory |
| Front indicators | Signal clip, fault, ground fault, audio signal, network, standby, power |
Power
| Specification | Value |
|---|---|
| Mains supply | 115–240 VAC ±10%, 50/60 Hz |
| Battery supply | 21–32 VDC |
| Power consumption, 230V AC (max -3dB / idle / standby) | 700 W / 21 W / 1.9 W |
| Power consumption, 120V AC (max -3dB / idle / standby) | 745 W / 18 W / 1.5 W |
| Power consumption, 24V DC (max -3dB / idle / standby) | 735 W / 16 W / 1.5 W |
| Inrush current | 2 A (1.3 A after five-second power cycle) |
| Mains fuse | T6.3A (internal) |
| DC fuse | 30A (internal) |
Protection
| Specification | Value |
|---|---|
| Protections | Audio input level limiter, RMS output power limiter, high temperature, DC, short circuit, mains undervoltage, DC supply undervoltage, inrush current limiter, ground fault |
Environmental
| Specification | Value |
|---|---|
| Cooling | Front-to-rear, temperature-controlled fans |
| Operating temperature | -5°C to +45°C (23°F to 113°F) |
| Storage temperature | -40°C to +70°C (-40°F to 158°F) |
| Humidity (non-condensing) | 5% – 90% |
| Altitude | Up to 2000 m |
Mechanical
| Specification | Value |
|---|---|
| Dimensions (H × W × D) | 88 × 483 × 375 mm (2RU) |
| Weight (net) | 16.5 kg |
| Mounting | Standalone; 19" rack |
| Color | Black with silver |
Certifications
| Category | Standard |
|---|---|
| Emergency (Europe) | EN 54-16, EN 54-4 |
| Emergency compliance | BS 5839-8 (UK), ÖNORM F 3033 (Austria) |
| Safety | EN 62368-1 |
| Immunity | EN 50130-4, EN 55103-2 (E1, E2, E3) |
| Emissions | EN 61000-6-3, ICES-003, FCC-47 Part 15B Class A |
| Maritime | EN 60945 |
| Conformity | CE/CPR, FCC, ICES, RCM, KCC, EAC, RoHS |
Parts Included
| Quantity | Component |
|---|---|
| 1 | PVA-2P500 power amplifier |
| 1 | Power cord 230V AC |
| 1 | Power cord 120V AC |
| 1 | Set of connectors |
| 1 | Set of feet |
| 1 | Installation manual |
| 1 | Important safety instructions |
Questions & answers
Know before you buy
Quick answers about the PVA-2P500, and how it compares.
Where does the PVA-2P500 fit?
The power amplifier of a Bosch PAVIRO system: 2 x 500 W for paging, background music and EN 54-16 voice evacuation, fed and controlled by the [PVA-4CR12] controller.
How much power does each channel get?
500 W per channel, 1,000 W in total, into 70 V (10 Ω) or 100 V (20 Ω) speaker lines. Each channel uses either the 70 V or the 100 V output, not both at once. It’s built for 70/100 V systems only, with no 4 Ω / 8 Ω drive. On battery power the output is limited by 3 dB.
How many speakers can I connect?
| Speaker tap | Per channel* | Total (2 channels) |
|---|---|---|
| 3 W | About 133 | About 266 |
| 6 W | About 66 | About 132 |
| 10 W | About 40 | About 80 |
| 15 W | About 26 | About 52 |
Does it keep working during a power failure?
Yes. It runs on 115–240 V AC mains and switches automatically to a 24 V DC battery input (21–32 V) if mains fails, so evacuation messages keep playing. Standby draws just 1.9 W, which saves battery capacity.
Does it need a controller?
For a certified evacuation system, yes. The [PVA-4CR12] sends it four audio channels on one RJ-45 cable and controls and supervises it over the CAN bus. With the CAN address set to 00, it can also run stand-alone as a 70/100 V amplifier with local Euroblock inputs.
What does it monitor?
Ground faults on the speaker outputs, overload, temperature, mains and battery voltage, the CAN bus link and its own processor. With the [PVA-4CR12] or [PVA-4R24] it also does pilot tone monitoring to catch a missing signal or broken line. Faults show on the front panel and in IRIS-Net.
How is it installed?
2U in a standard 19" rack. At 16.5 kg, use rack rails. Units can be stacked with the supplied feet. Cooling runs front-to-rear with temperature-controlled fans. A power-on delay can be set per amplifier in IRIS-Net, so a full rack doesn’t trip the breaker at switch-on.
How does a PAVIRO system fit together?
The [PVA-4CR12] is the brain: 4 audio channels, 12 zones, message manager and full supervision. It sends audio over one RJ-45 cable and controls [PVA-2P500] amplifiers (2 x 500 W) over the CAN bus. [PVA-4R24] routers add 24 zones each, up to 492 per controller. [PVA-15CST] call stations connect to its four call station ports, up to 16 in total. The whole system is certified to EN 54-16 for voice evacuation.
Who supplies Bosch PAVIRO in Pakistan, and what warranty do I get?
Electronic Security Company (ESCO) is the only authorized distributor of Bosch, Dynacord and Electro-Voice in Pakistan, so every PAVIRO product we supply is genuine and comes with a 3-year warranty. Warranty is carry-in: bring the unit to an ESCO office and after inspection it is repaired or replaced as needed.
We supply, design and install complete public address and voice evacuation systems for hospitals, airports, shopping malls, hotels, offices and industrial sites, with after-sales service nationwide. Prices are quoted per project: tell us your building, number of zones and fire alarm requirements and we will send a quote.
