DICENTIS Flush range
Modular, IP-based conferencing with cost-effective installation convenience
DICENTIS Flush range
Modular, IP-based conferencing with cost-effective installation convenience

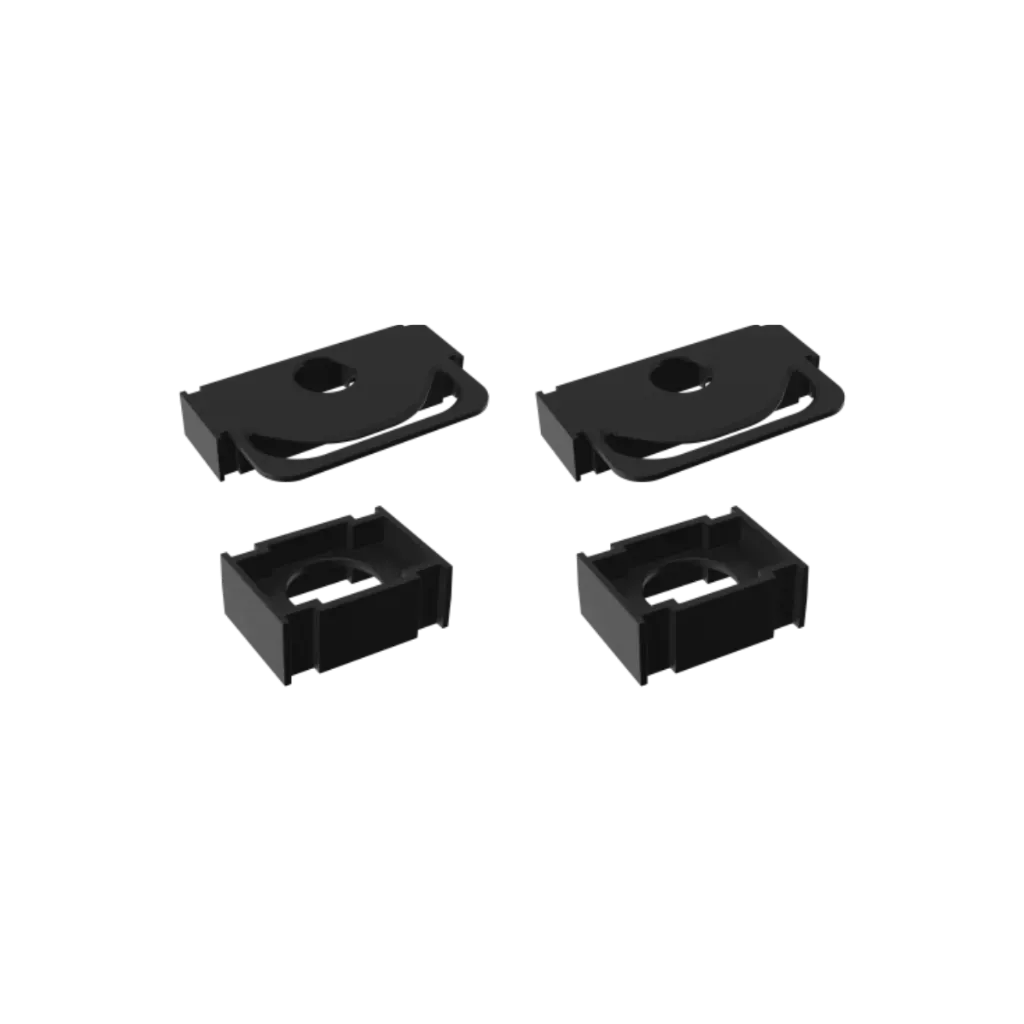

DCNM-FPT Flush Positioning Tools, 2 Sets
Everything you need to know about these DICENTIS flush positioning tools before specifying them for your project
The DCNM-FPT is used by installers to position DICENTIS flush-mount devices accurately in tables and desks during installation. It's an installation aid, not an operational part of the conference system.
Two sets of DCNM-FPT flush positioning tools, plus a template for drawing the loudspeaker cut-out.
It's designed for DICENTIS flush mount couplings, used to install flush-mount units such as the DCNM-FVP voting panel and DCNM-FSLP language selector.
It isn't required for the system to work, but it's recommended for flush installations. It makes positioning and loudspeaker cut-outs faster and more accurate, especially across many seats.
Electronic Security Company is the authorized distributor for Bosch, Dynacord and Electro-Voice systems across Pakistan. We supply, design and install complete conference and voting systems for parliaments, government offices, boardrooms and auditoriums, with genuine warranty support and after-sales service nationwide.
Bosch DICENTIS DCNM-FPT Flush Positioning Tools
The DICENTIS DCNM-FPT flush positioning tools make it easy to position flush-mounted DICENTIS devices accurately during installation. Each pack contains two sets of positioning tools for use with flush mount couplings, helping installers place voting panels, language selectors and other flush units neatly in conference tables and delegate desks.
A loudspeaker cut-out template is included with the tools, so the opening for the loudspeaker can be marked out quickly and precisely before cutting. The result is a clean, professional flush installation in parliaments, council chambers and boardrooms.
Professional Flush Installation Tools
Positioning tools designed for installing DICENTIS flush-mount devices accurately in conference tables and delegate desks.
Easy Device Positioning
Makes it simple to place flush-mounted elements correctly before fixing them in place.
Loudspeaker Cut-Out Template
Includes a template for marking out the loudspeaker opening quickly and precisely before cutting.
Two Sets per Pack
Each order includes two sets of positioning tools, ready for use on installation projects.
Designed for Flush Mount Couplings
Made to work with DICENTIS flush mount couplings for a consistent fit across the system.
Faster Multi-Seat Installations
Speeds up marking and positioning when fitting flush units across many seats in council chambers and parliaments.

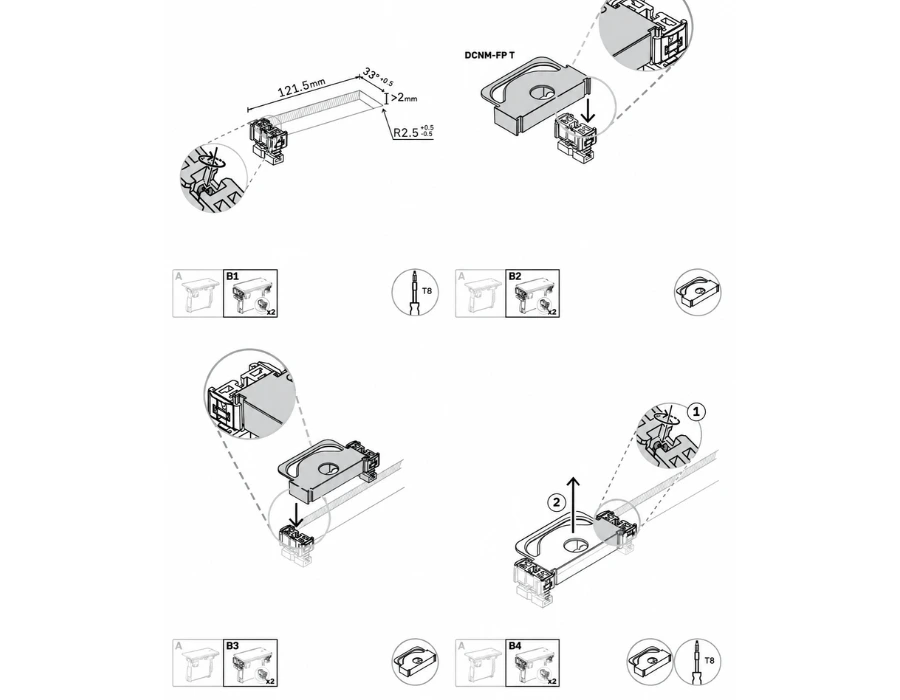

Easy 4-Step Flush Installation
Step 1: Mark the position
Mark the mounting position for the flush coupler on the table or panel, following the spacing shown in the installation drawing.
Step 2: Attach the positioning tool
Clip the DCNM-FPT positioning tool onto the DCN-FCOUP flush coupler. The tool holds the coupler in exactly the right position.
Step 3: Fix the coupler in place
With the tool still attached, screw the coupler firmly into the table surface. This keeps every unit perfectly aligned.
Step 4: Remove the tool
Lift the positioning tool off the fixed coupler. The coupler is now ready for the flush-mount device, and the tool can be reused at the next seat.
Enhanced User Experience
High-quality loudspeakers and microphones deliver clear audio, even when active together. Shock-mount design reduces noise, while identification secures voting. Language selection is automated for participant convenience.
Easy Integration
Flush modules work seamlessly with DICENTIS tabletop devices and the interpreter desk. Settings are adopted instantly without restart, while the server-based system supports third-party apps, cloud services, and remote maintenance.
Easy, Cost-Effective Installation
The DICENTIS Flush Range offers a modular design for any meeting type. It supports future upgrades, uses existing IP and PoE, and installs quickly with a click-to-fit mechanism. Sharing the Bosch DCN footprint, it allows easy replacement. Dual-seat setups can host up to four delegates, saving space and cost.
Versatile Microphone Options
Compact flush microphones fit where space is limited. The audio interface connects third-party microphones, supports extra inputs, and provides 48 V phantom power.
Structured Meetings
The modular design empowers specifiers and installers to tailor the system to different meeting types. With dual-seat setups supporting up to four delegate positions, meetings can be organized efficiently while saving space and cost.
Convenient Language Selection
Headphone language selection can be automated, ensuring participants quickly access their preferred interpretation channel. Seamless integration with the DICENTIS interpreter desk provides a fully ISO-compliant interpretation solution.
Parliamentary-Style Voting
Identification-based access allows controlled voting functionality, preventing fraud and ensuring accurate results. Voting can be managed directly through the DICENTIS Flush modules for structured decision-making.
Quick Identification
Each participant’s identification enables secure access to system features such as voting and language selection. This ensures smooth authentication and prevents unauthorized use during sessions.
Customize your DICENTIS Flush in wood, stone, metal or RAL color
Match DICENTIS Flush devices to any interior. System integrators, architects and end users can order custom finishes from the RAL Classic and RAL Design color palettes, or choose from a wide range of wood, stone and metal designs.
Lets Talk!
Get in touch for a free consultation, survey, pricing and demonstration session.
Specifications: Bosch DICENTIS DCNM-FPT
General
| Specification | Value |
|---|---|
| Model | DCNM-FPT |
| Order number | F.01U.393.974 |
| Product type | Flush positioning tools |
| System | DICENTIS Conference System |
| Use | Positioning flush-mount devices with flush mount couplings |
| Included template | Loudspeaker cut-out template |
Mechanical
| Specification | Value |
|---|---|
| Weight | 40 g (0.09 lb) |
| Color | RAL 9017 Traffic Black |
Environmental
| Specification | Value |
|---|---|
| Standard | IEC 60721: storage (1K3), transport (2K2), operation (3K4) |
| Storage temperature | -5°C to 45°C (23°F to 113°F) |
| Transport temperature | -30°C to 70°C (-22°F to 158°F) |
| Relative humidity (operating) | 5% – 90%, non-condensing |
Parts Included
| Quantity | Component |
|---|---|
| 2 | DCNM-FPT flush positioning tools (2 sets) |
