DS-2CD2T63G0-I8 4mm

DS-2CD2T63G0-I8 4mm

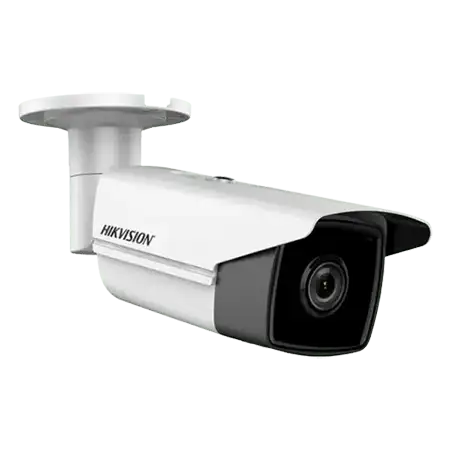

Hikvision DS-2CD2T63G0-I8 6MP Outdoor WDR Fixed Bullet Network Camera, 3072 × 2048@20fps, 1/2.9" Progressive Scan CMOS, 120dB WDR, 3D-DNR, BLC, IP67, 80m EXIR Range, Horizontal FOV: 78°, Vertical FOV: 50°, Diagonal FOV: 97°, H.265+, Motion detection, Video Tampering Alarm, Exception, 128GB SD Card, 12 VDC, PoE Support .

Resolution

6MP (3072 × 2048)

Frame Rate

50Hz: 20 fps (3072 × 2048), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
60Hz: 20 fps (3072 × 2048), 30fps (2560 × 1440, 1920 × 1080, 1280 × 720)

IR Range

Up to 80m IR Range

Video Compression

Main stream: H.265/H.264

Sub-stream: H.265/H.264/MJPEG

Smart Features

120dB WDR, 3D DNR, BLC, ROI, Day & Night with ICR

Interface

Built-in SD Card Slot (Up to 128G)

Reset Button

Protection Level

IP67 Water and Dust Resistant

Smart Event

Motion detection, Intrusion Detection, Face detection. Exception

Line crossing detection, Video tampering alarm, Linkage Method

Camera

Image Sensor

1/2.9" Progressive Scan CMOS

Min. Illumination

Color: 0.01 lux @(F1.2, AGC ON), 0.028 lux @(F2.0, AGC ON), 0 lux with IR

Shutter Speed

1/3 s to 1/100,000 s

Slow Shutter

Yes

Day & Night

IR Cut Filter

Digital Noise Reduction

3D DNR

WDR

120dB

3-Axis Adjustment

Pan: 0° to 360°, tilt: 0° to 100°, rotate: 0° to 360°

Lens

Focal Length

4mm

Aperture

F2.0

Focus

Fixed

FOV

Horizontal  FOV: 78°, Vertical FOV: 50°, Diagonal FOV: 97°

Lens Mount

M12

IR

IR Range

Up to 80 m

Wavelength

850nm

Compression Standard

Video Compression

Main stream: H.265 / H.264
Sub-stream: H.265 / H.264 / MJPEG
Third stream: H.265 / H.264

H.264 Type

Main Profile / High Profile

H.264+

Main stream supports

H.265 Type

Main Profile

H.265+

Main stream supports

Video Bit Rate

32 Kbps to 16Mbps

Smart Feature-set

Smart Event

Line crossing detection, Intrusion detection, Face detection

Basic Event

Motion detection, Video tampering Alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

 Linkage Method

Trigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email

Trigger notification: HTTP, ISAPI, Email

Region of Interest

Support 1 fixed region for main stream and sub-stream


Max. Resolution

3072 × 2048



Main Stream

50Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)

60Hz: 20 fps (3072 × 2048, 3072 × 1728, 2944 × 1656), 30fps (2560 × 1440, 1920 × 1080, 1280 × 720)



Sub-Stream

50Hz: 25fps (640 × 480, 640 × 360, 320 × 240)

60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)



Third Stream

50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288)

60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)

Image Enhancement

BLC / 3D DNR / HLC

Image Setting

Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser

Target Cropping

No

Day/Night Switch

Day / Night / Auto / Schedule

Network

Network Storage

Support Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS, SMB/CIFS), ANR

Protocols

TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS

General Function

Anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening

Security

Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2

API

ONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK

Simultaneous Live View

Up to 6 channels

User/Host

Up to 32 users

3 levels: Administrator, Operator and User

Client

iVMS-4200, Hik-Connect, Hik-Central

Interface

Video Output

No

Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port

On-board Storage

Built-in micro SD / SDHC / SDXC slot, up to 128 GB

SVC

H.264 and H.265 encoding support

Reset Button

Yes

General

Operating Conditions

-30 °C to +60 °C (-22 °F to + 140 °F)
Humidity 95% or less (non-condensing)

Power Supply

12 VDC ± 25%

Power Consumption and Current

12 VDC, 0.9 A, max. 10W

PoE: (802.3af, 36 V to 57 V), 0.4 A to 0.2 A, max. 12 W

Protection Level

IP67

Material

Metal

Dimensions

Camera: Φ 104.8 × 299.7 mm (Φ 4.1" × 11.8")
Package: 386 × 156 × 155 mm (15.2" × 6.1" × 6.1")

Weight

Camera: 1200 g (2.7 lb.)
