Resolution

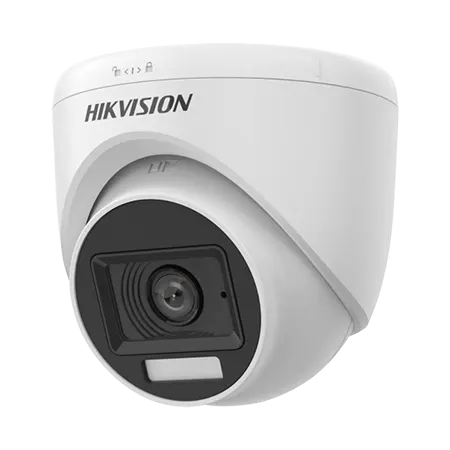

5MP (2960 (H) × 1665 (V)) 3K Dual Light Audio Indoor Fixed Turret Camera
IR Range
Up to 20 m IR distance for bright night imaging
Frame Rate
3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps@25fps
White Light
Up to 20 m white light distance for bright night imaging
Video Output Mode
4 in 1 Video Output (Switchable TVI/AHD/CVI/CVBS)
Field Of View
Horizontal FOV: 83°, Vertical FOV: 48°, Diagonal FOV: 102°
|
Camera |
|
|
Image Sensor |
3K CMOS |
|
Max. Resolution |
2960 (H) × 1665 (V) |
|
Min. Illumination |
0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
|
Shutter Time |
PAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s |
|
Day & Night |
ICR |
|
Angle Adjustment |
Pan: 0 to 360°, Tilt: 0 to 75°, Rotation: 0 to 360° |
|
Signal System |
PAL/NTSC |
|
Lens |
|
|
Lens Type |
3.6 mm fixed focal lens |
|
Focal Length & FOV |
3.6 mm, horizontal FOV: 83°, vertical FOV: 48°, diagonal FOV: 102° |
|
Lens Mount |
M12 |
|
Illuminator |
|
|
Supplement Light Type |
White Light, IR |
|
Supplement Light Range |
IR: Up to 20 m White Light: Up to 20 m |
|
Image |
|
|
Image Settings |
Brightness, Sharpness, Smart IR |
|
Frame Rate |
TVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps AHD: 5 MP@20 fps, 4 MP@25 fps/30 fps CVI: 4 MP@25 fps/30 fps CVBS: PAL/NTSC |
|
Day/Night Mode |
IR/White Light |
|
Wide Dynamic Range (WDR) |
Digital WDR |
|
Image Enhancement |
Yes |
|
White Balance |
Auto/Manual |
|
AGC |
Yes |
|
Interface |
|
|
Video Output |
Switchable TVI / AHD / CVI / CVBS |
|
General |
|
|
Material |
Plastic |
|
Dimension |
84.6 mm × Ø85.02 mm (3.33" × Ø3.35") |
|
Weight |
Approx. 160 g (0.35 lb.) |
|
Operating Condition |
-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation) |
|
Communication |
HIKVISION-C |
|
Language |
English |
|
Consumption |
Max. 2.9 W |
