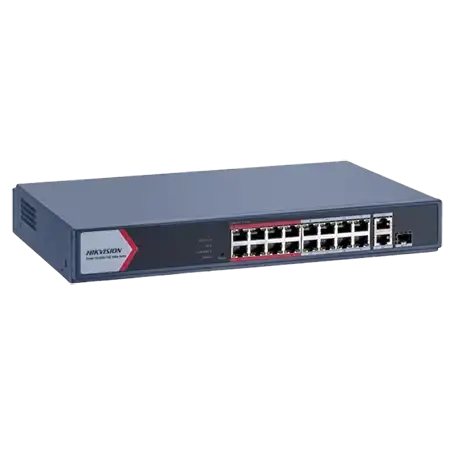

DS-3E1318P-EI/M

Hikvision DS-3E1318P-EI/M 16 Port Fast Ethernet Smart POE Switch, 16 × 10/100 Mbps PoE port,1 × Gigabit combo,1 × Gigabit RJ45 port, IEEE 802.3at/af standard for PoE ports Network topology management, alarm push, network health monitor, 6 KV surge protection for PoE ports, MAC Address Table: 16 K, Switching Capacity: 9.2 Gbps, Packet Forwarding Rate: 6.84 Mpps, Internal Cache: 4 Mbits, PoE Power Budget: 130 W, Link Aggregation, PoE Watchdog, IEEE 802.3af / IEEE 802.3at PoE Standard, 100-240 VAC.

Rs. 0.00 0.0 PKR Rs. 0.00

This combination does not exist.

Add to Cart

Add to wishlist Compare

Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

Description

Smart PoE Switch

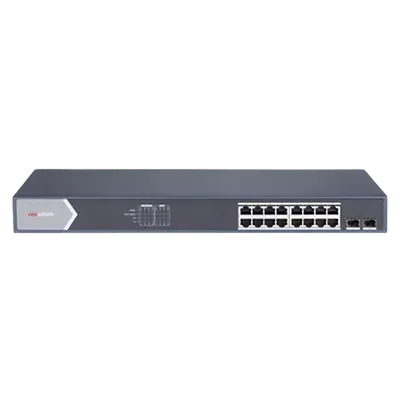

Hikvision DS-3E1318P-EI/M 16 Port Fast Ethernet Smart POE Switch

Ports

16 × 10/100 Mbps PoE port,1 × Gigabit combo,1 × Gigabit RJ45 port.

PoE Standard

IEEE 802.3at/af standard for PoE ports.

PoE Power Budget

Total PoE Power Budget 130W

Network Parameters

MAC Add. Table: 16K, Switching Capacity: 9.2 Gbps, Packet Forwarding Rate: 6.84 Mpps

Software Function

Alarm push, network health monitor, Link Aggregation, PoE Watchdog

General

Shell

Metal material

Net Weight

1.8 kg (4.0 lb)

Gross Weight

3.0 kg (6.6 lb)

Dimensions (W × H × D)

335.00 mm × 44.50 mm × 226.00 mm (13.19'' × 1.75'' × 8.90'')

Operating Temperature

0 °C to 45 °C (32 °F to 113 °F)

Storage Temperature

-40 °C to 85 °C (-40 °F to 185 °F)

Operating Humidity

5% to 95% (no condensation)

Relative Humidity

5% to 95% (no condensation)

Power Supply

100~240 V AC, 50/60 Hz, Max. 2.5 A

Installation Mode

Rack (equipped with mounting ears)

Max. Power Consumption

150 W

Power Consumption in Idle

20 W

Surge Protection

6 kV

Network Parameters

Ports

16 × 10/100 Mbps PoE port,1 × Gigabit combo,1 × Gigabit RJ45 port

MAC Address Table

16 K

Switching Capacity

9.2 Gbps

Packet Forwarding Rate

6.84 Mpps

Internal Cache

4 Mbits

PoE Power Supply

PoE Standard

IEEE 802.3af, IEEE 802.3at

PoE Power Pin

8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)

PoE Port

PoE: Ports 1 to 16

Max. Port Power

30 W

PoE Power Budget

130 W

Software Function

Long Range

Ports 1 to 16: up to 300 m.

Long range performance may vary depend on camera model or cable condition.

VIP Port

Ports 1 to 8: data on VIP ports is preferentially forwarded when bandwidth resources are insufficient.

Link Aggregation

Link aggregation is used to aggregate multiple physical ports to form a logical port for load balancing, bandwidth expansion, and port protection.

Support static link aggregation. Support 1 aggregation group.

PoE Watchdog

Ports 1 to 16: auto detect and restart the cameras that do not respond.

HPP

Support one-click activation and remote management via Hik-Partner Pro. Functions supported:

Display the port rate.

Display the port bandwidth utilization rate.

Display the PoE power usage.

Display topology information.

Display the alarm status.

Restart ports and devices.

Enable port long-rage mode.

Remotely upgrade the device.

System Maintenance

Support remote upgrade, default parameter restoration, logs viewing, and basic network parameter configuration.

Approval

EMC

CE-EMC (EN 55032: 2015+A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013+A1: 2019, EN 50130-4: 2011+A1: 2014, EN 55035: 2017+A11: 2020), IC (ICES-003: Issue 7:2020), RCM (AS/NZS CISPR 32: 2015)

Safety

UL (UL 60950-1), CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014+A11: 2017)

Chemistry

CE-RoHS (2011/65/EU)
