DS-3E2500-H series supports the combination of "Ethernet
port + optical port" to meet networking requirements of various scenarios,
which is convenient for users to build a flexible network. It offers 24-port,
and 48-port access and all ports support Gigabit wire speed forwarding
capabilities to meet users' needs.
·
The virtualization technology allows each slave device in the
stack to serve as the backup of the master, creating control and data link
redundancy, as well as uninterrupted layer-3 forwarding. This improves the
reliability, avoids unplanned business downtime and serves to improve overall
performance. When the master device fails, traffic remains uninterrupted.
·
Support ARP Detection, which can prevent hackers or attackers
from implementing "ARP spoofing attacks" through ARP packets. Support
IP Source Guard, which can prevent illegal address spoofing including MAC
spoofing, IP spoofing, MAC/IP spoofing, and DoS attacks. Support DHCP Snooping,
which can prevent private DHCP servers and ensure the authenticity and
consistency of the DHCP environment. Support port security features, which can
prevent MAC address-based attacks and realize traffic permit/limit based on a
MAC address.
·
Support speed limit on port and traffic to prevent malicious
invasion of network bandwidth and provide multiple granular management tools.
Support SP (Strict Priority), WRR (Weighted Round Robin), and SP+WRR queue
scheduling algorithms, and support multi-priority data transmission. Support
rich IPv6 services and multiple IPv6 management tools.
·
Support CLI command line, Web network management, and Telnet,
making device management more convenient. And support SSH2.0 and other
encryption methods, making management more secure. Support remote upgrade of
devices through FTP and TFTP, SNMP v1/v2c/v3
·
Energy-saving design greatly reduces device power consumption
and trouble spots. Radiation is reduced to reach the standard for household
electrical appliances and is harmless to humans.
|
Service
ports
|

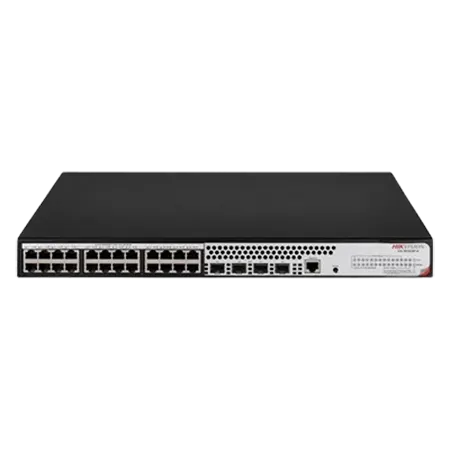

24×10/100/1000BASE-T
ports (POE+), 4×1000Base-X SFP ports.
|
|
|
Switching
capacity
|
Whole-Device
Performance: 56 Gbps
Port
Performance: 56 Gbps
|
|
|
Packet
forwarding rate
|
Whole-Device
Performance: 41.66 Mpps
Port
Performance: 41.66 Mpps
|
|
|
Management
port
|
1
Console port
|
|
|
Electrical
port attribute
|
Half-duplex,
full-duplex, and auto-negotiation MDI/MDI-X
|
|
|
Dimensions
(W×D×H) (mm）
|
440×260×44
|
|
|
Input
voltage
|
AC：100V～240V
AC,
50/60Hz;
Maximum
voltage range: 90V to 264V,47Hz to 63Hz
|
|
|
POE
|
POE+
with the maximum 30w output power per port
|
|
|
Power
consumption
|
MAX:
448W (POE: 370W)
|
|
|
Weight
|
≤ 4.5kg
|
|
|
Operating
temperature
|
-5ºC
to 45ºC
|
|
|
Operating
humidity
|
10%
RH to 95% RH, non-condensing
|
|
|
Ethernet
functions
|
LLDP
Static
MAC configuration
Limit
of number of MAC addresses to be learned (up to 8K) Port mirroring and
traffic mirroring
Port
aggregation (up to 24 groups and 8 ports for each group) Port isolation
STP / RSTP / MSTP
IEEE
802.3ad (dynamic link aggregation) and static port aggregation
|
|
|
VLAN
|
802.1Q
(up to 4K VLAN)
Protocol-based
VLAN
MAC-based
VLAN
GUEST
VLAN
VLAN
mapping
MVRP
|
|
|
IP
routing
|
Static
routing
|
|
DHCP
|
DHCP
Relay
DHCP
Client
DHCP
Snooping
|
|
Multicast
|
IGMP
V1/V2/V3 snooping
PIM
Snooping
Multicast
VLAN
IPv6
multicast setting
|
|
QoS
|
SP/WRR/SP+WRR
queue scheduling
802.1p
and DSCP priority mapping
Port
speed limit
|
|
ACL
|
ACL
on Layer 2, Layer 3 and Layer 4
IPv4
and IPv6 ACLs
VLAN
ACL
|
|
IPv6
|
IPv6
static routing and dual-stack
DHCPv6
Client and DHCPv6 Snooping
ND
and PMTU
IPv6
Ping, IPv6 Telnet, IPv6 SSHv2, and IPv6 domain name resolution
|
|
Reliability
|
Ethernet
OAM
DLDP
Smart
Link Monitor Link
|
|
Security
|
Hierarchical
user management and password protection
SSH
for a secure encrypted channel for user login
Specific
IP address based FTP logging and password mechanism
Prevent
attacks from ARP, unknown multicast packet, broadcast packet, unknown unicast
packet, TTL=1 packet, and protocol packet
MAC
address limit
IP+MAC+PORT
binding
IEEE
802.1x
Radius
and AAA
SNMPv3
Broadcast
suppression
|
|
Management
Maintenance
|
Command line configuration via console / AUX Modem / Telnet / SSH
Uploading
and downloading of FTP, TFTP, and Xmodem, and SFTP files
SNMP
V1/V2c/V3
sFlow
NQA
NTP
clock
System
operating logs
|
