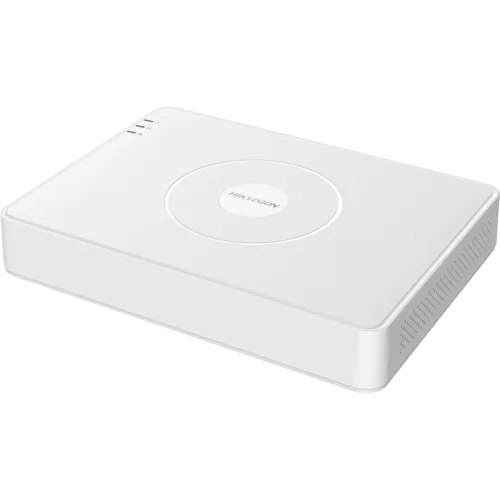

DS-7116HGHI-M1

Hikvision DS-7116HGHI-M1 16-ch 720p Mini 1U H.265 DVR, Deep learning based human and vehicle targets classification of Motion Detection 2.0, Support Audio via coaxial cable, 2-ch (up to 18-ch) IP Video Input, Total Bandwidth: 96 Mbps, 1 SATA interface.Up to 1080p Lite@15 fps encoding capability, 12 VDC, 1.6 A.

https://www.esco.pk/web/image/product.template/23956/image_1920?unique=471c1cd

Rs. 0.00 0.0 PKR Rs. 0.00

Not Available For Sale

This combination does not exist.

Add to Cart
Add to wishlist Compare

Please get in touch for pricing & availability.

Contact Us
Hikvision
Type: Turbo HD
DVR Series: 7100HGH
Channels: 16-32 Ch
SATA Interfaces (HDD Slots): 1 HDD Slot

Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.

​

Digital Video Recorder

Hikvision 16-ch DVR, Deep learning based human & vehicle targets classification

Video Compression

H.265 Pro+ / H.265 Pro video compression

Encoding Resolution

Encoding ability up to 1080p lite @ 15 fps

Video Input

5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)

Video Output

 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz VGA/HDMI Output

IP Cameras

Up to 18 network cameras can be connected on Enhanced IP Mode

Motion Detection 2.0

Human/Vehicle Analysis

Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;

Quick search by object or event type is supported;

Recording

Video Compression

H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264

Encoding Resolution

For 1080p stream access: 1080p Lite/720p Lite
For 720p stream access: 720p / WD1

For standard definition stream access: WD1 / 4CIF / VGA / CIF

Frame Rate

Main stream:

For 1080p stream access: 1080p Lite/720p Lite / WD1 / 4CIF / VGA / CIF@15 fps

For 720p stream access: 720p / WD1 / 4CIF / VGA / CIF@15 fps

Video Bitrate

32 Kbps to 4 Mbps

Stream Type

Video, Video & Audio

Audio Compression

G.711u

Audio Bitrate

64 Kbps

Video and Audio

IP Video Input

2-ch (up to 18-ch)

Up to 5 MP resolution

Support H.265+ / H.265 / H.264+ / H.264 IP cameras

Analog Video Input

16-ch

BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection

HDTVI Input

1080p25, 1080p30, 720p25, 720p30

AHD Input

1080p25, 1080p30, 720p25, 720p30

HDCVI Input

1080p25, 1080p30, 720p25, 720p30

CVBS Input

Support

HDMI Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

VGA Output

1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz

Video Output Mode

HDMI/VGA simultaneous output

Audio Input

1-ch RCA (2.0 Vp-p, 1 KΩ)

16-ch via coaxial cable

Audio Output

1-ch, RCA (Linear, 1 KΩ)

Synchronous playback

16-ch

Network

Total Bandwidth

96 Mbps

Network Protocol

TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, UPnP™, HTTPS

Remote Connection

128

Network Interface

1, RJ45 10/100 Mbps self-adaptive Ethernet interface

Auxiliary Interface

SATA

1 SATA interface

Capacity

Up to 10 TB capacity for each disk

USB Interface

Rear panel: 2 × USB 2.0

General

Power Supply

12 VDC, 1.6 A

Consumption

≤ 7 W (without HDD)

Working Temperature

-10 °C to 55 °C (14 °F to +31 °F)

Working Humidity

10% to 90%

Dimension (W × D × H)

285 × 210 × 45 mm (11.2 × 8.3 × 1.8 inch)

Weight

≤ 1.8 kg (without HDD, 4.0 lb.)
