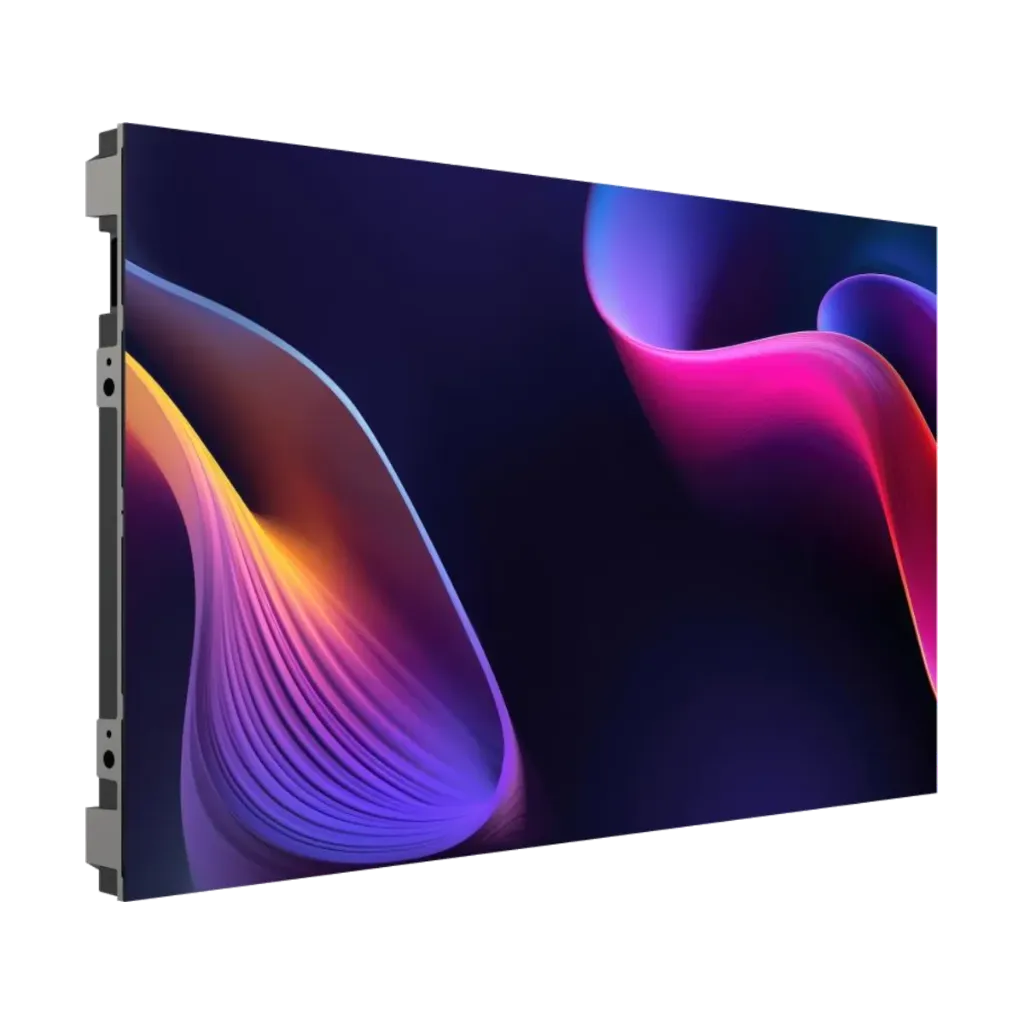

DS-D4012BW-2FC/A
P1.2 indoor LED module, 300 × 168.75 mm
- 1.25 mm pitch, 240 × 135 pixels
- 600 cd/m², 3840 Hz refresh
- 2 × 2 modules per 600 × 337.5 mm cabinet
- Front maintenance for all components

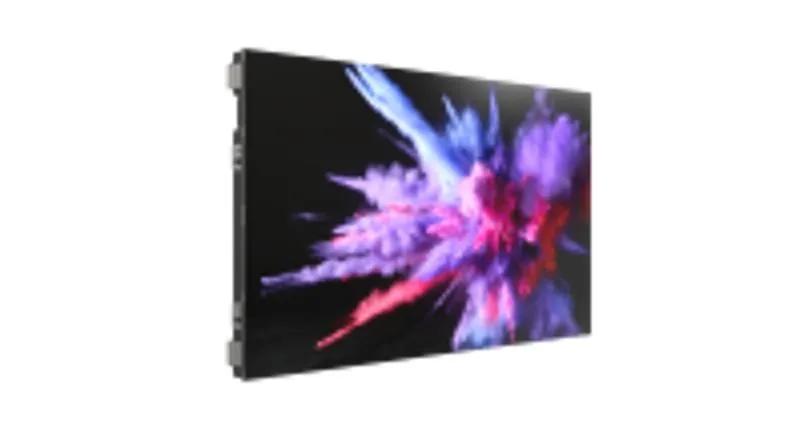

DS-D4012BW-2FC/A
P1.2 indoor LED module, 300 × 168.75 mm
- 1.25 mm pitch, 240 × 135 pixels
- 600 cd/m², 3840 Hz refresh
- 2 × 2 modules per 600 × 337.5 mm cabinet
- Front maintenance for all components
Key specs
- P1.2 indoor LED module
- Pixel pitch 1.25 mm
- Module 300 × 168.75 mm, 240 × 135 pixels
- Brightness 600 cd/m²
- Refresh rate 3840 Hz, grey level 16 bit
- Flip-chip COB
- 4 modules per DS-D40W-2F cabinet structure
- Power max. ≤ 300 W/m² (600 cd/m²), average ≤ 100 W/m²
- Front maintenance for all components
| Product | |
|---|---|
| Product Type | Fine Pixel Pitch Indoor Full-color LED Display |
| Cabinet | |
| Pixel Configuration | Flip-chip COB |
| Pixel Pitch Category | P1.2 |
| Pixel Pitch | 1.25 mm |
| Pixel Density | 640000 dots/m² |
| Modules Component | 2 × 2 |
| Dimension (W × H × D) | 600 mm × 337.5 mm × 29.3 mm |
| Resolution | 480 × 270 |
| Area | 0.2025 m² |
| Weight | 3.4 kg |
| Cabinet Material | Aluminium die casting |
| Maintenance Method | Front maintenance for all components |
| Module | |
| Dimensions | 300 mm × 168.75 mm |
| Module Resolution | 240 × 135 |
| Display | |
| White Balance Brightness | 600 cd/m² |
| Color Temperature | 3000 K to 10000 K adjustable |
| Viewing Angle | 160°(H)/160°(V) |
| Contrast Ratio | 15000:1 |
| Color Uniformity | ≤ ± 0.003Cx, Cy |
| Brightness Uniformity | ≥ 97% |
| Processing Performance | |
| Driving Method | Constant current driving |
| Scanning Amount | 60 |
| Frame Frequency | 60 Hz |
| Refresh Rate | 3840 Hz |
| Grey Level | 16 bit |
| Power | |
| Max. Consumption | ≤ 300 W/m² (600 cd/m²) |
| Average Consumption | ≤ 100 W/m² |
| Input Voltage | 100 to 240 VAC ± 10% |
| Working Environment | |
| Working Temperature | -10 °C to 40 °C |
| Working Humidity | 10% RH to 90% RH (without condensation) |
| General | |
| Net Weight | 3.4 kg |
| Optional | |
| DS-1NP6UEC0 | CAT6, U/UTP, 24AWG, CU cable |
| DS-D4012BW-2FC/M | Module |
| DS-D40BW-2FC/R | Receiving Card |
| DS-D40 W-2F/H | HUB |
| DS-D40 W-2F/PC | Power Cable |
Know before you buy
Quick answers about the DS-D4012BW-2FC/A, and how it compares.
How many modules do I need?
Divide the screen width by 0.3 m and the height by 0.16875 m. For example, a 2.4 m × 1.35 m screen takes 8 × 8 = 64 modules, 1920 × 1080 pixels (2.07 MP). Our engineers size it for your wall and add the cabinet structures and controller.
What else does an LED screen need?
DS-D40W-2F cabinet structures (one per four modules) with their receiving card, HUB and power parts, an LED controller, a wall bracket or frame, power and network cabling, and installation. See What you need above; our engineers prepare the full BOQ.
Can it be used outdoors?
No, it is an indoor module (600 cd/m²). For outdoor screens use our outdoor LED modules, P3 to P8, IP65 front.
How much power does it use?
Up to 300 W/m² (600 cd/m²) and about 100 W/m² on average (Hikvision figures). Our engineers size the power and the cabling for the whole screen.
