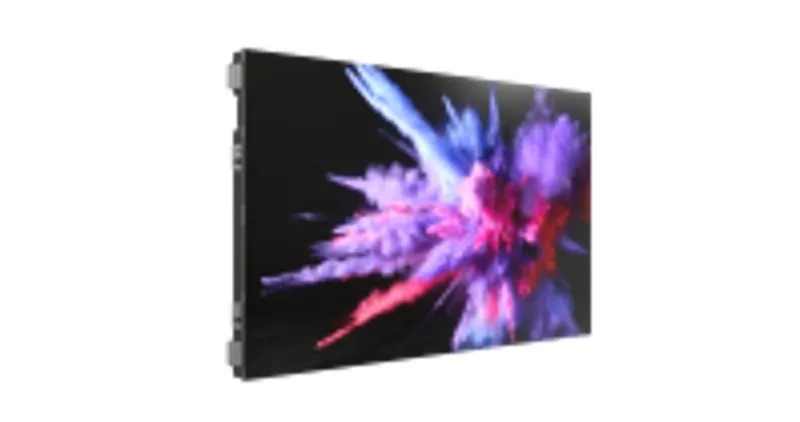

DS-D4015BW-2FC
P1.5 indoor LED display cabinet, 600 × 337.5 mm
- 1.5625 mm pitch, 384 × 216 pixels
- 600 cd/m², 3840 Hz refresh
- Front maintenance for all components
- Aluminium die casting
DS-D4015BW-2FC
P1.5 indoor LED display cabinet, 600 × 337.5 mm
- 1.5625 mm pitch, 384 × 216 pixels
- 600 cd/m², 3840 Hz refresh
- Front maintenance for all components
- Aluminium die casting
Key specs
- P1.5 indoor LED display cabinet
- Cabinet 600 × 337.5 mm, 384 × 216 pixels
- Pixel pitch 1.5625 mm, Flip-chip COB
- Brightness 600 cd/m²
- Refresh rate 3840 Hz, grey level 16 bit
- Contrast 15000:1
- Front maintenance for all components
- Power max. ≤ 300 W/m² (600 cd/m²), average ≤ 100 W/m²
| Display | |
|---|---|
| White Balance Brightness | 600 cd/m² |
| Color Temperature | 3000 K to 10000 K adjustable |
| Viewing Angle | 160° (H) / 160° (V) |
| Contrast Ratio | 15000:1 |
| Color Uniformity | ≤ ± 0.003 Cx, Cy |
| Brightness Uniformity | ≥ 97% |
| Cabinet | |
| Pixel Configuration | Flip-chip COB |
| Pixel Pitch Category | P1.5 |
| Pixel Pitch | 1.5625 mm |
| Pixel Density | 409600 dots/m² |
| Modules Component | 2 × 2 |
| Dimensions (W × H × D) | 600 mm × 337.5 mm × 29.3 mm |
| Resolution | 384 × 216 |
| Area | 0.2025 m² |
| Weight | 3.4 kg |
| Cabinet Material | Aluminium die casting |
| Maintenance Method | Front maintenance for all components |
| Module | |
| Dimensions | 300 mm × 168.75 mm |
| Module Resolution | 192 × 108 |
| Processing Performance | |
| Driving Method | Constant current driving |
| Frame Frequency | 60 Hz |
| Refresh Rate | 3840 Hz |
| Grey Level | 16 bit |
| Power | |
| Max. Consumption | ≤ 300 W/m² (600 cd/m²) |
| Average Consumption | ≤ 100 W/m² |
| Input Voltage | 100 to 240 VAC ± 10% |
| Working Environment | |
| Working Temperature | -10 °C to 40 °C |
| Working Humidity | 10% to 90% RH (no condensation) |
| General | |
| Net Weight | 3.4 kg |
| Bracket | |
| Modular Bracket | Standard: DS-DL116033 W (1×1), DS-DL226033 W (2×2); Ultra-thin: DP-D40XXCB22-1X1-Q0.2-NW-Q0.2-ZF |
Know before you buy
Quick answers about the DS-D4015BW-2FC, and how it compares.
How many cabinets do I need?
Divide the screen width by 0.6 m and the height by 0.3375 m. For example, 4 × 4 = 16 cabinets make a 2.4 m × 1.35 m screen of 1536 × 864 pixels (1.33 MP). At 0.65 MP per network port (Hikvision), the controller needs 3 ports for it.
How is it serviced?
Front maintenance for all components. Modules come off from the front with the front maintenance tool.
Can it be used outdoors?
No, it is an indoor cabinet (600 cd/m²). For outdoor screens ask our engineers for an outdoor cabinet or outdoor modules.
How much power does it use?
Up to 300 W/m² (600 cd/m²) and about 100 W/m² on average (Hikvision figures).
Can I buy it online?
LED screens are installed products, so we start with a free pre-sales consultation: our engineers confirm the right models and quantities for your site and send a quote. Use Request a Quote on this page, contact us or WhatsApp +92 300 ESCO 301. Offices in Karachi, Lahore, Islamabad and Rawalpindi.
