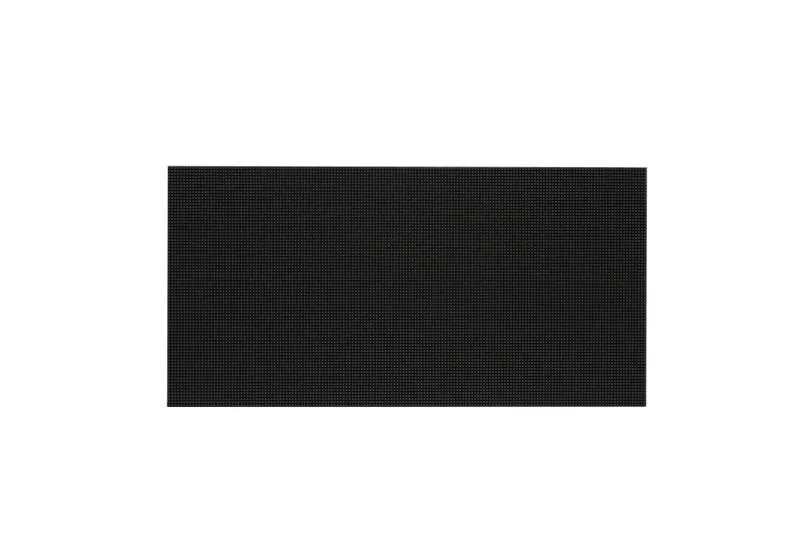

DS-D41Q15CA-1PHQ
P1.5 indoor LED module, 320 × 160 mm
- 1.538 mm pitch, 208 × 104 pixels
- 600 cd/m², 3840 Hz refresh
- HUB75E interface, 5 V DC
- Seamless splicing
DS-D41Q15CA-1PHQ
P1.5 indoor LED module, 320 × 160 mm
- 1.538 mm pitch, 208 × 104 pixels
- 600 cd/m², 3840 Hz refresh
- HUB75E interface, 5 V DC
- Seamless splicing
Key specs
- P1.5 indoor LED module
- Pixel pitch 1.538 mm
- Module 320 × 160 mm, 208 × 104 pixels
- Brightness 600 cd/m²
- Refresh rate 3840 Hz, grey level up to 16 bit
- SMD Triad LED (1212)
- Interface HUB75E, 5 V DC
- Power max. ≤ 600 W/m², average < 290 W/m²
| Module | |
|---|---|
| Pixel Configuration | SMD Triad LED |
| Pixel Pitch Category | P1.5 |
| Pixel Pitch | 1.538 mm |
| Lamp Bead Dimensions | 1212 |
| Dimensions (W × H × D) | 320 mm × 160 mm × 17 mm |
| Resolution | 208 × 104 |
| Pixel Density | 422500 |
| Signal Source Interface | HUB75E |
| Display | |
| White Balance Brightness | 600 cd/m² |
| Color Temperature | 3000 to 10000K adjustable |
| Viewing Angle | 160°(H)/160°(V) |
| Brightness Uniformity | ≥97% |
| Color Uniformity | ≤ ± 0.003Cx, Cy |
| Contrast Ratio | 3000:1 |
| Refresh Rate | 3840 Hz |
| Processing Performance | |
| Scanning Amount | 52 |
| Grey Level | Up to 16 bit |
| Power | |
| Max. Consumption | ≤ 600 W/m² |
| Average Consumption | < 290 W/m² |
| Input Voltage | DC: 4.5 to 5 V |
| Working Environment | |
| Working Temperature | -10 °C to 40 °C |
| Working Humidity | 10% to 80% RH (without condensation) |
| General | |
| Net Weight | 0.48 Kg |
Know before you buy
Quick answers about the DS-D41Q15CA-1PHQ, and how it compares.
How many modules do I need?
Divide the screen width by 0.32 m and the height by 0.16 m. For example, a 3.2 m × 1.92 m screen takes 10 × 12 = 120 modules, 2080 × 1248 pixels (2.6 MP). Our engineers size it for your wall and add the receiving cards, power supplies and controller.
What else does an LED screen need?
Receiving cards (HUB75E), 5 V power supplies, an LED controller, a steel frame with magnetic screws, power and network cabling, and installation. See What you need above; our engineers prepare the full BOQ.
Can it be used outdoors?
No, it is an indoor module (600 cd/m²). For outdoor screens use our outdoor LED modules, P3 to P8, IP65 front.
How much power does it use?
Up to 600 W/m² and about 290 W/m² on average (Hikvision figures). Our engineers size the power and the cabling for the whole screen.
Can I buy it online?
LED screens are installed products, so we start with a free pre-sales consultation: our engineers confirm the right models and quantities for your site and send a quote. Use Request a Quote on this page, contact us or WhatsApp +92 300 ESCO 301. Offices in Karachi, Lahore, Islamabad and Rawalpindi.
