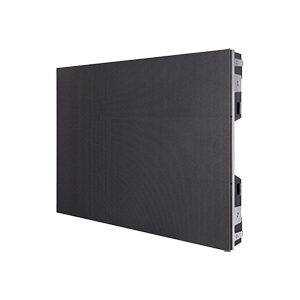

DS-D4415FI-CKF
P1.5 indoor LED display cabinet, 640 × 480 mm
- 1.538 mm pitch, 416 × 312 pixels
- 600 cd/m², 3840 Hz refresh
- Front maintenance for all components
- Front protection level IP5X
DS-D4415FI-CKF
P1.5 indoor LED display cabinet, 640 × 480 mm
- 1.538 mm pitch, 416 × 312 pixels
- 600 cd/m², 3840 Hz refresh
- Front maintenance for all components
- Front protection level IP5X
Key specs
- P1.5 indoor LED display cabinet
- Cabinet 640 × 480 mm, 416 × 312 pixels
- Pixel pitch 1.538 mm, SMD Triad LED
- Brightness 600 cd/m²
- Refresh rate 3840 Hz, grey level 16 bit
- Contrast ≥ 5000:1
- Front maintenance for all components
- Front protection level IP5X
- Power max. ≤ 600 W/m², average ≤ 200 W/m²
| Cabinet | |
|---|---|
| Pixel Configuration | SMD Triad LED |
| Pixel Pitch Category | P1.5 |
| Pixel Pitch | 1.538 mm |
| Modules Component | 3 × 2 |
| Dimensions (W × H × D) | 640 mm × 480 mm × 69 mm |
| Resolution | 416 × 312 |
| Area | 0.3072 m² |
| Weight | 8.8 kg |
| Pixel Density | 422500 dots/m² |
| Lamp Board Housing | no housing |
| Cabinet Material | Die-cast aluminum |
| Maintenance Method | Front maintenance for all components |
| Cabinet Flatness | 0.1 mm |
| Protection Level | Front protection level IP5X |
| Display | |
| White Balance Brightness | 600 cd/m² |
| Color Temperature | 3000 K to 10000 K adjustable |
| Viewing Angle | Horizontal 160°, vertical 160° |
| Contrast Ratio | ≥ 5000:1 |
| Color Uniformity | ≤ ± 0.003Cx, Cy |
| Brightness Uniformity | ≥ 97% |
| Processing Performance | |
| Driving Method | Constant current driving |
| Frame Frequency | 60 Hz |
| Refresh Rate | 3840 Hz |
| Grey Level | 16 bit |
| Display Color | 281 trillion |
| Power | |
| Power Supply | 200 to 240 VAC |
| Max. Consumption | ≤ 600 W/m² |
| Average Consumption | ≤ 200 W/m² |
| Working Environment | |
| Working Temperature | -10 °C to 40 °C |
| Working Humidity | 10% to 80% RH |
| General | |
| Lifespan | Lamp 100,000 hours |
Know before you buy
Quick answers about the DS-D4415FI-CKF, and how it compares.
How many cabinets do I need?
Divide the screen width by 0.64 m and the height by 0.48 m. For example, 4 × 3 = 12 cabinets make a 2.56 m × 1.44 m screen of 1664 × 936 pixels (1.56 MP). At 0.65 MP per network port (Hikvision), the controller needs 3 ports for it.
How is it serviced?
Front maintenance for all components. Modules come off from the front with the front maintenance tool.
Can it be used outdoors?
No, it is an indoor cabinet (600 cd/m², Front protection level IP5X). For outdoor screens ask our engineers for an outdoor cabinet or outdoor modules.
How much power does it use?
Up to 600 W/m² and about 200 W/m² on average (Hikvision figures).
Can I buy it online?
LED screens are installed products, so we start with a free pre-sales consultation: our engineers confirm the right models and quantities for your site and send a quote. Use Request a Quote on this page, contact us or WhatsApp +92 300 ESCO 301. Offices in Karachi, Lahore, Islamabad and Rawalpindi.
