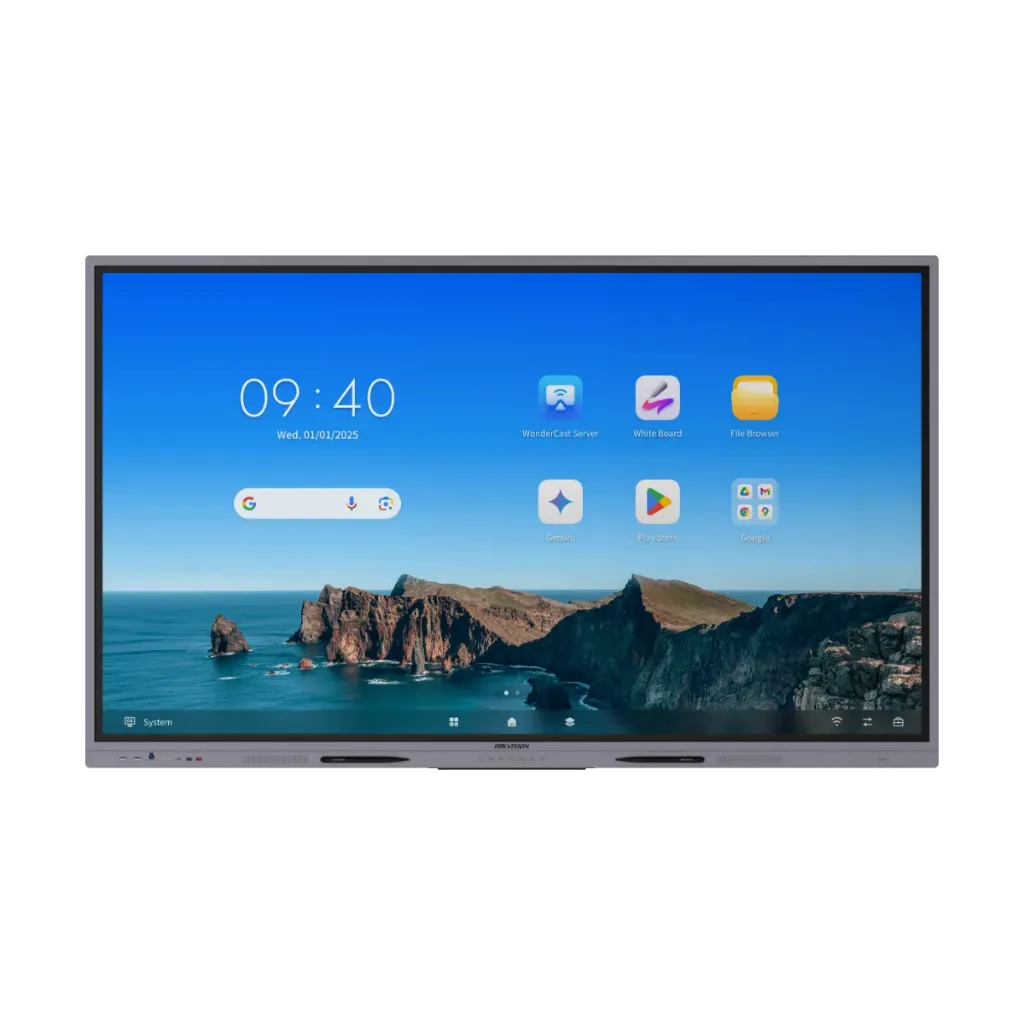

DS-D5A75RB/A3
75-inch 4K interactive display, Value Series
- 3840 × 2160 @60 Hz, Android 14
- 50-point multi-touch, infrared touch screen
- OPS slot for a Windows PC
- Built-in speakers 2 × 20 W
DS-D5A75RB/A3
75-inch 4K interactive display, Value Series
- 3840 × 2160 @60 Hz, Android 14
- 50-point multi-touch, infrared touch screen
- OPS slot for a Windows PC
- Built-in speakers 2 × 20 W
Key specs
- 75-inch 4K interactive display (Value Series)
- 3840 × 2160 @ 60 Hz, 400 cd/m²
- Up to 50-point multi-touch, infrared touch
- Android 14, 8 GB RAM, 128 GB storage
- Speakers 2 × 20 W
- Inputs: HDMI 2.1 × 3
- OPS slot (optional Windows PC)
- Wall mount bracket included
| Display | |
|---|---|
| Screen Size | 75 inch |
| Backlight | DLED |
| Pixel Pitch | 0.143 (H) × 0.429 (V) mm |
| Resolution | 3840 × 2160 @ 60 Hz |
| Brightness | 400 cd/m² |
| Color Depth | 10 bit (8 bit + FRC) |
| Display Color | 1.07 B |
| Response Time | 5 ms |
| Panel Type | IPS |
| Contrast Ratio | 1200:1 (Static); 15,000:1 (Dynamic) |
| Color Gamut | 72% NTSC (CIE1931) (Typ.) |
| Refresh Rate | 60 Hz |
| Viewing Angle | 178° (H) / 178° (V) |
| Aspect Ratio | 16:9 |
| Surface Hardness | 9H (Pencil); 7 (Mohs) |
| Surface Glass | Anti-Glare Glass |
| Surface Haze | 25% Haze |
| Glass Bonding Method | Zero Lamination |
| Display Area | 1650.24 (H) × 928.26 (V) mm |
| Working Duration | 7 × 16 H |
| Transmittance | 88% ± 3 |
| Lifespan | 50,000 hours |
| Touch | |
| Type | Infrared Touch Screen |
| Touch Points | Up to 50-point multi-touch |
| Touch Response Time | ≤ 5 ms |
| Minimum Touch Object | ≥ 1.5 mm (≥ 90% touching area) |
| Touch Precision | ± 0.5 mm (≥ 90% touching area) |
| Touch Resolution | 32768 × 32768 |
| Built-in System | |
| Operating System | Android 14.0 |
| Memory | 8 GB |
| Built-in Storage | 128 GB |
| Processor | Quad-core Cortex-A72 × 4 (2.2 GHz) and quad-core Cortex-A53 × 4 (1.8 GHz) |
| GPU | Mali-G52 MC3 |
| HDCP Version | 2.3, 2.0, 1.4 |
| Internal Function | |
| Loudspeaker | Built-in 2 × 20 W |
| Bluetooth | Built-in BLE, Bluetooth 5.4 |
| NFC Card Reader | 13.56 MHz (ISO 14443A / ISO 14443B) |
| Light Sensor | Yes |
| Interface | |
| Video & Audio Input | HDMI 2.1 TMDS × 3 (Front × 1; Rear × 2); HDCP 2.3/2.2/1.4; HDMI1 supports CEC and ARC |
| Audio Input | Audio × 1 (Rear) |
| Video & Audio Output | Audio × 1 (Rear) |
| Control | TOUCH-USB 2.0 × 1 (Front), TOUCH-USB 2.0 × 1 (Rear), RS232 × 1 (Rear) |
| LAN | 1000 Mbps × 2 (Rear) |
| Wi-Fi | AP & Station, 2.4 GHz / 5 GHz; Wi-Fi 6, IEEE 802.11 a/b/g/n/ac/ax, 2 × 2 MIMO (2.4 GHz and 5 GHz) |
| Wi-Fi Authentication | WEP, WPA, WPA2, PSK, 802.1X EAP |
| USB 3.0 | × 2 (Front) |
| USB 2.0 | × 2 (Rear) |
| Type-C | × 1 (Front); USB 3.0, 15 W charging |
| Physical Interface | |
| Ports and front controls | Line OUT, Line IN, RS232, TOUCH-USB (× 2), LAN 1/2, HDMI IN 1 (ARC)/2, USB 2.0, MULTI-USB 3.0, TF card, USB 3.0 (× 2), HDMI IN, TYPE-C, light sensor, remote-control unit, power key, volume +/-, Android host menu, return, control menu, PC shutdown, NFC area |
| Power | |
| Power Supply | 100 to 240 VAC, 50/60 Hz |
| Standby Consumption | ≤ 0.5 W |
| Average Consumption | < 189 W |
| Working Environment | |
| Working Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Working Humidity | 10% to 90% RH |
| General | |
| VESA | 600 mm × 400 mm (4 × M8-25 mm) |
| Product Dimensions (With Wall Attachment, W × H × D) | 1709.84 × 1017.34 × 124.45 mm |
| Product Dimensions (Without Wall Attachment, W × H × D) | 1709.84 × 1017.34 × 95.75 mm |
| Package Dimensions (W × H × D) | 1907.0 × 1160.0 × 223.0 mm |
| Net Weight | 41.23 ± 0.5 kg |
| Gross Weight | 54.3 ± 0.5 kg |
| Accessory | |
| Included | Wall mount bracket, hook, user manual, touch writing pen, packing list, power cable, remote control |
| Optional | DS-D5ABKY2-M, DS-D5ABKY2-S, DS-UVC-X12, DS-D5AC12T7-16S5, DS-D5SC3B-B, iDS-UVC-X28, DS-D5SC3B-W, DS-D5AC12T5-8S2 |
Know before you buy
Quick answers about the DS-D5A75RB/A3, and how it compares.
Does it have a camera?
Not built in on this model. The camera version is DS-D5A75RB/B3, with a built-in camera and microphone array.
How many people can write at once?
It supports up to 50-point multi-touch (infrared touch screen), so several people can write at the same time.
Can I run Windows on it?
Yes, with an OPS PC module in its slot: DS-D5AC12T5-8S2. Android runs built in.
Can I share my laptop screen wirelessly?
Yes, with the WonderCast software, no extra hardware needed. Or plug the optional DS-D5SC4B-B wireless dongle into the laptop and press to share.
Can I buy it online?
Interactive displays are installed products, so we start with a free pre-sales consultation: our engineers confirm the right models and quantities for your site and send a quote. Use Request a Quote on this page, contact us or WhatsApp +92 300 ESCO 301. Offices in Karachi, Lahore, Islamabad and Rawalpindi.
