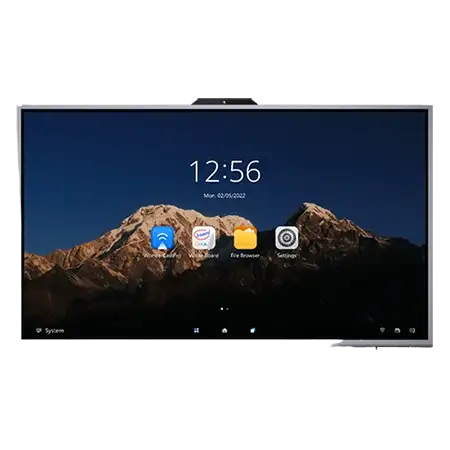

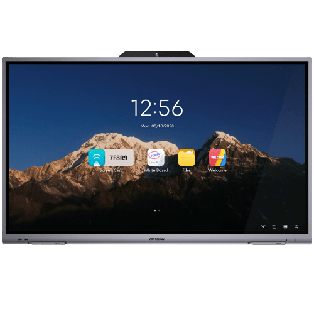

Hikvision DS-D5B65RB/D 65-inch 4K Interactive Flat Panel W/ Camera and Microphone array, 65 inch LED Backlight, 3840 × 2160@60 Hz, 350 cd/m², Color Depth: 10 bit, Contrast Ratio: 4000 : 1 (Typ.), Processor: A72*2 + A53*4, 1.8 GHz, Memory: 4 GB, Built-In Storage: 64 GB, Max 45 point multi-touch, Built-in 2 × 16 W loudspeaker, 8MP Camera, Smart switch between Android system and OPS, Omni-directional 6-array layout, Power Consumption: ≤ 320 W (full load).
Hikvision Interactive Flat Panel
Interactive flat panels have emerged to meet the needs of today’s customers. In settings where communication & collaboration are necessary, daily requirements, such a office meetings and classrooms, interactive flat panels can elevate efficiency & bring everyone together. Hikvision's products take the lead with flexible, multi-functional solutions featuring ultra-4K resolution, accurate on-screen writing built-in whiteboard software, and wireless screen projection
Built-in Whiteboard Software
With pen pick-up detection, graphic recognition, built-in search engine, and QR sharing and saving – among several other powerful functions – these displays will provide a truly memorable conference experience for the presenter and the audience.
|
Display |
|
|
Screen Size |
65 inch LED Backlight |
|
Backlight |
DLED |
|
Pixel Pitch |
0.124 (H) × 0.372 (V) mm |
|
Resolution |
3840 × 2160@60 Hz |
|
Brightness |
350 cd/m² |
|
Color Depth |
10 bit |
|
Contrast Ratio |
1200 : 1 (Typ.) |
|
Response Time |
6 ms |
|
Color Gamut |
90% NTSC (CIE1931) (Typ.) |
|
Refresh Rate |
60 Hz |
|
Viewing Angle |
178° (H) / 178° (V) |
|
Built-in System |
|
|
Operation System |
Android 11 |
|
Processor |
A72*2 + A53*4, 1.8 GHz |
|
Memory |
4 GB |
|
Built-in Storage |
64 GB |
|
NIC |
Built-in 1000 Mbps NIC, supporting routing; IEEE 802.11 a/b/g/n/ac with 2 × 2 MIMO, supporting both 2.4 GHz and 5GHz bands |
|
Touch |
|
|
Type |
Infrared touch screen |
|
Glass |
AG smooth glass |
|
Touch Point |
Max 45 point multi-touch |
|
Touch Response Time |
＜ 10 ms |
|
Touch Precision |
± 1 mm (≥ 90% touching area) |
|
Internal Function |
|
|
Loudspeaker |
Built-in 2 × 16 W loudspeaker |
|
Bluetooth |
Built-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.0 and previous version |
|
Interface |
|
|
Video ＆ Audio Input |
HDMI IN × 2, MAX 4K @30 Hz, LINE IN × 1 |
|
Video ＆ audio output |
HDMI OUT（HDMI 2.0） × 1, MAX 4K @60 Hz, LINE OUT × 1 |
|
Control interface |
RS-232 × 1, Touch-USB × 1 |
|
Network Interface |
RJ45 (1000 Mbps port) × 2 |
|
Data Transmission Interface |
USB-C × 1, USB-A × 2 on front panel, USB-A × 2 on rear panel |
|
Power |
|
|
Power Consumption |
≤ 320 W (full load) |
|
Standby Consumption |
0.5 W |
|
Working Environment |
|
|
Working Temperature |
0 ℃ to 40 ℃ ( 32 ℉ to 104 ℉) |
|
Working Humidity |
10% to 90% RH |
|
General |
|
|
Power |
100 to 240 V, AC, 50/60 Hz |
|
Product dimensions |
1507 × 930 × 86 mm |
|
Package Dimensions (W × H × D) |
1687 × 1061 × 234 mm |
|
Net Weight |
40.36 kg |
|
Gross Weight |
50.69 kg |
|
Lifespan |
50000 hours |
|
Camera |
|
|
Pixel |
8 MP |
|
Camera Function |
Smart switch between Android system and OPS |
|
Field Angle |
120°(diagonal), 110°(horizontal), 66°(vertical) |
|
Distortion |
≤6% |
|
Camera Resolution Ratio |
Up to 4K |
|
Microphone |
|
|
Specification |
Omni-directional 6-array layout |
|
Mic Function |
Echo reduction and smart noise-cancellation |
|
Voice Distance |
8 m |
|
Sampling Rate |
32 K |
|
Mic Sampling Rate |
16 bit |
