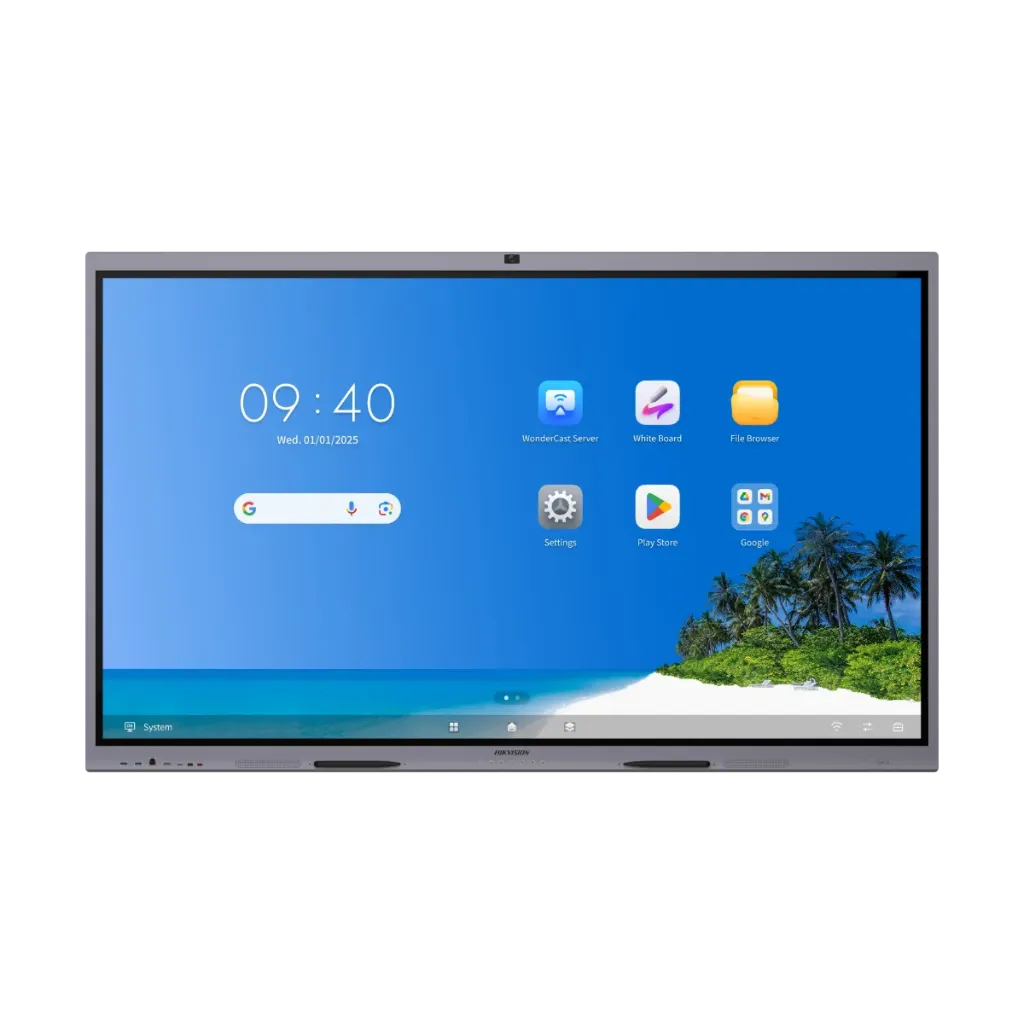

DS-D5B75RB/FP
75-inch 4K interactive display, Performance Series
- 3840 × 2160 @60 Hz, Android 16
- 50-point multi-touch, infrared touch screen
- 48 MP camera, 8-mic omnidirectional array, 12 m pickup
- OPS slot for a Windows PC
DS-D5B75RB/FP
75-inch 4K interactive display, Performance Series
- 3840 × 2160 @60 Hz, Android 16
- 50-point multi-touch, infrared touch screen
- 48 MP camera, 8-mic omnidirectional array, 12 m pickup
- OPS slot for a Windows PC
Key specs
- 75-inch 4K interactive display (Performance Series)
- 3840 × 2160 @ 60 Hz, 450 cd/m² (Max.)
- Up to 50-point multi-touch, infrared touch
- Android 16, 8 GB RAM, 128 GB storage
- Camera 48 MP for photos, 8 MP for video, 8-mic omnidirectional array, pickup 12 m
- Speakers 2 × 20 W + 25 W
- Inputs: HDMI 2.1 × 3
- OPS slot (optional Windows PC)
- Wall mount bracket included
| Display | |
|---|---|
| Screen Size | 75 inch |
| Backlight | DLED |
| Pixel Pitch | 0.143 (H) × 0.429 (V) mm |
| Resolution | 3840 × 2160 @ 60 Hz |
| Brightness | 450 cd/m² (Max.) |
| Color Depth | 10 bit (8 bit + FRC) |
| Display Color | 1.07 G |
| Response Time | 5 ms |
| Panel Type | VA |
| Contrast Ratio | 5000:1 (Static); 30,000:1 (Dynamic) |
| Color Gamut | 72% NTSC (CIE1931) (Typ.) |
| Refresh Rate | 60 Hz |
| Viewing Angle | 178° (H) / 178° (V) |
| Aspect Ratio | 16:9 |
| Surface Hardness | 9H (Pencil); 7 (Mohs) |
| Surface Glass | Anti-Glare Glass |
| Surface Haze | 25% Haze |
| Glass Bonding Method | Zero Lamination |
| Display Area | 1652.24 (H) × 930.26 (V) mm |
| Working Duration | 7 × 16 H |
| Transmittance | 88% ± 3 |
| Lifespan | 50,000 hours |
| Touch | |
| Type | Infrared Touch Screen |
| Touch Points | Up to 50-point multi-touch |
| Touch Response Time | ≤ 2 ms |
| Minimum Touch Object | ≥ 1.5 mm (≥ 90% touching area) |
| Touch Precision | ± 0.5 mm (≥ 90% touching area) |
| Touch Resolution | 32768 × 32768 |
| Built-in System | |
| Operating System | Android 16.0 |
| Memory | 8 GB |
| Built-in Storage | 128 GB |
| Processor | Quad-core Cortex-A72 × 4 (2.2 GHz) and quad-core Cortex-A53 × 4 (1.8 GHz) |
| GPU | Mali-G52 MC3 |
| HDCP Version | 2.3, 2.2, 1.4 |
| Camera | |
| Pixel | 48 MP for photos, 8 MP for video |
| Camera Function | Intelligent switching between Android system, OPS, and PC |
| Field Angle | 93.4° (diagonal), 84.5° (horizontal), 54.1° (vertical) |
| Distortion | ≤ 2.5% |
| Camera Resolution Ratio | Up to 4K |
| Microphone | |
| Specification | Omni-directional 8-array layout |
| Mic Function | Echo reduction and smart noise cancellation |
| Voice Distance | 12 m |
| Sampling Rate | 48 kHz |
| Mic Depth | 16 bit |
| Internal Function | |
| Loudspeaker | Built-in 2 × 20 W + 25 W |
| Bluetooth | Built-in BLE module, Bluetooth 5.4 |
| NFC Card Reader | 13.56 MHz (ISO 14443A / ISO 14443B) |
| Light Sensor | Yes |
| Image Processing | |
| Technologies | 3D digital noise reduction, face detection, automatic white balance, automatic purple edge removal, automatic defogging, shadow correction |
| Audio Processing | |
| Technologies | Dereverberation, adaptive noise reduction, adaptive non-stationary noise reduction, adaptive echo cancellation, automatic gain control, automatic electrical level control, sound source localization, speech dynamic detection, digital beam forming, speech detection |
| Interface | |
| Video & Audio Input | HDMI 2.1 TMDS × 3 (Front × 1; Rear × 2; HDCP 2.3/2.2/1.4; HDMI1 supports CEC & ARC) |
| Video Input | VGA × 1 (Rear) |
| Audio Input | Audio × 1 (Rear) |
| Video & Audio Output | HDMI 2.1 TMDS × 1 (Rear) |
| Audio Output | Audio × 1 (Rear); SPDIF × 1 (Rear) |
| Control | TOUCH-USB 3.0 × 1 (Front); TOUCH-USB 2.0 × 2 (Rear); RS232 × 1 (Rear) |
| LAN | 1000 Mbps × 2 (Rear) |
| Wi-Fi | AP & Station, 2.4 GHz / 5 GHz; Wi-Fi 6, IEEE 802.11 a/b/g/n/ac/ax, 2 × 2 MIMO (2.4 GHz and 5 GHz) |
| Wi-Fi Authentication | WEP, WPA, WPA2, PSK, 802.1X EAP |
| USB 3.0 | × 3 (Front × 2; Rear × 1) |
| USB 2.0 | × 2 (Rear) |
| Type-C (Front) | × 1; USB 3.0, 65 W charging, DP IN 1.4 |
| Type-C (Rear) | × 1; USB 2.0, 65 W charging, DP IN 1.4 |
| Power | |
| Power Supply | 100 to 240 VAC, 50/60 Hz |
| Standby Consumption | ≤ 0.5 W |
| Average Consumption | < 189 W |
| Working Environment | |
| Working Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Working Humidity | 10% to 90% RH |
| General | |
| VESA | 800 mm × 400 mm (4 × M8-25 mm) |
| Product Dimensions (With Wall Attachment) | 1709.83 × 1034.54 × 107.1 mm |
| Product Dimensions (Without Wall Attachment) | 1709.83 × 1034.54 × 83.1 mm |
| Package Dimensions (W × H × D) | 1907.0 × 1160.0 × 223.0 mm |
| Net Weight | 45.7 ± 0.5 kg |
| Gross Weight | 63.1 ± 0.5 kg |
| Accessory | |
| Included | Wall mount bracket, hook, user manual, touch writing pen, packing list, 3 M touch USB cable, 3.5 M HDMI cable (2.0), power cable, remote control, screen cleaning cloth |
| Optional | DS-D5AC13T5-8S2, DS-D5AC13T7-16S5, DS-D5ABKY2-M, iDS-UVC-X28, DS-D5ABKY2-S, DS-D5SC3B-W, DS-D5SC3B-B, DS-D5AC12T7-16S5, DS-UVC-X12, DS-D5AC12T5-8S2 |
Questions & answers
Know before you buy
Quick answers about the DS-D5B75RB/FP, and how it compares.
Can I make video calls on it?
Yes. It has a built-in 48 MP camera and an 8-mic omnidirectional array with 12 m voice pickup, with echo reduction and noise cancellation.
How many people can write at once?
It supports up to 50-point multi-touch (infrared touch screen), so several people can write at the same time.
Can I run Windows on it?
Yes, with an OPS PC module in its slot: DS-D5AC12T5-8S2. Android runs built in.
Can I share my laptop screen wirelessly?
Yes, with the WonderCast software, no extra hardware needed. Or plug the optional DS-D5SC4B-B wireless dongle into the laptop and press to share.
Can I buy it online?
Interactive displays are installed products, so we start with a free pre-sales consultation: our engineers confirm the right models and quantities for your site and send a quote. Use Request a Quote on this page, contact us or WhatsApp +92 300 ESCO 301. Offices in Karachi, Lahore, Islamabad and Rawalpindi.
