Key specs

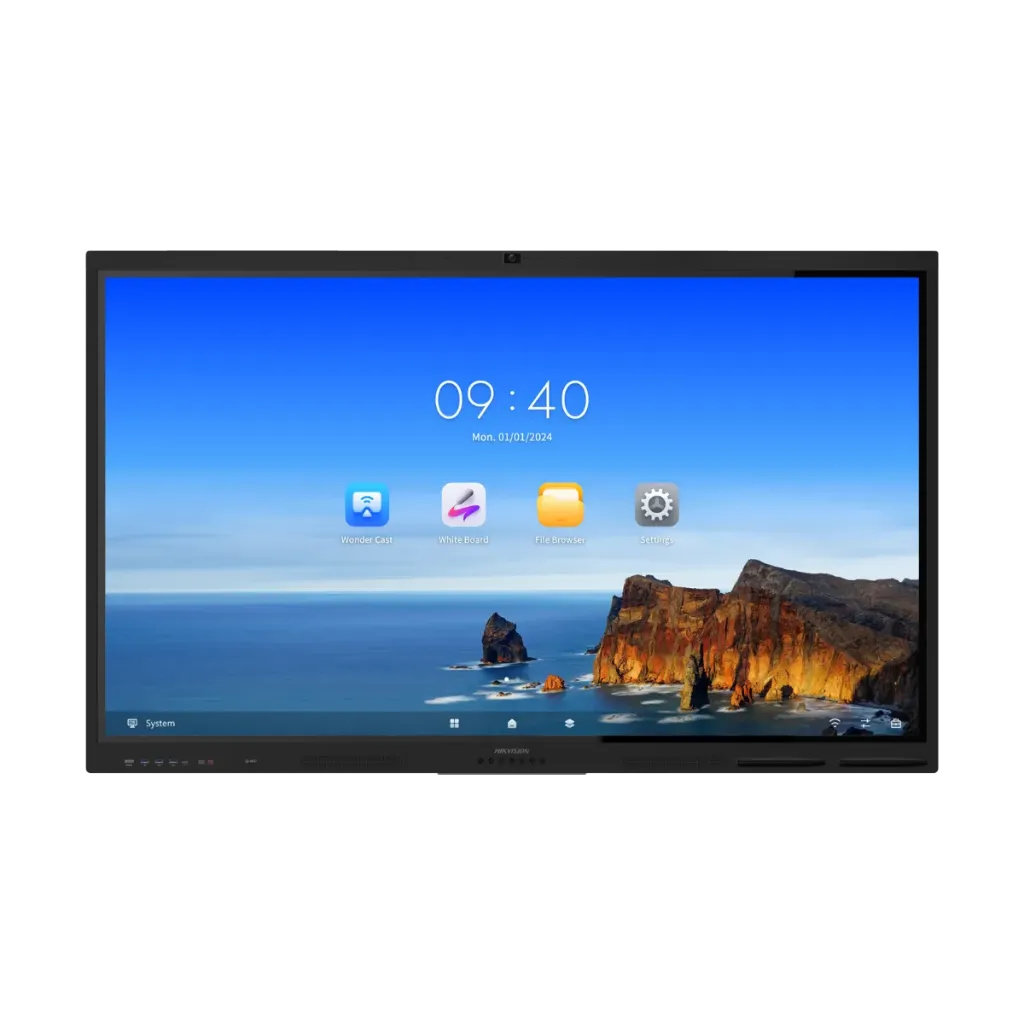

- 86-inch 4K interactive display (Value Series)
- 3840 × 2160 @ 60 Hz
- 40-point multi-touch, infrared touch
- Android 13, 8 GB RAM, 128 GB storage
- Camera 48 MP (photos) / 8 MP (video), 8-mic omnidirectional array, pickup 12 m
- Speakers 2 × 20 W
- Inputs: HDMI In
- OPS slot (optional Windows PC)
| Display | |
|---|---|
| Resolution | 3840 × 2160 @ 60 Hz |
| Touch | |
| Type | Infrared touch screen |
| Touch Point | 40-point multi-touch |
| Touch Response Time | < 5 ms |
| Minimum Touch Object | ≥ 2 mm (≥ 90% touching area) |
| Touch Precision | ± 1 mm (≥ 90% touching area) |
| Touch Resolution | 32767 × 32767 |
| Built-in System | |
| Operating System | Android 13.0 |
| Memory | 8 GB |
| Built-in Storage | 128 GB |
| CPU | Cortex-A55 × 4 (1.92 GHz) |
| GPU | Mali-G52 MP2 (2EE) |
| HDCP Version | 1.4 / 2.2 / 2.3 |
| Camera | |
| Pixel | 48 MP (photos) / 8 MP (video) |
| Camera Function | Intelligent switching between Android system, OPS, and PC |
| Field Angle | 93.4° (diagonal), 84.5° (horizontal), 54.1° (vertical) |
| Distortion | ≤ 2.5% |
| Camera Resolution | Up to 4K |
| Microphone | |
| Specification | Omni-directional 8-array layout |
| Mic Function | Echo reduction and smart noise cancellation |
| Voice Distance | 12 m |
| Sampling Rate | 32 kHz |
| Mic Depth | 16 bit |
| Internal Function | |
| Loudspeaker | Built-in 2 × 20 W |
| Speaker Frequency | 200 Hz to 20 kHz |
| Bluetooth | Built-in BLE module, Bluetooth 5.2 |
| NFC | Supports card reader |
| Light Sensor | Yes |
| Interface | |
| Video & Audio Input | HDMI In (HDMI 2.0) × 2; Audio In × 1 |
| Video & Audio Output | Audio Out × 1 |
| Control Interface | TOUCH-USB 2.0 × 1; RS232 × 1 |
| Data Transmission | USB 3.0 × 3; USB 2.0 × 2; Type-C × 1 (USB 2.0 only) |
| Network Interface | |
| LAN | 100 Mbps × 2 |
| Wi-Fi | AP & Station, 2.4G/5G |
| Wi-Fi AP | IEEE 802.11 a/b/g/n/ac, 2 × 2 MIMO (2.4 GHz and 5 GHz) |
| Wi-Fi Station | IEEE 802.11 a/b/g/n/ac/ax, 1 × 1 MIMO (2.4 GHz and 5 GHz) |
| Authentication Protocols | WEP, WPA, WPA2, PSK, 802.1X EAP |
| Working Environment | |
| Working Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Working Humidity | 10% to 90% RH |
Know before you buy
Quick answers about the DS-D5B86RB/FL, and how it compares.
Can I make video calls on it?
Yes. It has a built-in 48 MP camera and an 8-mic omnidirectional array with 12 m voice pickup, with echo reduction and noise cancellation.
How many people can write at once?
It supports 40-point multi-touch (infrared touch screen), so several people can write at the same time.
Can I run Windows on it?
Yes, with an OPS PC module in its slot: DS-D5AC12T5-8S2. Android runs built in.
Can I share my laptop screen wirelessly?
Yes, with the WonderCast software, no extra hardware needed. Or plug the optional DS-D5SC4B-B wireless dongle into the laptop and press to share.
Can I buy it online?
Interactive displays are installed products, so we start with a free pre-sales consultation: our engineers confirm the right models and quantities for your site and send a quote. Use Request a Quote on this page, contact us or WhatsApp +92 300 ESCO 301. Offices in Karachi, Lahore, Islamabad and Rawalpindi.
