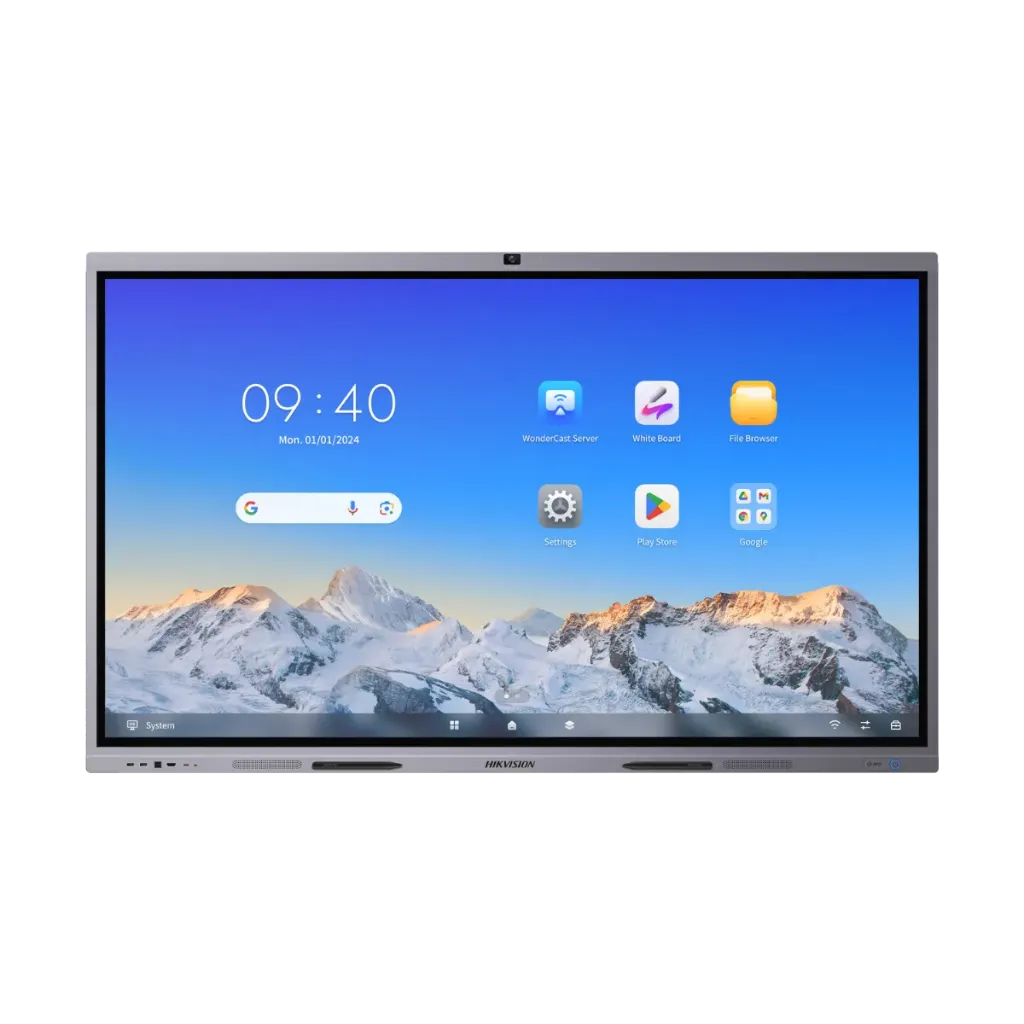

DS-D5C65RB/B
65-inch 4K interactive display, Ultra Series
- 3840 × 2160 @60 Hz, Android 14
- 50-point multi-touch, infrared touch screen
- 48 MP camera, 8-mic omnidirectional array, 12 m pickup
- OPS slot for a Windows PC
DS-D5C65RB/B
65-inch 4K interactive display, Ultra Series
- 3840 × 2160 @60 Hz, Android 14
- 50-point multi-touch, infrared touch screen
- 48 MP camera, 8-mic omnidirectional array, 12 m pickup
- OPS slot for a Windows PC
Key specs
- 65-inch 4K interactive display (Ultra Series)
- 3840 × 2160 @ 60 Hz, 400 cd/m² (Typ.)
- Up to 50-point multi-touch, infrared touch
- Android 14, 8 GB RAM, 128 GB storage
- Camera 48 MP for photos, 8 MP for video, 8-mic omnidirectional array, pickup 12 m
- Speakers 2 × 20 W + 25 W
- Inputs: HDMI In
- OPS slot (optional Windows PC)
- Wall mount bracket included
| Display | |
|---|---|
| Screen Size | 65 inch |
| Backlight | DLED |
| Pixel Pitch | 0.124 (H) × 0.372 (V) mm |
| Resolution | 3840 × 2160 @ 60 Hz |
| Brightness | 400 cd/m² (Typ.) |
| Color Depth | 10 bit |
| Display Color | 1.07 G |
| Response Time | 5 ms |
| Panel Type | VA |
| Contrast Ratio | 5000:1 (Static); 30,000:1 (Dynamic) |
| Color Gamut | 72% NTSC (CIE1931) (Typ.) |
| Refresh Rate | 60 Hz |
| Viewing Angle | 178° (H) / 178° (V) |
| Aspect Ratio | 16:9 |
| Surface Hardness | 9H (Pencil) / 7 (Mohs) |
| Surface Glass | Anti-Glare Glass |
| Surface Haze | 25% Haze |
| Glass Bonding Method | Zero Lamination |
| Display Area | 1428.48 mm × 803.52 mm |
| Working Duration | 7 × 16 H |
| Transmittance | 88% ± 3 |
| Lifespan | 50,000 hours |
| Touch | |
| Type | Infrared Touch Screen |
| Touch Points | Up to 50-point multi-touch |
| Touch Response Time | ≤ 2 ms |
| Minimum Touch Object | ≥ 1.5 mm (≥ 90% touching area) |
| Touch Precision | ± 0.5 mm (≥ 90% touching area) |
| Touch Resolution | 32768 × 32768 |
| Built-in System | |
| Operation System | Android 14.0 |
| Memory | 8 GB |
| Built-in Storage | 128 GB |
| Processor | Quad-core Cortex-A76 × 4 (2.4 GHz) and quad-core Cortex-A55 × 4 (1.8 GHz) |
| GPU | Mali-G610 MC4 |
| HDCP Version | 2.3 |
| Camera | |
| Pixel | 48 MP for photos, 8 MP for video |
| Camera Function | Intelligent switching between Android system, OPS, and PC |
| Field Angle | 93.4° (diagonal), 84.5° (horizontal), 54.1° (vertical) |
| Distortion | ≤ 2.5% |
| Camera Resolution Ratio | Up to 4K |
| Microphone | |
| Specification | Omni-directional 8-array layout |
| Mic Function | Echo reduction and smart noise cancellation |
| Voice Distance | 12 m |
| Sampling Rate | 32 kHz |
| Mic Depth | 16 bit |
| Internal Functions | |
| Loudspeaker | Built-in 2 × 20 W + 25 W |
| Bluetooth | Built-in BLE module, Bluetooth 5.1 |
| NFC | Supports screen mirroring by Android phones |
| Light Sensor | Yes |
| Image Processing | |
| Technologies | 3D digital noise reduction, face detection, automatic white balance, automatic purple edge removal, automatic defogging, shadow correction |
| Audio Processing | |
| Technologies | Dereverberation, adaptive noise reduction, adaptive non-stationary noise reduction, adaptive echo cancellation, automatic gain control, automatic electrical level control, sound source localization, speech dynamic detection, digital beam forming, speech detection |
| Interface | |
| Video & Audio Input | HDMI In (HDMI 2.0) × 3, VGA In × 1, DP In (DP 1.2) × 1, Audio In × 1 |
| Video & Audio Output | HDMI Out (HDMI 2.0) × 1, Audio Out × 1, SPDIF Out × 1 |
| Control Interface | TOUCH-USB 3.0 × 3, RS232 × 1 |
| LAN | 1000 Mbps × 2 |
| WIFI | AP & Station, 2.4G/5G |
| WIFI Standard | WIFI 6, IEEE 802.11 a/b/g/n/ac/ax, 2 × 2 MIMO (2.4 GHz and 5 GHz) |
| Authentication Protocols | WEP, WPA, WPA2, PSK, 802.1X EAP |
| USB | USB 3.0 × 4, USB 2.0 × 1 |
| Type-C | × 2 (USB 2.0, DP 1.2, charging); side charging 15 W, front charging 65 W |
| Power | |
| Power Supply | 100 to 240 VAC, 50/60 Hz |
| Standby Consumption | ≤ 0.5 W |
| Average Consumption | < 107 W |
| Working Environment | |
| Working Temperature | 0 °C to 40 °C (32 °F to 104 °F) |
| Working Humidity | 10% to 90% RH |
| General | |
| VESA | 600 mm × 400 mm (4 × M8-25 mm) |
| Product Dimensions | 1491.88 mm × 910.6 mm × 82.3 mm |
| Package Dimensions (W × H × D) | 1652 mm × 1052 mm × 213 mm |
| Net Weight | 37.6 kg |
| Gross Weight | 47.6 kg |
| Accessory | |
| Included | Wall mount bracket, hook, user manual, touch writing pen, packing list, 3 M touch USB cable, 3.5 M HDMI cable (2.0), power cable, Bluetooth remote control |
| Optional | DS-D5ABKE2-A50, DS-D51C08D, DS-D5ABKE1-A50, DS-D5ABKY3-SL, DS-D5AC12T7-16S5, DS-D5AC12T5-8S2 |
Questions & answers
Know before you buy
Quick answers about the DS-D5C65RB/B, and how it compares.
Can I make video calls on it?
Yes. It has a built-in 48 MP camera and an 8-mic omnidirectional array with 12 m voice pickup, with echo reduction and noise cancellation.
How many people can write at once?
It supports up to 50-point multi-touch (infrared touch screen), so several people can write at the same time.
Can I run Windows on it?
Yes, with an OPS PC module in its slot: DS-D5AC12T5-8S2. Android runs built in.
Can I buy it online?
Interactive displays are installed products, so we start with a free pre-sales consultation: our engineers confirm the right models and quantities for your site and send a quote. Use Request a Quote on this page, contact us or WhatsApp +92 300 ESCO 301. Offices in Karachi, Lahore, Islamabad and Rawalpindi.
