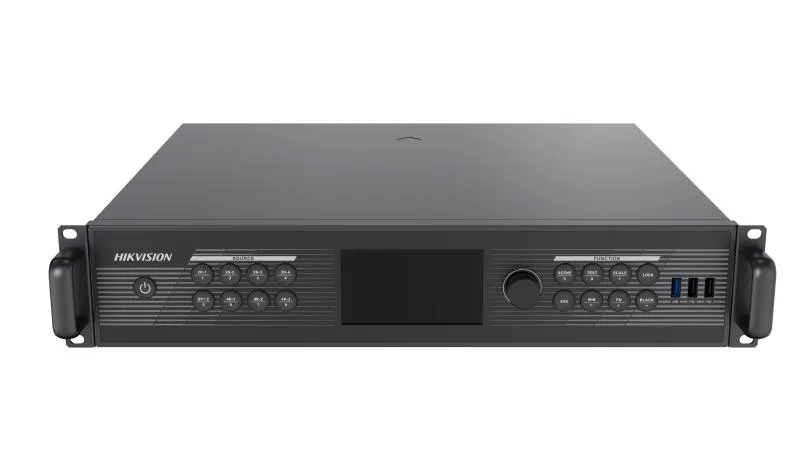

DS-DT90P-09HDPSI40NO/U
40-port LED controller, up to 26 MP
- 40 network outputs, 26 MP
- 9 video inputs: 1 × DP1.2, 3 × HDMI2.0
- Built-in Android 12 player
- 7680 Hz refresh
DS-DT90P-09HDPSI40NO/U
40-port LED controller, up to 26 MP
- 40 network outputs, 26 MP
- 9 video inputs: 1 × DP1.2, 3 × HDMI2.0
- Built-in Android 12 player
- 7680 Hz refresh
Key specs
- 40-port LED controller (DT90P, built-in Android 12)
- Inputs: 9 video inputs: 1 × DP1.2, 3 × HDMI2.0, 1 × 12G-SDI, 4 × HDMI1.3
- Load up to 26 MP, 0.65 MP per network port
- Max. 16384 pixels wide or high
- Android 12 with 4 GB memory, 64 GB storage
- Refresh rate 7680 Hz
- 2U rack chassis
- Average consumption 110 W
| Processing Performance | |
|---|---|
| Input Frame Rate | 25 Hz to 120 Hz |
| Processing Depth | 8 bit / 10 bit |
| Image Scaling | Supported |
| Chassis | |
| Chassis Height | 2 U |
| Chassis Width | 442 mm |
| LED Controller Power | |
| Average Consumption | 110 W |
| Interface | |
| Optical Interface | 4 × 10G optical ports (transmit mode: OPT 1 to OPT 4 carry Ethernet ports 1 to 10, 11 to 20, 21 to 30, 31 to 40) |
| 3D Interface | 1 × 3D port (with 3D transmitter and glasses; load capacity halves in 3D) |
| USB Interface | 2 × USB 2.0 + 1 × USB 3.0 |
| Genlock | IN and LOOP, Bi-Level, Tri-Level, Blackburst |
| Serial Interface | 1 × debugging port + 2 × RS-485 |
| Power | |
| Power Interface | 100 VAC to 240 VAC, 50/60 Hz |
| General | |
| Screen | LCD 4.5 inch, 854 × 480 |
| Working Temperature | 0 °C to 50 °C |
| Dimensions (W × H × D) | 442 mm × 88 mm × 417 mm (excluding mounting ears) |
| Net Weight | 6.26 kg |
| Audio Input | |
| Audio Input Interfaces | 11 (3 × HDMI2.0, 1 × DP, 4 × HDMI1.3, 1 × line-in, 1 × built-in Android, 1 × 12G-SDI) |
| Video Input | |
| Video Input Interface Type | 2-out-of-4 selection (2 × HDMI2.0, 1 × DP1.2, 1 × built-in Android) + 1 × HDMI2.0 + 4 × HDMI1.3 + 1 × 12G-SDI |
| Video Input Interfaces | 9 |
| Max. input | HDMI2.0 / DP1.2 / built-in Android / 12G-SDI 4K, HDMI1.3 1080P |
| Video Output | |
| Loading capacity | single port 650,000 pixels (mini loading mode), total ≤ 26,000,000; width / height 144 to 16384 |
| LED Loading Interfaces | 40 × RJ-45 |
| Video Loop Output | 3 × HDMI2.0 + 1 × 12G-SDI, 4096 × 2160@60 Hz |
| Live View Output | 1 × HDMI 1.3, 1080p@60 Hz |
| Audio Output | |
| Audio Output Interface | 1 × 3.5 mm |
| System | |
| System | Android 12 |
| Memory Capacity | 4 GB |
| Storage Capacity | 64 GB |
| CPU | 4-core 64-bit ARM Cortex-A55 2.0 GHz |
Know before you buy
Quick answers about the DS-DT90P-09HDPSI40NO/U, and how it compares.
How big a screen can it drive?
Up to 26 MP in total (40 ports × 0.65 MP per port), and up to 16384 pixels wide or high. For example, a P2.5 screen of 1280 × 768 pixels (3.2 m × 1.92 m) is 0.98 MP and uses 2 ports.
What inputs does it take?
9 video inputs: 1 × DP1.2, 3 × HDMI2.0, 1 × 12G-SDI, 4 × HDMI1.3.
Can it play content without a PC?
Yes. The built-in Android 12 player plays programs from a USB drive.
Can I cast from a laptop or phone?
Yes, with the WonderCast application (Hikvision).
Can I buy it online?
LED controllers are installed products, so we start with a free pre-sales consultation: our engineers confirm the right models and quantities for your site and send a quote. Use Request a Quote on this page, contact us or WhatsApp +92 300 ESCO 301. Offices in Karachi, Lahore, Islamabad and Rawalpindi.
