DS-K1A8503EF-B
DS-K1A8503EF-B

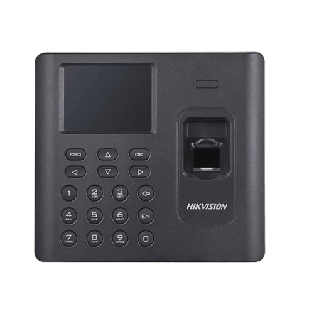

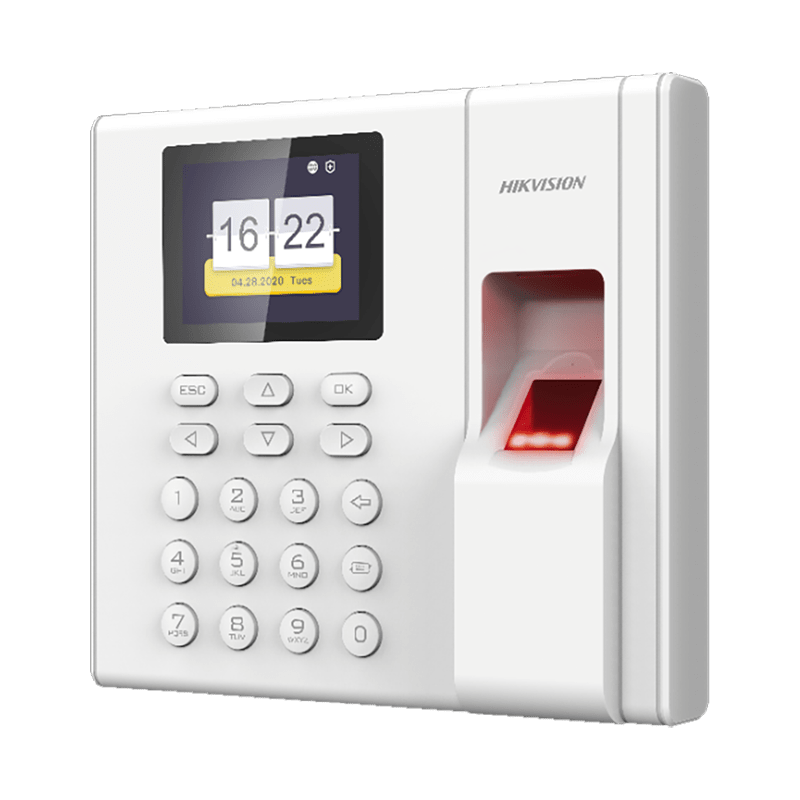

Hikvision DS-K1A8503EF-B Fingerprint Time Attendance Terminal, 2.4-inch LCD display screen, Standalone time attendance terminal, 1,000 Fingerprints, 1,000 cards and 100,000 events storage, Card reading mode: EM Card, Communication via TCP/IP, Supports ISAPI protocol and ISUP 5.0 protocol, Multiple time attendance status, Built-in Battery, 5 VDC/1 A.
Time Attendance
Standalone Time Attendance Terminal
LCD Screen
2.4-inch LCD display screen
Record History
1,000 fingerprints Capacity, 1,000 cards and 100,000 events storage
Shifts
Support Upto 32 Normal Shift, 32 Man-Hour Shifts
Supports 6 attendance status
Audio
1 Loudspeaker, 1 Buzzer
Response Time
Fingerprint Authentication duration<1s
Battery
Built-in Battery
Interface Support
TCP/IP: 10/100 Mbps self-adaptive
Support USB Interface for Easy Attendance Reports
System |
|
Operation system |
Linux |
Screen |
|
Size |
2.4-inch |
Type |
LCD-TFT display screen |
Audio |
|
Audio output |
1 loudspeaker, 1 buzzer |
Network |
|
Wired network |
TCP/IP, 10/100Mbps, self-adaptive |
Interface |
|
Network interface |
1 |
USB |
1 |
Capacity |
|
Card capacity |
1000 |
Fingerprint capacity |
1000 |
Event capacity |
100,000 |
Authentication |
|
Card type |
EM card |
Card reading distance |
0 to 3.5 cm |
Fingerprint module |
Optical fingerprint module |
Fingerprint comparing mode |
1:1 and 1:N |
Fingerprint recognition duration |
< 1 s |
Fingerprint False Acceptance Rate (FAR) |
≤ 0.001 % |
Fingerprint False Rejection Rate (FRR) |
≤ 0.01 % |
Others |
|
Battery |
Support |
Power supply |
5 VDC/1 A |
Working temperature |
-10 °C to +55 °C (14 °F to +131 °F) |
Working humidity |
10% to 90% (no condensing) |
Color |
White |
Dimensions |
140 mm × 155 mm × 30 mm (5.51" × 6.01" × 1.18") |
Application environment |
Indoor |
Installation |
Wall mounting |
