DS-K1A8503MF-B

DS-K1A8503MF-B

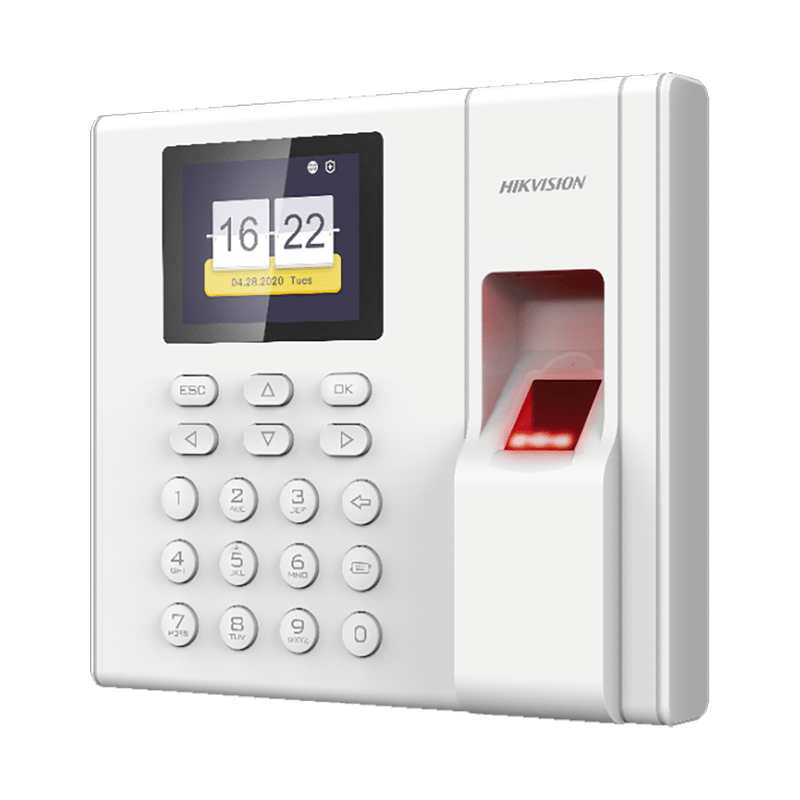

Hikvision Fingerprint Time Attendance Terminal, 2.4-inch LCD display screen, Standalone time attendance terminal, 1,000 fingerprints, 1,000 cards and 100,000 events storage, Card reading mode: Mifare 1 Card, Communication via TCP/TP, n Supports ISAPI protocol and ISUP 5.0 protocol, Multiple time attendance status, Built-in Battery, 5 VDC/1 A.

Time Attendance

Standalone Time Attendance Terminal

LCD Screen

2.4-inch LCD display screen

Record History

1,000 fingerprints Capacity, 1,000 cards and 100,000 events storage

Shifts

Support Upto 32 Normal Shift, 32 Man-Hour Shifts

Supports 6 attendance status

Audio

1 Loudspeaker, 1 Buzzer

Response Time

Fingerprint Authentication <1s

Battery

Built-in Battery

Interface Support

TCP/IP: 10/100 Mbps self-adaptive,

USB Interface

System

Operation system

Linux

Screen

Size

2.4-inch

Type

LCD-TFT display screen

Audio

Audio output

1 loudspeaker, 1 buzzer

Network

Wired network

TCP/IP, 10/100Mbps, self-adaptive

Interface

Network interface

1

USB

1

Capacity

Card capacity

1000

Fingerprint capacity

1000

Event capacity

100,000

Authentication

Card type

Mifare 1 card

Card reading distance

0 to 5 cm

Fingerprint module

Optical fingerprint module

Fingerprint comparing mode

1:1 and 1:N

Fingerprint recognition duration

1 s

Fingerprint False Acceptance Rate (FAR)

0.001 %

Fingerprint False Rejection Rate (FRR)

0.01 %

Others

Battery

Support

Power supply

5 VDC/1 A

Working temperature

-10 °C to +55 °C (14 °F to +131 °F)

Working humidity

10% to 90% (no condensing)

Color

White

Dimensions

140 mm × 155 mm × 30 mm (5.51" × 6.01" × 1.18")

Application environment

Indoor

Installation

Wall mounting
