Hikvision DS-K1T331W Face Recognition Access Control Terminal, 3.97-inch LCD touch screen, 2MP wide-angle lens, Max.1000 faces capacity, Supports TCP/IP, Wi-Fi communication, DC 12V/1.5A, Application Situation: Indoor, Configuration via the web client, Supports ISUP5.0, ISAPI, Face mask wearing alert, 12 V/1.5 A.
Value Series Face Access Terminal

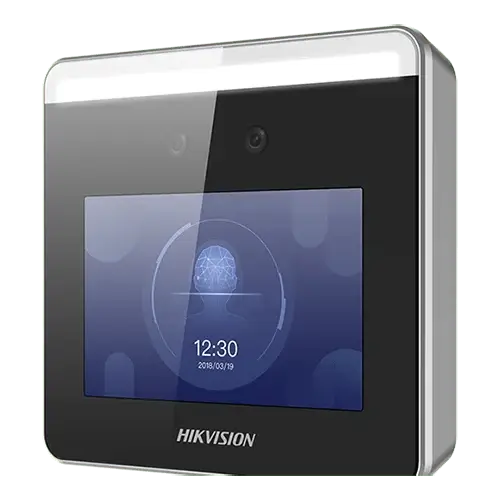

Hikvision DS-K1T331W Face Recognition Access Control Terminal
Camera
2 MP dual-lens camera with wide dynamic range
User Support
Face Capacity: 1000 & Event: 150,000
LCD Touch Screen
3.97-inch Touch Screen
Mask Wearing Alert
Face Mask Wearing Alert and Forced Mask Wearing Alert
Interface
USB × 1, Electric lock × 1, Door contact × 1, Tamper × 1, Exit button × 1, RS-485 × 1
|
System Parameters |
|
|
Operation System |
Linux |
|
Camera |
2 MP dual-lens camera with wide dynamic range |
|
Capacity |
Card: 1500 (When connecting external card reader) Face: 1000 Event: 150,000 |
|
1:N face recognition duration |
＜ 0.2 s |
|
FOV |
HFOV = 41°; VFOV = 75° |
|
LCD Screen |
|
|
LCD Screen |
3.97-inch touch screen |
|
General |
|
|
Face Recognition Distance |
0.3 m to 1.5 m |
|
Interface |
USB × 1, electric lock × 1, door contact × 1, tamper × 1, exit button × 1, RS-485 × 1 |
|
Communication Mode |
TCP/IP: 10/100 Mbps, self-adaptive |
|
Power supply |
12 V, 1.5 A, 18 W |
|
Working temperature |
-10 °C to 55 °C (14 °F to 131 °F) |
|
Working humidity |
10 to 90% (no condensing) |
|
Dimension |
120 mm × 110 mm × 23 mm (4.7" × 4.3" × 0.9") |
|
Application situation |
Indoor use |
