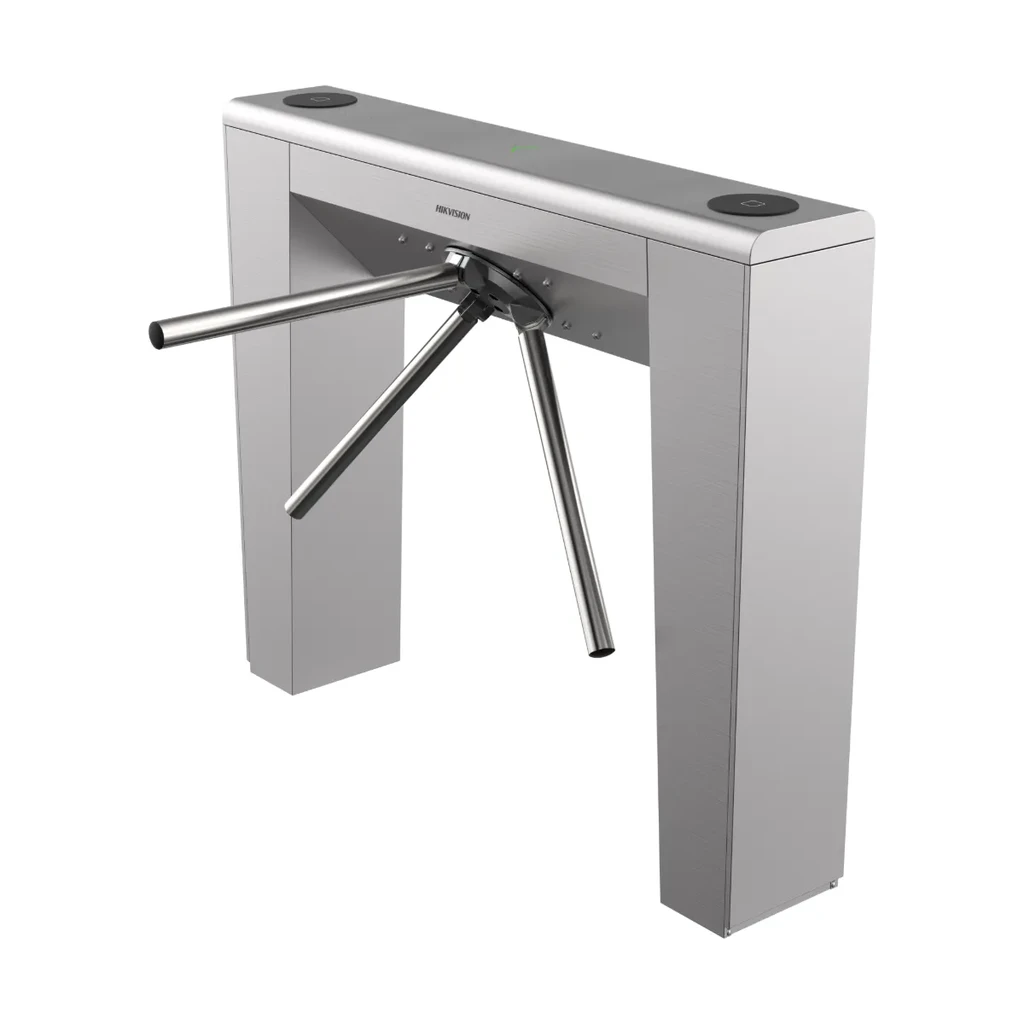

DS-K3G301LX
Value tripod turnstile, 550 mm lane
- 25 to 60 persons per minute, MCBF 2 million
- Arms drop on fire alarm, for evacuation
- LED shows entrance, exit and passing status
- Entering and exiting, I/O for any access system
DS-K3G301LX
Value tripod turnstile, 550 mm lane
- 25 to 60 persons per minute, MCBF 2 million
- Arms drop on fire alarm, for evacuation
- LED shows entrance, exit and passing status
- Entering and exiting, I/O for any access system
Key specs
- One 550 mm lane, entering and exiting
- 25 to 60 persons per minute
- MCBF 2 million or more
- Arms drop automatically on fire alarm, for evacuation
- LED shows entrance, exit and passing status
- Access controller not included; I/O for any access system
- SUS304 stainless steel 1.0 mm (mostly); IPX4
- 100-120 / 200-240 VAC; 25 W standby, 35 W working, 45 W peak
- -20 to 65 °C; 1200 x 233 x 1000 mm, 30.6 kg
| System | |
|---|---|
| MCBF | ≥ 2 million times |
| Interface | |
| Exit button | Main: 1; Sub: 1 |
| Fire alarm input | 1 |
| Hardware | |
| Access controller | Not supplied |
| Function | |
| Keyfob | Not support |
| Direction | Bidirectional (entering / exiting) lane |
| Third-party integration | I/O connection for a third-party access system |
| Fire alarm passing | When triggered, the arms drop automatically for emergency evacuation |
| General | |
| Throughput | 25 to 60 persons per minute (the actual throughput depends on the person passing rate and passing method) |
| Lane width | 550 mm (21.65") |
| Pedestal material | SUS304 stainless steel 1.0 mm (mostly) |
| Indicator | Lane status indicator, except Pg models |
| Power consumption | Standby: 25 W; working: 35 W; peak: 45 W |
| Working temperature | -20 °C to 65 °C (-4 °F to 149 °F) |
| Working humidity | 0% to 95% (no condensing) |
| Protective level | IPX4 |
| Dimensions | Without package: 1200 mm × 233 mm × 1000 mm (47.2" × 9.2" × 39.4"); with package: 1350 mm × 410 mm × 1120 mm (53.1" × 16.1" × 44.1") |
| Weight | Net: 30.58 kg; gross: 37.8 kg |
| Approval | CE / CB / RoHS / REACH / WEEE |
| Power supply | 100 to 120 VAC / 200 to 240 VAC, 50/60 Hz, 0.5 A to 1 A; adapter 100 to 240 VAC |
| Door open duration | 5 to 60 s |
| Power supply for face recognition module | Support |
| Accessory (optional) | |
| Card reader | DS-K7CR01 card reader for turnstiles and speed gates |
| Access board | DS-K3M210 |
Know before you buy
Quick answers about the DS-K3G301LX-R/Dm55, and how it compares.
Does it come with an access controller?
No. Hikvision supplies the turnstile without an access controller. Add the Hikvision DS-K7CR01 card reader (optional DS-K3M210 access board), or connect your existing access system through the turnstile I/O.
How many people can pass per minute?
25 to 60 persons per minute. The real figure depends on how fast people show their card or face and walk through.
What happens in a fire alarm?
The turnstile has a fire alarm input: when it is triggered, the arms drop automatically so people can leave.
Can it go outdoors?
It is rated IPX4 (protected against splashing water) and works from -20 to 65 °C. Hikvision lists offices, residences, construction sites and attractions as typical sites; for a fully open outdoor gate, ask us first.
Pg or plain version: what is the difference?
The Pg version takes a Hikvision face terminal (bought separately) and powers it; it has no LED status indicator. The plain version has the LED status indicator and works with a card reader or your access system.
Value or Pro tripod?
The Value DS-K3G301LX: MCBF 2 million, 25 to 60 persons per minute, SUS304 1.0 mm, IPX4. The Pro DS-K3G501BLX: MCBF 3 million, 30 to 60 persons per minute, SUS304 1.5 mm, outdoor (waterproof), and selectable open, closed, free access and forbidden modes.
How long does the lane stay open?
The door open duration is adjustable from 5 to 60 seconds.
