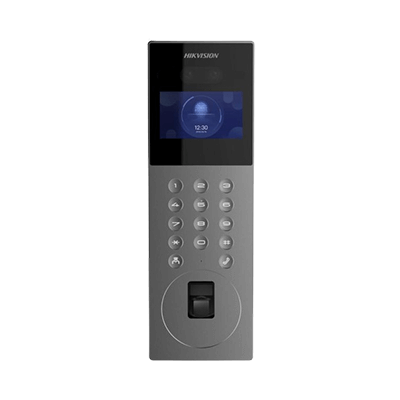

DS-KD9203-FE6
Hikvision DS-KD9203-FE6 Video Intercom Face Recognition Door Station with 4.3-inch colorful LCD screen, 2 × 2 MP wide-angle HD lens, User Capacity: 10000, Face Capacity: 5000, Card Capacity: 50000, Fingerprint capacity 5000, Built-in M1 card reading module, IR light: up to 3m, Built-in omnidirectional microphone, Built-in loudspeaker, Multiple interfaces: RJ45, RS-485, alarm input, relay, Wiegand, Convenient unlock methods: face, cards, PIN code and fingerprints, IP65 protection level.
Is our price higher than expected or showing as zero? Chat with us now for the best price and product availability. Prices if shown are inclusive of applicable taxes. Tax rate may be adjusted as per customer's taxation status. For supply of product only, excluding any cabling and/or installation. Shipping charges can sometimes vary.
Facial Recognition Door Station
Hikvision DS-KD9203-FE6 Video Intercom Face Recognition Door Station
Display
4.3-inch colorful LCD screen with 800 × 480 resolution
Application
Suitable for the scenarios of enterprise, apartments, offices, construction site, etc.
Camera
2 × 2 MP wide-angle HD lens
Interface
User Capacity: 10000, Face & Fingerprint Capacity: 5000, Card Capacity: 50000
Multiple authentication modes
Convenient unlock methods: face, cards, PIN code and fingerprints
System parameters |
|
Operation system |
Linux |
ROM |
1 GB |
RAM |
4 GB |
Processor |
Embedded high performance processor |
Display parameters |
|
Screen size |
4.3-inch |
Type |
Colorful LCD |
Resolution |
800 × 480 |
Video parameters |
|
Lens |
2 × 2 MP HD camera |
Resolution |
Main stream: 1080p@30fps, 720p@30fps Sub stream: VGA@25fps, VGA@30fps |
Wide dynamic range (WDR) |
Digital WDR/120 dB |
Supplement light |
IR light, up to 3 m |
Video compression standard |
H.264 |
Audio parameters |
|
Audio input |
1 built-in omnidirectional microphone |
Audio compression standard |
G.711 U, G.711 A |
Audio output |
1 built-in loudspeaker |
Audio compression bitrate |
64 Kbps |
Audio quality |
Noise suppression and echo cancellation |
Volume adjustment |
Adjustable |
Capacity |
|
User capacity |
10,000 |
Face capacity |
5000 |
Card capacity |
50,000 |
Fingerprint capacity |
5000 |
Network parameters |
|
Network protocol |
TCP/IP, RTSP |
Device interfaces |
|
Alarm input |
4 |
Network interface |
1 RJ-45 10/100/1000 Mbps self-adaptive |
TAMPER |
1 |
Exit button |
1 |
RS-485 |
2 RS-485 (Half duplex, HIKVISION) |
Lock control |
1 relay, Max. 30 VDC, 2 A |
Door contact input |
1 |
General |
|
Button |
Physical buttons |
Installation |
Flush mounting |
Weight |
Net weight: 1.05 kg Gross weight: 2.166 kg |
Protective level |
IP65 |
Working temperature |
-30 °C to 60 °C (-22 °F to 140 °F) |
Working humidity |
10% to 90% (no-condensing) |
Dimension (W × H × D) |
373 mm × 124 mm × 43.7 mm (14.69" × 4.88" × 1.72") |
Power supply |
12 VDC, 1.5 A |
Application environment |
Outdoor |
Power consumption |
≤ 13 W |
