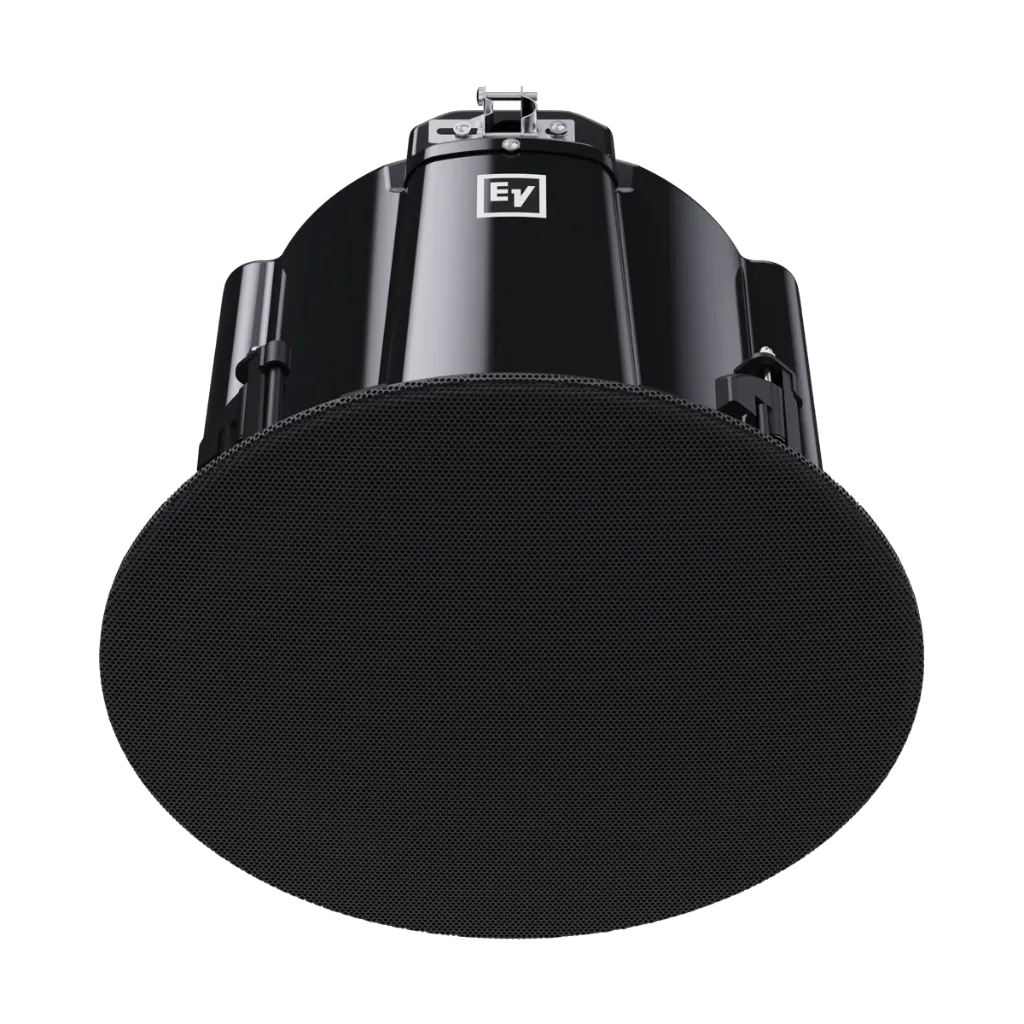

Electro‑Voice EVID‑C8.1S‑G2 Subwoofer
The Electro‑Voice EVID‑C8.1S‑G2 is a high‑performance 8‑inch ceiling subwoofer engineered for exceptional sound quality, reliability, and modern aesthetics. Perfect for commercial audio installations, it delivers powerful bass while blending seamlessly into any environment.
Available in white finish, with an optional black grille sold separately for design flexibility.
Electro-Voice EVID-C8.1S-G2 Product Highlights
Explore the key capabilities of the Electro-Voice EVID-C8.1S-G2 ceiling speaker.
Sound
8" subwoofer: 45 Hz to 380 Hz, up to 113 dB.
Coverage
360° conical coverage, 90 dB at 1 W.
70 V, 100 V or 8 Ohm
Taps 60/30/15/7.5 W, plus 3.75 W on 70 V, switch on the front baffle.
Installation
Cutout 12.7 in (322 mm), 240 mm deep. SwiftLock mount.
Build
IP34, UL 2043 plenum rated, bezel-less magnetic grille.
System
Adds bass under EVID-C8.2-G2 and EVID-EC6.2 satellites.
Key specs
- 8" subwoofer
- Taps 60/30/15/7.5 W, plus 3.75 W on 70 V (70 / 100 V), 8 ohm bypass
- 90 dB SPL at 1 W, 1 m; max 113 dB
- 45 Hz to 380 Hz (-10 dB)
- 360° conical coverage
- Cutout 12.7 in (322 mm), mounting depth 240 mm
- IP34, UL 2043 plenum rated
- 7.25 kg
- Power handling 180 W continuous, 720 W peak
Know before you buy
Quick answers about the EVID-C8.1S-G2, and how it compares.
Where does the EVID-C8.1S-G2 fit?
It is the ceiling subwoofer of the EVID range: bass from 45 Hz to 380 Hz at up to 113 dB under EVID-C8.2-G2 or EVID-EC6.2 satellites, with 360° coverage.
How is it powered on a 70 V or 100 V line?
Taps 60, 30, 15 and 7.5 W, plus 3.75 W on 70 V, or 8 ohm, set by a switch on the front baffle. Give it its own amplifier channel with a low-pass (see below).
How is it installed?
SwiftLock mount with a bezel-less magnetic grille, cutout 12.7 in (322 mm), 240 mm mounting depth, UL 2043 plenum rated.
How do I add bass to EVID ceiling speakers?
Add the EVID-C8.1S-G2 ceiling subwoofer (45 Hz to 380 Hz, 113 dB). Run it on its own amplifier channel with a low-pass, for example one channel of a V600:2 with its 150 Hz low-pass for the subwoofer and the other channel with the 100 Hz high-pass for the EVID-C8.2-G2 or EVID-EC6.2 satellites.
How do the EVID ceiling speakers compare?
| Model | Drivers | Max tap | Sensitivity | Max SPL | Frequency range | Coverage | Cutout | IP |
|---|---|---|---|---|---|---|---|---|
| EVID-EC3.1 | 3" one-way | 15 W | 84 dB | 100 dB | 90 Hz to 19 kHz | 135° | 7.2 in (183 mm) | IP45 |
| EVID-EC4.2 | 4" + 0.75" coaxial | 20 W | 89 dB | 106 dB | 80 Hz to 20 kHz | 130° | 7.2 in (183 mm) | IP34 |
| EVID-EC6.2 | 6.5" + 1" coaxial | 30 W | 92 dB | 110 dB | 80 Hz to 20 kHz | 110° | 10.7 in (272 mm) | IP34 |
| EVID-C8.2-G2 | 8" + 1" coaxial | 60 W | 90 dB | 110 dB | 60 Hz to 20 kHz | 90° | 10.7 in (272 mm) | IP34 |
| EVID-C8.1S-G2 | 8" subwoofer | 60 W | 90 dB | 113 dB | 45 Hz to 380 Hz | 360° | 12.7 in (322 mm) | IP34 |
| EVID-P6.2B | 6.5" + 1" pendant | 30 W | 87 dB | - | 60 Hz to 20 kHz | 115° | Pendant | Protected outdoor |
Frequency range at -10 dB, max SPL continuous. Every model takes 70 V or 100 V taps or 8 ohm.
Who supplies Electro-Voice in Pakistan, and what warranty do I get?
Electronic Security Company (ESCO) is the only authorized distributor of Bosch, Dynacord and Electro-Voice in Pakistan, so every Electro-Voice product we supply is genuine and comes with a 3-year warranty. Warranty is carry-in: bring the unit to an ESCO office and after inspection it is repaired or replaced as needed. We help with system design and installation. Prices are quoted per project: contact us for a quote, or see the full Electro-Voice range.
