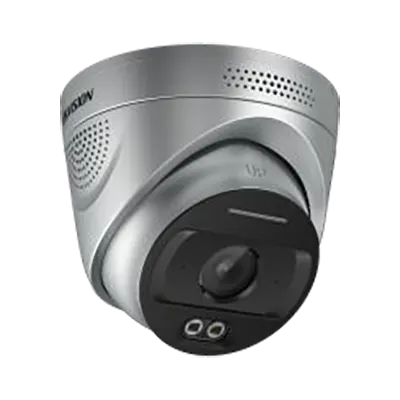

Multi-IR Flame Detection Camera
Hikfire HF-VR343 Multi-IR Sensor + Professional AI flame detector + 2 IR Ref 4MP Fire Detection Camera
AI Intelligent Detection
Support AI intelligent detection: Smoke & flame detection, Indoor access blocked alarm, On/off duty alarm, Dangerous goods detection, Dangerous behaviour detection, Fire Extinguisher Detection, Area Invasion Detection.
Audio
Built-in Speaker & Microphone, supports two-way voice intercom
Sensor Type
Infrared pyroelectric: 4.3 um + 3.8 um, further enhancing the accuracy of flame alarms.
Resolution
Main Stream: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream: 25 fps (704 × 576, 640 × 480，352 × 288)
Detector
Thermography Alarm Shielded Area: Configure four rectangular areas
1/2.7" Progressive Scan CMOS ,
Detection Range: within 30 meters(0.1 square meter fire pan)
Fire and Smoke Detection: Yes
IR Range
Supports 30m infrared illumination
Intelligent Fusion Camera
supporting flame detection by sensing changes in infrared signals around the flame, & capable of video verification.
|
Camera |
|
|
Sensor Type |
Infrared pyroelectric: 4.3um + 3.8 um |
|
Max. Resolution |
2688×1520 |
|
Main Stream |
25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
|
Sub Stream |
25 fps (704 × 576, 640 × 480, 352 × 288) |
|
Min. Illumination |
Color: 0.01 Lux @ (F1.6, AGC ON) |
|
Lens |
Horizontal: 78.96°, Vertical:43.17°, Diagonal: 93.31° |
|
Image Settings |
Saturation, brightness, contrast, sharpness, AGC and white balance can be adjusted through the client or browser |
|
Adjusted Angle |
Horizontal: 0° ~ 360°; Vertical: 0° ~ 70° |
|
WDR |
120 dB |
|
Shutter |
1/25 ~ 1/100,000 s |
|
Day/Night Switch |
IR cut filter |
|
Image Enhancement |
BLC, 3D DNR |
|
SVC Encoding |
H.264, H.265 |
|
H.265 |
Main Profile |
|
H.264 |
Main Profile / High Profile |
|
Main Stream Video Compression Standard |
H.265/H.264 |
|
Sub Stream Compression Standard |
H.265/H.264 |
|
Video Bitrate |
256Kbps ~ 8192Kbps |
|
General |
Anti flicker, Heartbeat, Mirror, Password protection |
|
Intelligent Alarm |
Smoke and flame detection, Indoor access blocked alarm, On/off duty alarm, Dangerous goods detection, Dangerous behaviour detection, Fire Extinguisher Detection, Area Invasion Detection |
|
Exception Detection |
Motion detection, Video tampering alarm, Network cable disconnection, IP address conflict, Invalid access, Full memory, Memory error |
|
WEB& Configuration |
Support web preview, configuration and parameter import/export |
|
Protocol |
TCP/IP, HTTP, HTTPS, DHCP, DNS, RTP, RTSP, RTCP, NTP, IPv4, UDP |
|
Storage |
Support MicroSD / MicroSDHC / MicroSDXC card (max. 256 G), disconnection local storge, NAS |
|
Interface Protocol |
ONVIF (PROFILE S, PROFILE G), ISAPI, EZVIZ |
|
IR Range |
30 m |
|
Accessory Type |
Wall mounted support, pendent support, universal joint |
|
Detector |
|
|
Thermography Alarm Shielded Area |
Configure four rectangular areas |
|
Image Sensor |
1/2.7" Progressive Scan CMOS |
|
Alarm Indicator Light |
One, Red: Alarm; Yellow: Fault; Green: Normal |
|
Detection Range |
within 30 meters (0.1 square meter fire pan) |
|
Fire and Smoke Detection |
Yes |
|
Function |
|
|
Remote Silence |
Yes |
|
Interface |
|
|
Alarm Interface |
2-way alarm input (Alarm in), 2-way alarm out (Alarm out) |
|
Audio Interface |
1 built-in microphone, 1 built-in speaker, Supports voice intercom |
|
Auxiliary Power Interface |
Supports DC 12V output, power 1W |
|
Ethernet Interface |
1 RJ45 10 M/100 M adaptive Ethernet port |
|
General |
|
|
Power |
DC 12V ± 25% |
|
Dimension (φ × H) |
Φ130× H101mm |
|
Weight |
407g |
|
Execution Standard |
Q/HKD 006-2019 |
|
Mounting Height |
Wall mounted: 2.4 m~2.8 m, Pendent: 3.3 m~6 m |
|
Ingress Protection |
IP67 |
|
Communication Mode |
HF-VR343: LAN |
