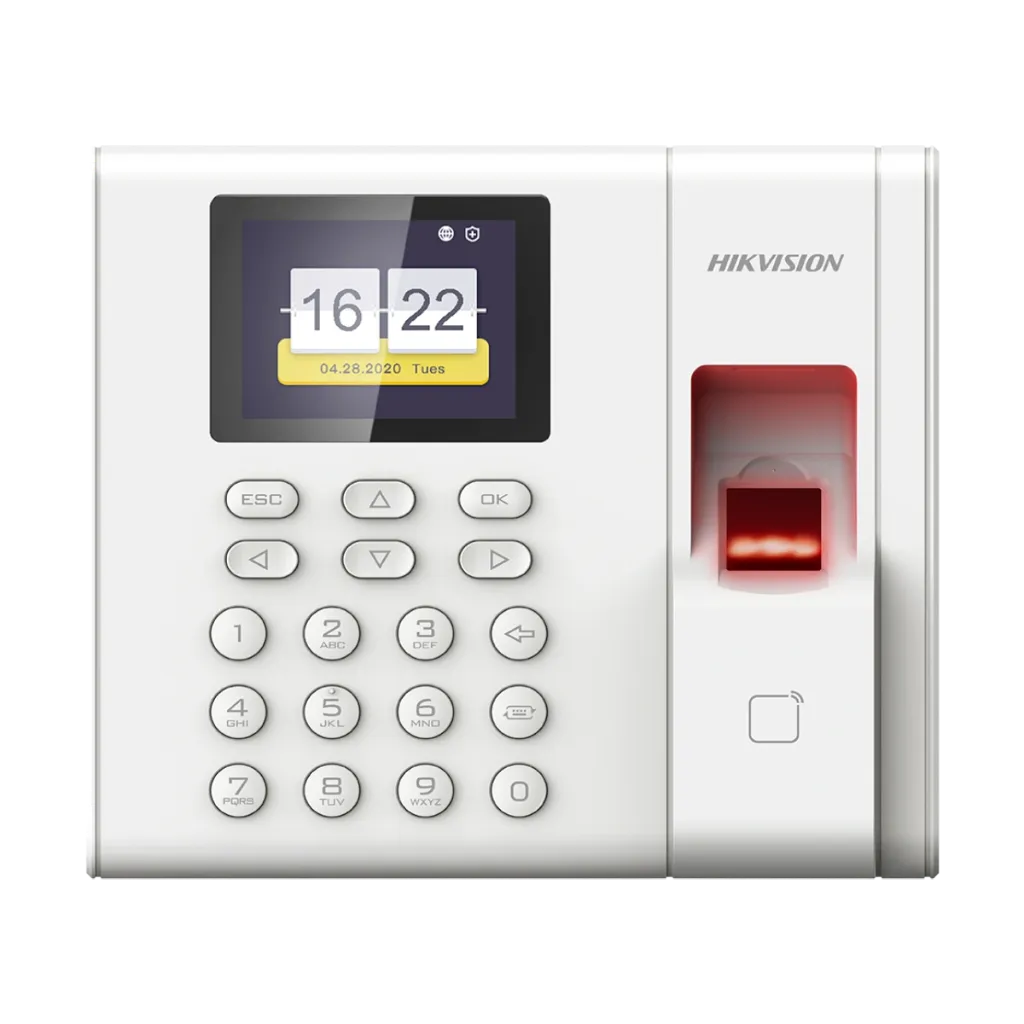

DS-K1A8503EF-B
Fingerprint time attendance, works on its own
- Clock in by fingerprint and EM card
- 1,000 users, 100,000 records
- Reports by USB stick, no software needed
- 32 shifts and 6 attendance statuses
DS-K1A8503EF-B
Fingerprint time attendance, works on its own
- Clock in by fingerprint and EM card
- 1,000 users, 100,000 records
- Reports by USB stick, no software needed
- 32 shifts and 6 attendance statuses
Key specs
- Clock in by fingerprint and EM card
- 2.4 inch LCD screen
- 1,000 fingerprints, 1,000 cards, 100,000 events
- Works on its own: reports by USB stick, 32 shifts, 6 attendance statuses
- Ethernet
- 5 VDC 1 A; backup battery supported
- -10 to 55 °C, indoor; 140 x 155 x 30 mm
| System | |
|---|---|
| Operating system | Linux |
| Display | |
| Screen size | 2.4-inch |
| Type | LCD-TFT display screen |
| Audio | |
| Audio output | 1 loudspeaker, 1 buzzer |
| Network | |
| Wired network | TCP/IP, 10/100Mbps, self-adaptive |
| Interface | |
| Network interface | 1 |
| USB | 1 |
| Capacity | |
| Card capacity | 1000 |
| Fingerprint capacity | 1000 |
| Event capacity | 100,000 |
| Authentication | |
| Card type | EM card |
| Card reading distance | 0 to 3.5 cm |
| Fingerprint module | Optical fingerprint module |
| Fingerprint comparing mode | 1:1 and 1:N |
| Fingerprint recognition duration | < 1 s |
| Fingerprint False Acceptance Rate (FAR) | ≤ 0.001 % |
| Fingerprint False Rejection Rate (FRR) | ≤ 0.01 % |
| General | |
| Battery | Support |
| Power supply | 5 VDC/1 A |
| Working temperature | -10 °C to +55 °C (14 °F to +131 °F) |
| Working humidity | 10% to 90% (no condensing) |
| Color | White |
| Dimensions | 140 mm × 155 mm × 30 mm (5.51" × 6.01" × 1.18") |
| Application environment | Indoor |
| Installation | Wall mounting |
Know before you buy
Quick answers about the DS-K1A8503EF-B, and how it compares.
Do I need software for the attendance reports?
No. Add staff and shifts on the terminal and copy the reports to a USB stick: up to 32 shifts and 6 statuses (check in, check out, break in, break out, overtime in, overtime out). It does not open doors; for that, see our fingerprint terminals.
Which cards does it read?
EM card (125 kHz). EM (125 kHz) cards carry only an ID number; Mifare (13.56 MHz) cards can hold data and are harder to copy. Choose the version that matches the cards your site already uses. The Mifare version is the DS-K1A8503MF-B.
How many people can it store?
1,000 fingerprints, 1,000 cards and 100,000 events. Each person can have fingerprints and a card.
What happens in a power cut?
It supports a backup battery, so attendance carries on through a power cut.
Can I buy it online?
Access control is an installed product, so we start with a free pre-sales consultation: our engineers confirm the right terminal and accessories for your site and send a quote. Use Request a Quote on this page, contact us or WhatsApp +92 300 ESCO 301. Offices in Karachi, Lahore, Islamabad and Rawalpindi.
