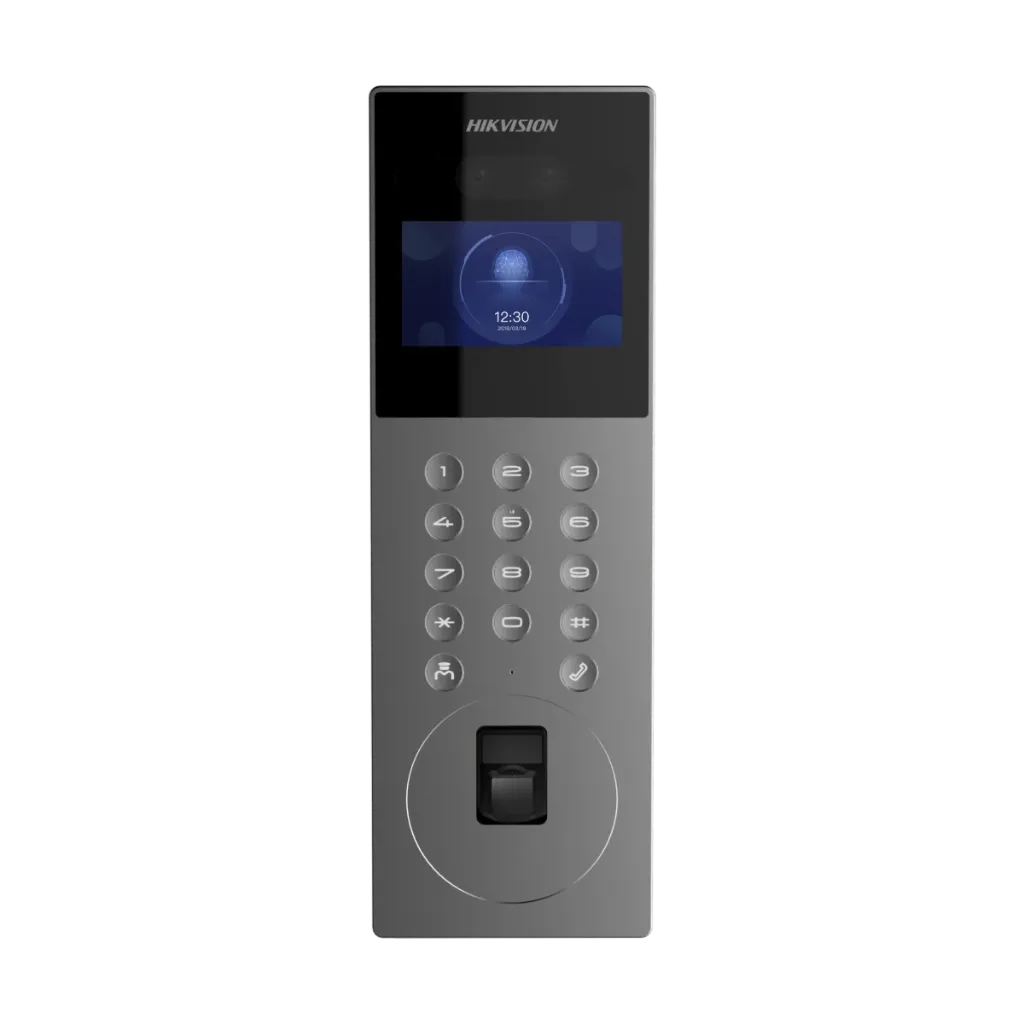

DS-KD9203-FE6
Ultra face recognition door station, 4.3-inch screen
- Opens by face, card, PIN or fingerprint
- 5,000 faces, 50,000 cards, 5,000 fingerprints
- 2 x 2MP wide-angle lens, IR light 3 m
- IP65, 2 lock relays
DS-KD9203-FE6
Ultra face recognition door station, 4.3-inch screen
- Opens by face, card, PIN or fingerprint
- 5,000 faces, 50,000 cards, 5,000 fingerprints
- 2 x 2MP wide-angle lens, IR light 3 m
- IP65, 2 lock relays
Key specs
- Face recognition door station, 4.3-inch screen (800 x 480), 2 x 2MP wide-angle lens
- Unlock by face, Mifare card, PIN code or fingerprint
- 5,000 faces, 50,000 cards, 5,000 fingerprints, 10,000 users
- IR light up to 3 m
- 2 lock relays (30 VDC, 2 A), exit button, door contact, 4 alarm inputs
- Gigabit network, RS-485, Wiegand
- IP65; -30 to 60 °C
- 12 VDC, 1.5 A
|
System parameters |
|
|
Operation system |
Linux |
|
ROM |
1 GB |
|
RAM |
4 GB |
|
Processor |
Embedded high performance processor |
|
Display parameters |
|
|
Screen size |
4.3-inch |
|
Type |
Colorful LCD |
|
Resolution |
800 × 480 |
|
Video parameters |
|
|
Lens |
2 × 2 MP HD camera |
|
Resolution |
Main stream: 1080p@30fps, 720p@30fps Sub stream: VGA@25fps, VGA@30fps |
|
Wide dynamic range (WDR) |
Digital WDR/120 dB |
|
Supplement light |
IR light, up to 3 m |
|
Video compression standard |
H.264 |
|
Audio parameters |
|
|
Audio input |
1 built-in omnidirectional microphone |
|
Audio compression standard |
G.711 U, G.711 A |
|
Audio output |
1 built-in loudspeaker |
|
Audio compression bitrate |
64 Kbps |
|
Audio quality |
Noise suppression and echo cancellation |
|
Volume adjustment |
Adjustable |
|
Capacity |
|
|
User capacity |
10,000 |
|
Face capacity |
5000 |
|
Card capacity |
50,000 |
|
Fingerprint capacity |
5000 |
|
Network parameters |
|
|
Network protocol |
TCP/IP, RTSP |
|
Device interfaces |
|
|
Alarm input |
4 |
|
Network interface |
1 RJ-45 10/100/1000 Mbps self-adaptive |
|
TAMPER |
1 |
|
Exit button |
1 |
|
RS-485 |
2 RS-485 (Half duplex, HIKVISION) |
Lock control |
1 relay, Max. 30 VDC, 2 A |
|
Door contact input |
1 |
|
General |
|
|
Button |
Physical buttons |
|
Installation |
Flush mounting |
|
Weight |
Net weight: 1.05 kg Gross weight: 2.166 kg |
|
Protective level |
IP65 |
|
Working temperature |
-30 °C to 60 °C (-22 °F to 140 °F) |
|
Working humidity |
10% to 90% (no-condensing) |
|
Dimension (W × H × D) |
373 mm × 124 mm × 43.7 mm (14.69" × 4.88" × 1.72") |
|
Power supply |
12 VDC, 1.5 A |
|
Application environment |
Outdoor |
|
Power consumption |
≤ 13 W |
Know before you buy
Quick answers about the DS-KD9203-FE6, and how it compares.
What cable does it need?
A network cable (Cat5e or Cat6) to a switch. It is powered by 12 VDC.
Can it open the door or gate?
Yes. It has 2 lock relays (30 VDC, 2 A), an exit button input and a door contact input.
Can I buy it online?
Video intercom is an installed product, so we start with a free pre-sales consultation: our engineers confirm the right kit or stations for your villa or building and send a quote. Use Request a Quote on this page, contact us or WhatsApp +92 300 ESCO 301. Offices in Karachi, Lahore, Islamabad and Rawalpindi.
