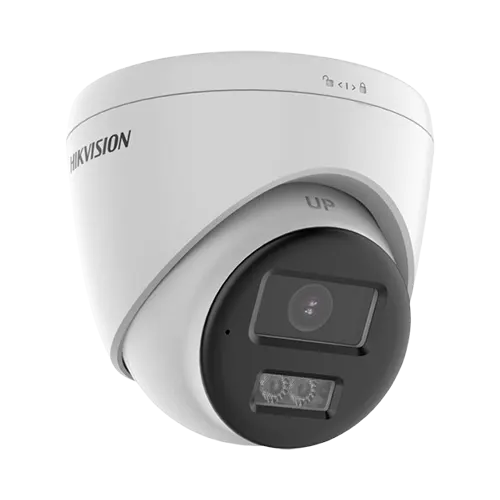

DS-2CE78D0T-LXTS
2MP Smart Hybrid Light Turbo HD Turret Camera with Two-Way Talk, 2.8 mm lens
- Smart Hybrid Light: IR up to 40 m, white light up to 40 m
- Speaker with two-way talk: built-in mic and speaker
- Talk through it with a /T DVR, on the same coax cable
- Strobe light and siren to warn intruders
DS-2CE78D0T-LXTS
2MP Smart Hybrid Light Turbo HD Turret Camera with Two-Way Talk, 2.8 mm lens
- Smart Hybrid Light: IR up to 40 m, white light up to 40 m
- Speaker with two-way talk: built-in mic and speaker
- Talk through it with a /T DVR, on the same coax cable
- Strobe light and siren to warn intruders
Key specs
- 2MP (1920 × 1080), 2.8 mm fixed lens
- Smart Hybrid Light: IR up to 40 m, white light up to 40 m
- Built-in microphone and speaker: two-way talk over coax with a /T DVR
- Strobe light and audio alarm (siren)
- Turret camera, IP67 weatherproof
- Turbo HD (HDTVI) over coax: records at the quality the DVR supports
|
Camera |
|
|
Image Sensor |
2 MP CMOS |
|
Max. Resolution |
1920 (H) × 1080 (V) |
|
Min. Illumination |
0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR |
|
Shutter Time |
PAL: 1/12.5 s to 1/50,000 s, NTSC: 1/15 s to 1/50, 000 s |
|
Day & Night |
ICR |
|
Angle Adjustment |
Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
|
Signal System |
PAL/NTSC |
|
Lens |
|
|
Lens Type |
2.8 mm fixed lens |
|
Focal Length & FOV |
2.8 mm, horizontal FOV: 105°, vertical FOV: 59°, diagonal FOV: 127°; |
|
Lens Mount |
M12 |
|
Microphone |
|
|
Pickup Distance |
In a radius of up to 5 m |
|
Speaker |
|
|
Rated Power |
2 W |
|
Speaker Range |
In a radius of up to 5 m |
|
Illuminator |
|
|
Supplement Light Type |
Smart, IR, White Light |
|
Supplement Light Range |
IR: Up to 40 m, White Light: Up to 40 m |
|
Image |
|
|
Image Settings |
Anti-banding, Brightness, Sharpness, Smart IR |
|
Frame Rate |
TVI: 1080p @25 fps/30 fps |
|
Day/Night Mode |
Auto/Color |
|
Wide Dynamic Range (WDR) |
Digital WDR |
|
Image Enhancement |
DWDR, BLC, HLC, Global HLS |
|
Noise Reduction |
2D DNR |
|
White Balance |
Auto, Manual |
|
Audio |
|
|
Audio Function |
Echo Cancellation, AI Noise Reduction, Automatic Gain Control |
|
Interface |
|
|
Video Output |
1 HD analog output |
|
Alarm |
Flashing Light Alarm |
|
General |
|
|
Power |
12 VDC ± 25%, max. 8.5 W, |
|
Material |
Main body: Metal; Enclosure: Plastic |
|
Dimension |
Ø110 mm × 102.7 mm (Ø4.33" × 4.04") |
|
Weight |
Approx. 385 g (0.85 lb.) |
|
Operating Condition |
-40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing) |
|
Communication |
HIKVISION-C |
|
Language |
English |
|
Approval |
|
|
Protection |
IP67 |
Know before you buy
Quick answers about the DS-2CE78D0T-LXTS 2.8mm, and how it compares.
Will it record at its full resolution?
Only if the DVR can. A Turbo HD camera sends its picture over coax and the DVR decides how it is recorded. "Lite" is not the full resolution: 1080p Lite is 960 × 1080, half the width of 1080p, like selling 500 mL of milk as "1 L Lite". Value DVRs record 1080p Lite; AcuSense DVRs record 1080p at 15 fps (3K / 5MP Lite at 12 fps), and some record 1080p at 30 fps. Key Specs on each DVR page shows its recording.
Does it record sound?
Yes. The built-in microphone sends sound over the same coax cable, so no extra audio wire is needed. Key Specs on each DVR page shows how many channels take sound over coax.
Can I talk through this camera?
Yes. It has a microphone and a speaker. Connect it to a Hikvision /T DVR (two-way audio over coax): video, two-way audio, alarm and siren all run on the one coax cable, and you speak through the DVR or its app.
Does the camera detect people and vehicles?
Not by itself. Turbo HD cameras have no AI. An AcuSense DVR adds people and vehicle alerts (Motion Detection 2.0) and perimeter protection on the channels its spec lists. For AI inside the camera, see Hikvision IP cameras.
ColorVu, Smart Hybrid Light or Infrared: what is the difference?
ColorVu lights the scene with soft white light for full colour at night. Smart Hybrid Light uses invisible IR (black and white) and can switch to white light for colour. Infrared (EXIR) gives black and white night video with no visible light.
Turbo HD or IP cameras: which should I choose?
Turbo HD is the budget choice, but the DVR sets the recording quality, AI runs only on the DVR, and every camera needs its own coax cable back to the recorder, so moving or adding cameras later means new wiring. IP cameras record at their full resolution, have AI built in, and run video, power (PoE) and audio on one network cable. For more than 16 cameras, IP is the better fit.
Can I buy this camera online?
Hikvision Turbo HD cameras are installed products, so we start with a free pre-sales consultation: our engineers suggest the cameras, DVR and hard disk for your site and send a quote. Use Request a Quote on this page, contact us or WhatsApp +92 300 ESCO 301. Offices in Karachi, Lahore, Islamabad and Rawalpindi.
