Hikvision iDS-7216HQHI-M1/FA 16 Channels AcuSense DVR, Supports false alarm reduction based on deep learning algorithm, Face picture comparison, face picture search, Up to 16 face picture libraries, with up to 500 face pictures in total, Parameter Protection Up to 4 ch, IP Video Input: 2-ch (up to 18-ch on Enhanced IP Mode), 1 SATA interface, up to 10 TB capacity for each disk, 12 VDC, 2 A.
| Type: Turbo HD |
| DVR Series: 7200HQH |
| Technology: AcuSense |
| A.I. Features: Face Recognition |
| Channels: 16-32 Ch |
| SATA Interfaces (HDD Slots): 1 HDD Slot |
AcuSense DVR

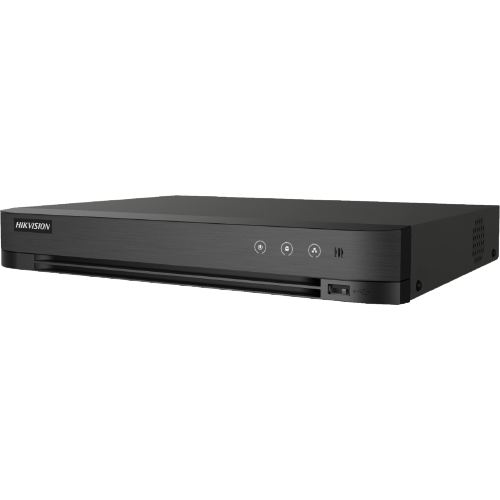

Hikvision iDS-7216HQHI-M1/FA 16 Channels AcuSense DVR
Encoding Resolution
Encoding ability up to 1080p @ 15 fps
Face Picture Comparison and Search
Supports face picture comparison and face picture search
Up to 16 face picture libraries, with up to 500 face pictures in total
False Alarm Reduction
Up to 4-ch False Alarm Reduction through human/vehicle False alarm reduction
Video Output
HDMI/VGA simultaneous output
IP Camera Input
IP Video Input: 2-ch (up to 18-ch on Enhanced IP Mode)
Smart Function
Deep learning-based motion detection, and perimeter protection (line crossing and intrusion detection)
Interface
Audio via coaxial cable, 1 SATA Interface
|
Facial Recognition |
|
|
Face Picture Comparison |
Face picture comparison, face picture search (1-ch face picture comparison alarm for HD analog camera) |
|
Face Picture Library |
Up to 16 face picture libraries, with up to 5000 face pictures in total (each picture ≤ 1 MB, total capacity ≤ 55 MB) |
|
Motion Detection 2.0 |
|
|
Human/Vehicle Analysis |
Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported; |
|
Perimeter Protection |
|
|
Human/Vehicle Analysis |
Up to 4-ch |
|
Recording |
|
|
Video Compression |
H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 |
|
Encoding Resolution |
When 1080p Lite mode is not enabled: 3K lite / 5 MP lite / 4 MP lite / 1080p / 720p When 1080p Lite mode is enabled: 3K lite / 5 MP lite / 4 MP lite / 1080p lite / 720p lite |
|
Video Bitrate |
32 Kbps to 6 Mbps |
|
Dual-stream |
Support |
|
Stream Type |
Video, Video & Audio |
|
Audio Compression |
G.711u |
|
Audio Bitrate |
64 Kbps |
|
Video and Audio |
|
|
IP Video Input |
2-ch (up to 18-ch) Enhanced IP mode on: 8-ch (up to 24-ch), each up to 4 Mbps Up to 6 MP resolution Support H.265+ / H.265 / H.264+ / H.264 IP cameras |
|
Analog Video Input |
16-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection |
|
HDMI Output |
1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, HDMI/VGA simultaneous output |
|
VGA Output |
1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, HDMI/VGA simultaneous output |
|
Audio Input |
1-ch (up to 16-ch is optional), RCA (2.0 Vp-p, 1 KΩ) 16-ch via coaxial cable |
|
Audio Output |
1-ch, RCA (Linear, 1 KΩ) |
|
Two-Way Audio |
1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) |
|
Synchronous playback |
16-ch |
|
Network |
|
|
Remote Connection |
128 |
|
Total Bandwidth |
128 Mbps |
|
Network Protocol |
TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
|
Network Interface |
1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface |
|
Auxiliary Interface |
|
|
SATA |
1 SATA interface, up to 10 TB capacity for each disk |
|
Serial Interface |
RS-485 (half-duplex) |
|
USB Interface |
Front panel: 1 × USB 2.0; Rear panel: 1 × USB 3.0 |
|
Alarm In/Out |
N/A (optional to support) |
|
General |
|
|
Power Supply |
12 VDC, 2 A |
|
Consumption |
≤ 24 W |
|
Working Temperature |
-10 °C to 55 °C (14 °F to 131 °F) |
|
Working Humidity |
10% to 90% |
|
Dimension (W × D × H) |
315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch) |
