iDS-7204HQHI-M1/FA
iDS-7204HQHI-M1/FA
Hikvision iDS-7204HQHI-M1/FA 4-ch 1080p 1U H.265 AcuSense DVR, 4 channels and 1 HDD 1U AcuSense DVR, Supports facial recognition or false alarm reduction based on deep learning algorithm, Supports face picture comparison and face picture search, Human/Vehicle Analysis: Up to 2-ch, Up to 16 face picture libraries, with up to 500 face pictures in total, Efficient H.265 pro+ compression technology, Encoding ability up to 1080p @ 15 fps, 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP), Up to 6 network cameras can be connected in Enhanced IP Mode, 12 VDC, 1.5 A.
AcuSense DVR

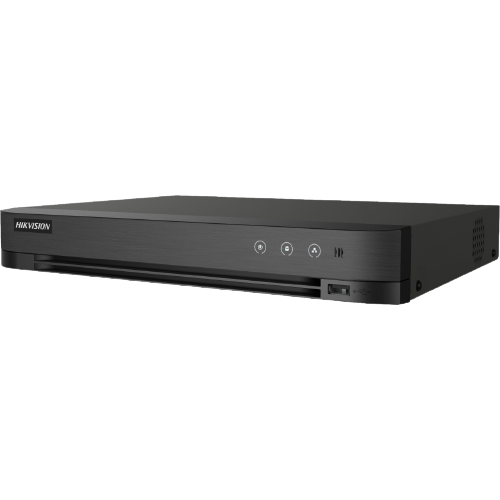

Hikvision iDS-7204HQHI-M1/FA 4-ch 1080p 1U H.265 AcuSense DVR
Encoding Resolution
Encoding ability up to 1080p @ 15 fps
Face Picture Comparison and Search
Supports face picture comparison and face picture search
Up to 16 face picture libraries, with up to 500 face pictures in total
False Alarm Reduction
Up to 2-ch False Alarm Reduction through human/vehicle False alarm reduction
Video Output
HDMI/VGA simultaneous output
IP Camera Input
2-ch (up to 6-ch), each up to 4 Mbps
Smart Function
Deep learning-based motion detection, and perimeter protection (line crossing and intrusion detection)
Interface
Audio via coaxial cable, 1 SATA Interface
Face Picture Comparison and Search | |
Face picture comparison | Face picture comparison, face picture search (1-ch face picture comparison alarm for HD analog camera) |
Face picture library | Up to 16 face picture libraries, with up to 500 face pictures in total (each picture ≤ 1 MB, total capacity ≤ 80 MB) |
Motion Detection 2.0 | |
Human/Vehicle Analysis | Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights; Quick search by object or event type is supported; |
Perimeter Protection | |
Human/Vehicle Analysis | Up to 2-ch |
Recording | |
Video compression | H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264 |
Encoding resolution | Main stream: When 1080p lite mode not enabled: For 4 MP stream access: 4 MP [email protected] fps; 1080p lite / 720p @25 fps (P)/30 fps (N) For 3 MP stream access: 3 MP / 1080p / 720p / VGA @ 15 fps For 1080p stream access: 1080p/[email protected] fps; VGA / WD1 @25 fps (P) / 30 fps (N) For 720p stream access: 720p / VGA / WD1 @25 fps (P)/30 fps (N) When 1080p Lite mode enabled: 4 MP lite/3 [email protected] fps; 1080p lite / 720p lite / VGA @ 25 fps (P)/30 fps (N) |
Sub-stream: WD1 / [email protected] fps; [email protected] fps (P) / 30 fps (N) | |
Video bitrate | 32 Kbps to 6 Mbps |
Dual stream | Support |
Stream type | Video, Video & Audio |
Audio compression | G.711u |
Audio bitrate | 64 Kbps |
Video and Audio | |
IP video input | 1-ch (up to 5-ch) Enhanced IP mode on: 2-ch (up to 6-ch), each up to 4 Mbps |
Up to 6 MP resolution | |
Support H.265+/H.265/H.264+/H.264 IP cameras | |
Analog video input | 4-ch |
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection | |
HDTVI input | 4 [email protected] fps, 4 [email protected] fps, 3 [email protected] fps, [email protected] fps, [email protected] fps, [email protected] fps, [email protected] fps, [email protected] fps, [email protected] fps *: The 3 MP signal input is only available for channel 1 of iDS-7204HQHI-M1/FA |
AHD input | 4 MP, [email protected] fps, [email protected] fps, [email protected] fps, [email protected] fps |
HDCVI input | 4 MP, [email protected] fps, [email protected] fps, [email protected] fps, [email protected] fps |
CVBS input | PAL/NTSC |
CVBS output | 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
HDMI/VGA output | 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, HDMI/VGA simultaneous output |
Audio input | 1-ch (up to 4-ch is optional), RCA (2.0 Vp-p, 1 KΩ) |
4-ch via coaxial cable | |
Audio output | 1-ch, RCA (Linear, 1 KΩ) |
Two-way audio | 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input) |
Synchronous playback | 4-ch |
Network | |
Remote connection | 32 |
Network protocol | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF |
Network interface | 1, RJ45 10/100 Mbps self-adaptive Ethernet interface |
Wi-Fi | Connectable to Wi-Fi network by Wi-Fi dongle through USB interface |
Auxiliary interface | |
SATA | 1 SATA interface, up to 10 TB capacity for each disk |
Serial interface | RS-485 (half-duplex) |
USB interface | Front panel: 1 × USB 2.0; Rear panel: 1 × USB 2.0 |
Alarm in/out | N/A (optional to support) |
General | |
Power supply | 12 VDC, 1.5 A |
Consumption (without HDD) | ≤ 18 W |
Working temperature | -10 °C to 55 °C (14 °F to 131 °F) |
Working humidity | 10% to 90% |
Dimension (W × D × H) | 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch) |
Weight (without HDD) | ≤ 1.16 kg (2.6 lb) |
