LBB1956/00

The Bosch LBB1956/00 is a six-zone call station for the PLENA Voice Alarm System. It lets operators make live announcements to selected zones or page all zones at once. Optional LBB1957/00 keypads add selection buttons for more zones or zone groups

Rs. 0 Rs. 0

  • Brand - BOSCH
BOSCH
BOSCH

Global leader in Public Address, Voice Evacuation and Conference Systems.

Bosch PLENA voice alarm rack in a building lobby with people on a staircase Bosch, Invented for life

The fast route to safety

PLENA Public Address and Voice Alarm System

LBB1956/00

PLENA voice alarm components

LBB1956/00 PLENA Voice Alarm Call Station

Six-zone call station with all-call and PTT keys, condenser microphone on a flexible stem, selectable gain, speech filter and limiter.

  • 6 Zones + All-Call
  • Up to 8 LBB1957/00 Keypads
  • Metal Base, Flush Mountable
  1. LBB1990/00 Controller

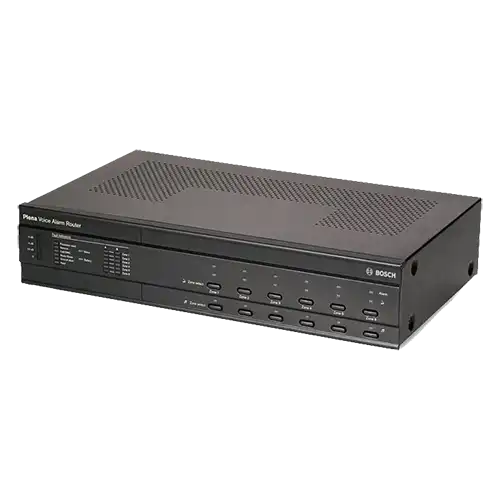

  2. LBB1992/00 Router

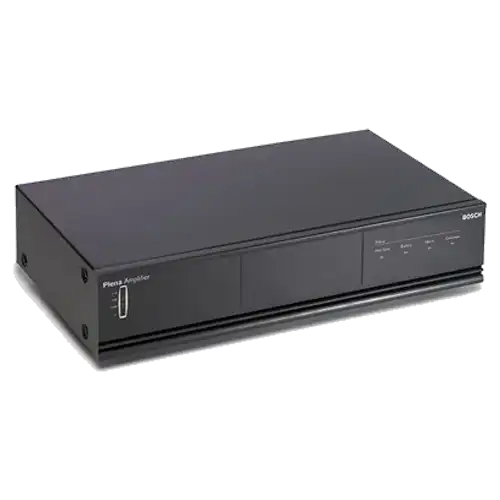

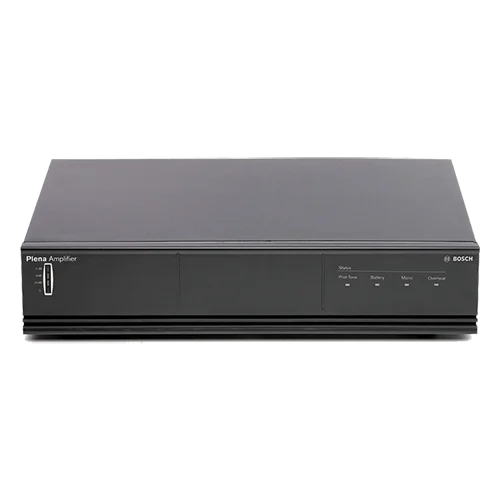

  3. LBB193x/xx Amplifiers
  4. LBB1956/00 Call Station
  5. LBB1957/00 Keypad
  6. LBB1995/00 Fireman's Panel · ask us

BOSCH · PLENA VOICE ALARM

Bosch LBB1956/00 Capabilities

  • Six-Zone Paging

    Select one or more loudspeaker zones with six dedicated keys, or use All-Call to page every zone.

  • Live Push-to-Talk

    Adjust the flexible gooseneck and hold the push-to-talk key to make a live announcement. The call station supports WAV chimes and seven call priorities.

  • Zone and System LEDs

    See which zones are selected and when the microphone is active. Amber indicates a system fault, and red indicates emergency state.

  • Expandable Zone Selection

    Connect optional LBB1957/00 keypads to add selection keys for more zones or zone groups.

  • Speech Adjustment

    Adjust microphone gain and select the speech filter to suit the installation. The built-in limiter controls peaks in the speech signal.

  • Tabletop or Flush Mounting

    Place the metal base on a desk or flush-mount it into a desktop for a fixed paging position.

How Zone Paging Works

Use the Bosch LBB1956/00 to make live announcements to selected areas or all zones in your PLENA system.

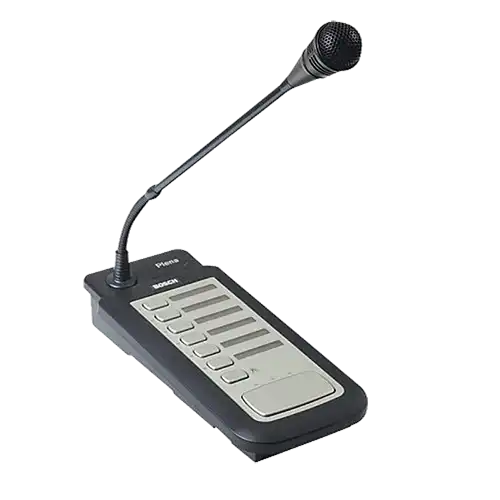

Bosch LBB1956/00 PLENA call station with gooseneck microphone and zone selection keys

Page selected areas

Use the zone keys to choose where your announcement will play. A green LED beside a zone key shows that it’s selected. For example, reception can page the dispatch area when a delivery arrives.

Page the whole site

Press All-Call to select all zones. Use it for a site-wide announcement such as a closing notice.

Press and hold Push-to-Talk. If a start chime is configured, wait for it to finish. Speak when the microphone status light is steady green, then release the button when you’re done.

bosch-lbb1956-00-datasheet.pdf
Download
bosch-lbb1956-00-eu-declaration-of-conformity.pdf
Download
bosch-plena-voice-alarm-system-installation-operation-manual.pdf
Download

Key specs

  • 6 built-in zone keys plus a dedicated All-Call key
  • Momentary push-to-talk with a flexible gooseneck microphone
  • Up to 8 optional LBB1957/00 keypads, each adding 7 zone or zone-group keys
  • LED indicators for zone selection, microphone activity, system faults and emergency state
  • Up to 1,000 m from the PLENA controller via CAT-5 extension cables
  • Tabletop or flush-desktop mounting
Chat on WhatsApp

Bosch LBB1956/00 Technical Specifications

System & Paging

SpecificationDetails
SystemBosch PLENA Voice Alarm System
Call station typeSix-zone call station
Zone selection6 built-in zone keys with individual LEDs
All-callDedicated key to select all zones
Push-to-talkMomentary PTT key with status LED
Keypad expansionUp to 8 optional LBB1957/00 keypads per call station
Keys per expansion keypad7 additional zone or zone-group keys
Call priority levels7
Chime sourceWAV file

Power & Connectivity

SpecificationDetails
Controller-supplied power24 V DC from the LBB1990/00
External power supply18–24 V DC or AC
Current consumption<30 mA, plus <15 mA per connected keypad
System connectors2 × RJ45
Other connectionsExternal power input and keypad connector
Audio outputBalanced line-level output
Maximum distance from controllerUp to 1,000 m using CAT-5 extension cables

Audio Performance

SpecificationDetails
Microphone typeUnidirectional condenser
Frequency response100 Hz to 16 kHz
Nominal sensitivity85 dB SPL at the 0 dB gain preset
Maximum input sound level110 dB SPL
Nominal output level700 mV
Gain presets+6 dB, 0 dB and −15 dB
Limiter threshold2 V
Limiter compression ratio1:20
Distortion<0.6% at maximum input
Equivalent input noise25 dB SPL, A-weighted
Speech filterHigh-pass, −3 dB at 315 Hz, 6 dB/octave
Output impedance200 Ω

Controls & Indicators

SpecificationDetails
Configuration switches8 DIP switches for microphone gain, call station ID and speech filter
Level adjustmentService-accessible rotary control for microphone attenuation
Microphone statusFlashing green while the chime sounds, steady green when the microphone is active
System statusAmber for a detected fault, red for emergency state

Mechanical & Mounting

SpecificationDetails
Base constructionMetal
Base dimensions (H × W × D)40 × 100 × 235 mm
Stem length including microphone390 mm
Mounting optionsFreestanding tabletop or flush-mounted in a desktop
Cable length5 m
WeightApprox. 1 kg
ColourCharcoal with silver

Environmental & Compliance

SpecificationDetails
Operating temperature−10 °C to +45 °C
Storage temperature−40 °C to +70 °C
Relative humidity<95%
SafetyEN 60065
EMC emissionsEN 55103-1
EMC immunityEN 55103-2
European conformity markingCE

Included Items

ItemQuantity
Bosch LBB1956/00 PLENA Voice Alarm Call Station1
Cable with a lockable CAT-5 connector1
Questions & answers

Know before you buy

Quick answers about the LBB1956/00, and how it compares.

What is the Bosch LBB1956/00 used for?
The LBB1956/00 is a six-zone call station for the Bosch PLENA Voice Alarm System. Operators can make live announcements to selected loudspeaker zones or use the All-Call key to page all zones.
Can I add more zone keys to the LBB1956/00?
Yes. Each call station supports up to eight optional LBB1957/00 keypads. Each keypad adds seven selection keys that can be assigned to individual zones or zone groups.
How far can the call station be installed from the PLENA controller?
Bosch specifies up to 1,000 m from the controller using CAT-5 extension cables. The call station connects to the PLENA system through its RJ45 system ports.
Why does the green microphone LED flash before I can speak?
The green LED flashes while the pre-announcement chime is playing. When it turns steady green, the microphone is active and you can begin speaking.
Which should I choose, the LBB1956/00 call station or the LBB1950/10 tabletop microphone?
Choose the LBB1956/00 when the operator needs to select zones or make all-call announcements on a PLENA Voice Alarm System. Choose the LBB1950/10 for a tabletop push-to-talk microphone connected to a compatible phantom-powered PA input.
What comes with the Bosch LBB1956/00?
The package includes one LBB1956/00 call station and one 5 m cable with a lockable CAT-5 connector. The LBB1957/00 expansion keypad is an optional accessory.
Who is an authorized Bosch distributor in Pakistan, and how can I check the LBB1956/00 price?
Electronic Security Company (ESCO) is an authorized Bosch distributor in Pakistan. Contact ESCO for the current LBB1956/00 price, availability and a quotation.
