PRA-PSM24
PRA-PSM24
PRA-IM2A2
PRA-IM2A2

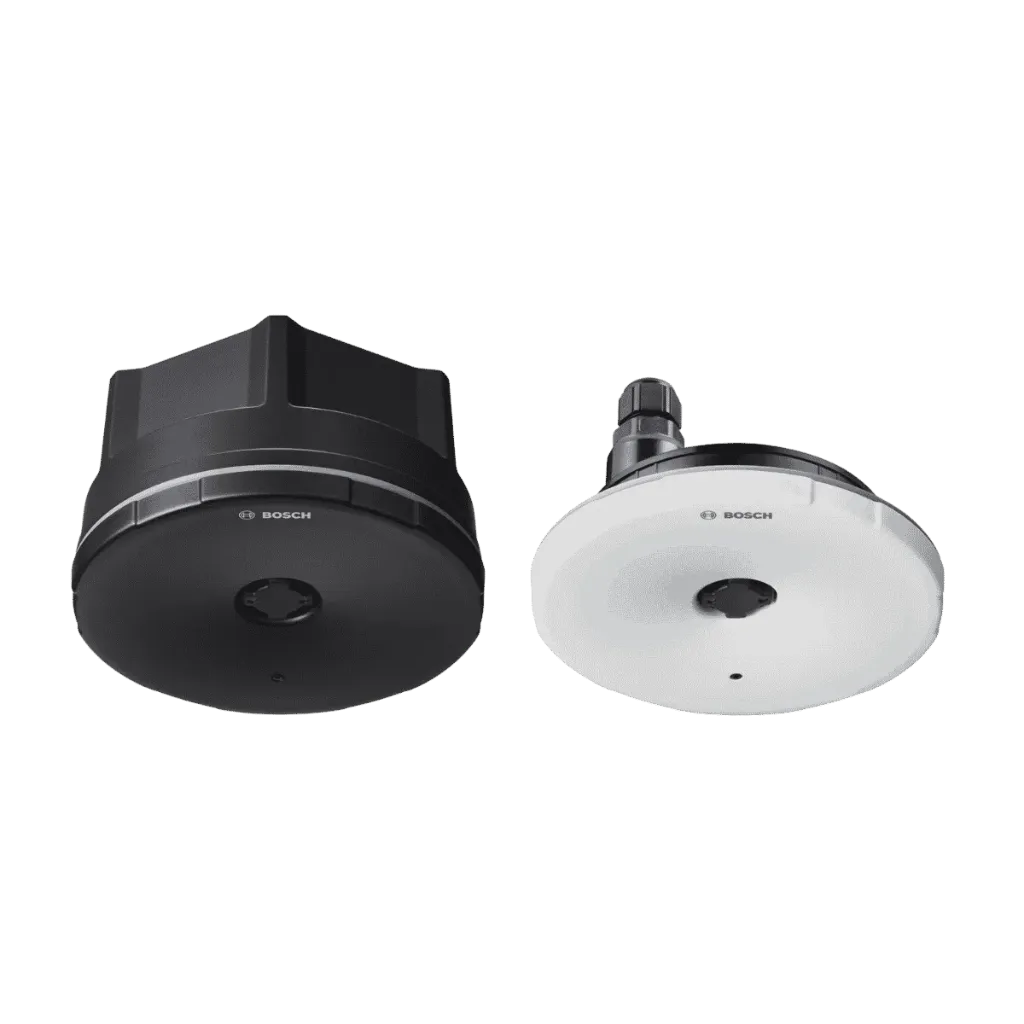

PRA-ANS

(0 reviews)

The Bosch PRA-ANS is the PRAESENSA ambient noise sensor: automatic volume control for announcements and music, sample-and-hold and tracking modes, IP65 for indoor and sheltered outdoor use, and up to 4 sensors per zone. Scroll down for details.

See full specs and details Have a question? 8 answered
Rs. 0 Rs. 0

  • Brand - BOSCH
Request a Quote
BOSCH
BOSCH

Global leader in Public Address, Voice Evacuation and Conference Systems.

Bosch PRAESENSA public address and voice alarm system: operator at a reception desk with the PRA-CSLD call station Bosch, Invented for life

IP-connected and fully-featured

PRAESENSA Public Address and Voice Alarm System

PRAESENSA system components

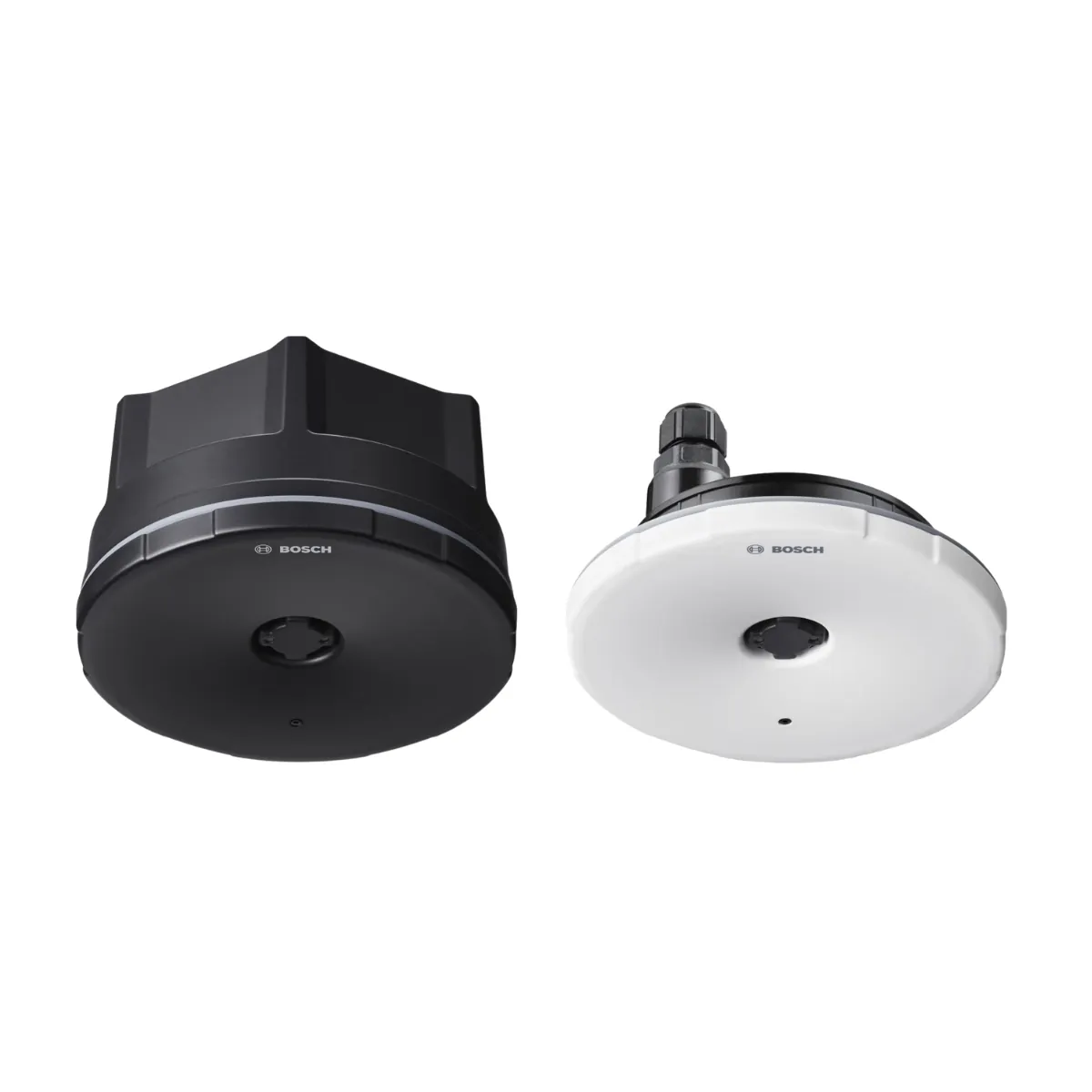

PRA-ANS PRAESENSA Ambient Noise Sensor

PoE-powered sensor with an omnidirectional MEMS microphone that measures ambient noise, so PRAESENSA can automatically adjust announcement and background music levels.

  • Automatic Volume Control
  • MEMS Microphone
  • PoE Powered
PRA-ANS

PRA-ANS · Product drawings

See the PRA-ANS from every side

The sensor front and back, how it mounts, and how it drives automatic volume control.

.
Front · 01 / 03PRA-ANS front.
.
FrontThe round sensor housing with its omnidirectional MEMS microphone.
01 / 03

PRA-ANS · Key features

Always heard, never too loud

Explore the key capabilities of the Bosch PRAESENSA PRA-ANS ambient noise sensor. Click a feature to see it in detail.

Features

PRAESENSA · Application areas

Ideal for mid-to-large sites

Click a site to see how PRAESENSA zones it, with an example bill of quantities. Existing systems on site can be integrated with new PRAESENSA buildings.

LIBRARYQuiet
LECTURE HALLS● Announcement
LABS● Paging · 70%
CAFETERIA● Music · 50%
CAMPUS GROUNDS● Music · 35%
ROOF · TERRACE● Music · 40%
FLOOR 3 · GUEST ROOMSQuiet
FLOOR 2 · CONFERENCE● Announcement
FLOOR 1 · RESTAURANT● Music · 55%
GROUND · LOBBY● Music · 60%
BUILDING A · EXISTING SYSTEMBUILDING B · NEW PRAESENSA
FLOOR 2 · SHOPS● Music · 50%
FLOOR 1 · FOOD COURT● Music · 65%
GROUND · ATRIUM● Promotion · 70%
PARKING● Parking notice
FLOOR 3 · CINEMAQuiet
FLOOR 2 · FASHION● Music · 45%
FLOOR 1 · KIDS ZONE● Music · 40%
GROUND · ENTRANCE● Parking notice
OMNEO / IPLIVE CALL SYNCPRA-SCL
TERMINAL HALL● Boarding call
GATES A–D● Paging · 75%
CHECK-IN● Music · 35%
BAGGAGE CLAIM● Paging · 60%
AIRSIDEEvacuation ready
ICUQuiet
OPERATING THEATRESQuiet
WARDS● Staff paging · 40%
OPD · WAITING● Music · 30%
EMERGENCY● Code call
CONTROL ROOMSupervised
PROCESS AREA● Alarm tone
LOADING BAY● Paging · 90%
WORKSHOP● Paging · 80%
ADMIN BLOCK● Music · 30%
Customer stories

PRAESENSA protects airports, stadiums, hotels and campuses around the world.

Ask for references →

01 / 07 · Universities

Universities

“When choosing a university, students and their families value a safe and secure teaching and learning environment.”

  • Loud in labs, quiet in libraries
  • Phased evacuation to local rules
  • Staff adjust music across campus

Example site: campus with 5 buildings

48zones
4call stations
296speakers

Example BOQQty

PRA-SCLSystem controller1
PRA-MPS3Power supply + battery charger3
PRA-AMPLAmplifier, 600 W3
PRA-CSLDCall station4
Ceiling speakersHalls, classrooms, library220
Wall / cabinet speakersCorridors, cafeteria60
Horn speakersCampus grounds16

Indicative quantities for an example site. Your system is sized by our engineers. Request a BOQ →

02 / 07 · Hotels

Hotels

“Hotel guests who feel right at home are more likely to enjoy repeat visits and make recommendations.”

  • Music changes by time and season
  • Calm audio near guest rooms
  • Multilingual message library

Example site: 12-floor city hotel

26zones
2call stations
196speakers

Example BOQQty

PRA-SCLSystem controller1
PRA-MPS3Power supply + battery charger2
PRA-AMPLAmplifier, 600 W2
PRA-CSLDCall station2
Ceiling speakersLobby, corridors, restaurant160
Wall speakersConference, spa24
Outdoor speakersTerrace, pool12

Indicative quantities for an example site. Your system is sized by our engineers. Request a BOQ →

03 / 07 · Shopping malls

Two buildings, one system

“Happy, informed shoppers stay longer and buy more.”

  • Connects with the PA system already on site
  • One announcement across both buildings
  • Music, promotions and notices per zone

Example site: existing mall + new extension

40zones
3call stations
344speakers

Example BOQQty

PRA-SCLSystem controller (new building)1
IntegrationLink to existing PA system1
PRA-MPS3Power supply + battery charger4
PRA-AMPLAmplifier, 600 W4
PRA-CSLDCall station3
Ceiling speakersShops, food court, atrium320
Horn speakersParking24

Indicative quantities for an example site. Your system is sized by our engineers. Request a BOQ →

04 / 07 · Airports

Airports

Clear, timed announcements across every terminal and gate.

  • Gate and boarding calls by zone
  • Phased evacuation of concourses
  • Multilingual pre-recorded messages

Example site: terminal with 24 gates

96zones
10call stations
600speakers

Example BOQQty

PRA-SCLSystem controller (redundant pair)2
PRA-MPS3Power supply + battery charger8
PRA-AMPLAmplifier, 600 W8
PRA-CSLDCall station (gate desks)10
Ceiling speakersHalls, gates, baggage520
Projector / horn speakersAirside, high ceilings80

Indicative quantities for an example site. Your system is sized by our engineers. Request a BOQ →

05 / 07 · Hospitals

Hospitals

Staff calls reach the right ward without disturbing patients.

  • Code calls to selected areas
  • Quiet ICU and operating theatres
  • EN 54-16 voice evacuation

Example site: 8-floor general hospital

60zones
6call stations
400speakers

Example BOQQty

PRA-SCLSystem controller (redundant pair)2
PRA-MPS3Power supply + battery charger4
PRA-AMPLAmplifier, 600 W4
PRA-CSLDCall station (nurse stations)6
Ceiling speakersWards, OPD, corridors360
Wall speakersEmergency, stairwells40

Indicative quantities for an example site. Your system is sized by our engineers. Request a BOQ →

06 / 07 · Oil & gas refineries

Oil & gas refineries

Intelligible alarms and paging over high-noise process areas.

  • Alarm tones and paging per area
  • Supervised lines and redundancy
  • Control room keeps full status

Example site: process plant with 18 zones

18zones
3call stations
130speakers

Example BOQQty

PRA-SCLSystem controller (redundant pair)2
PRA-MPS3Power supply + battery charger3
PRA-AMPLAmplifier, 600 W3
PRA-CSLDCall station3
Horn speakersProcess area, loading bay110
Wall speakersControl room, admin20

Indicative quantities for an example site. Your system is sized by our engineers. Request a BOQ →

07 / 07 · References

References

Decades of Bosch public address design experience, with PRAESENSA running in sites worldwide.

  • Airports, metros and stadiums
  • Hotels, malls and campuses
  • Ask esco.pk for local references
Ask for references →
PRA_ANS_Ambient_nois_Data_sheet_enUS_86836468363 (2).pdf
Download

Key specs

  • Automatic volume control by ambient noise
  • Omnidirectional MEMS mic, 50 – 100 dB SPL
  • Sample-and-hold and tracking modes
  • Up to 4 sensors combined per zone
  • IP65, surface or flush, indoor and sheltered outdoor
  • PoE powered (802.3af), 1.6 W, no audio sent
  • Fail-safe to max volume, EN 54-16 certified
  • Ø 131 x 35 mm, 0.4 kg, black and white covers
Chat on WhatsApp

Specifications: Bosch PRAESENSA PRA-ANS

General

SpecificationValue
ModelPRA-ANS
Order numberF.01U.378.928
Product typeAmbient noise sensor
SystemBosch PRAESENSA
FunctionAutomatic Volume Control (AVC)
Sensors per zoneUp to 4 combined

Microphone

SpecificationValue
TypeOmnidirectional MEMS
Ambient noise capture range50 – 100 dB SPL
Frequency range50 Hz – 10 kHz
Frequency response (±2 dB)100 Hz – 5.5 kHz
Sensitivity tolerance (pink noise)< 2 dB
Signal processingIntegrated DSP, configurable frequency response

Operating Modes

ModeUsed forHow it works
Sample-and-holdLive calls and recorded messagesNoise level sampled before the call and held during it
TrackingBackground musicNoise level tracked continuously, music volume adjusted live

Power

SpecificationValue
PoE inputIEEE 802.3af Type 1
Nominal voltage48 V DC (37 – 57 V DC)
Power consumption1.6 W

Network

SpecificationValue
Ethernet1 × RJ45, 100BASE-TX / 1000BASE-T
ProtocolsTCP/IP
Control protocolOMNEO (AES70)
SecurityTLS
Data typeNoise level data only (no audio)

Supervision & Reliability

SpecificationValue
Controller continuityWatchdog
Network interfaceLink presence
Fail-safeOn failure, announcement volume goes to maximum of its range
MTBF3,000,000 h

Environmental

SpecificationValue
Operating temperature-25°C to +55°C (-13°F to 131°F)
Power-up temperature-5°C to +55°C (23°F to 131°F)
Storage / transport temperature-30°C to +70°C (-22°F to 158°F)
Humidity5% – 100%
Air pressure560 – 1,070 hPa
Altitude-500 m to 5,000 m
Vibration (operating)< 0.7 mm, < 2 G
Bump (transport)< 10 G

Mechanical

SpecificationValue
Dimensions, device (Ø × H)131 × 35 mm
Dimensions, with back box (Ø × H)131 × 71 mm
Dimensions, front cover (Ø × H)131 × 10 mm
Ingress protectionIP65 / NEMA 4 (with front cover fitted)
MountingSurface (with back box) or flush (wall / ceiling)
MaterialPlastic (PC/ABS, UL94-5VA)
ColorEnclosure RAL 9017; black (RAL 9017) and white (RAL 9003) covers included
Weight0.4 kg

Certifications

CategoryStandard
Emergency (Europe)EN 54-16
InternationalISO 7240-16
SafetyEN/IEC/CSA/UL 62368-1 (UL for indoor use only)
EmissionsEN 55032, EN 61000-6-3, ICES-003, FCC-47 Part 15B Class A
Plenum ratingUL 2043
RailwayEN 50121-4
EnvironmentEN/IEC 63000

Parts Included

QuantityComponent
1Sensor base unit with front gasket
1Back box
1Connection cap with sealing gasket
1Cable gland, 16 mm

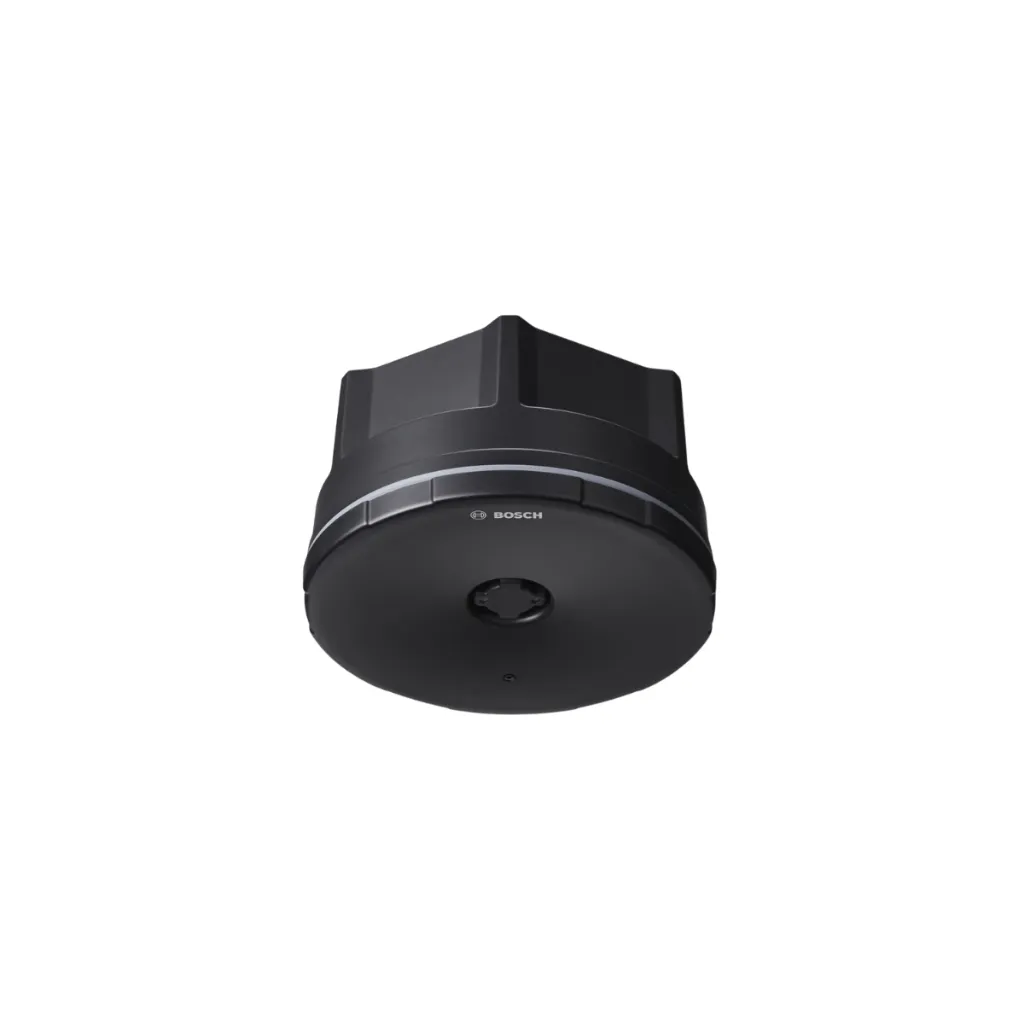

1Front cover, black

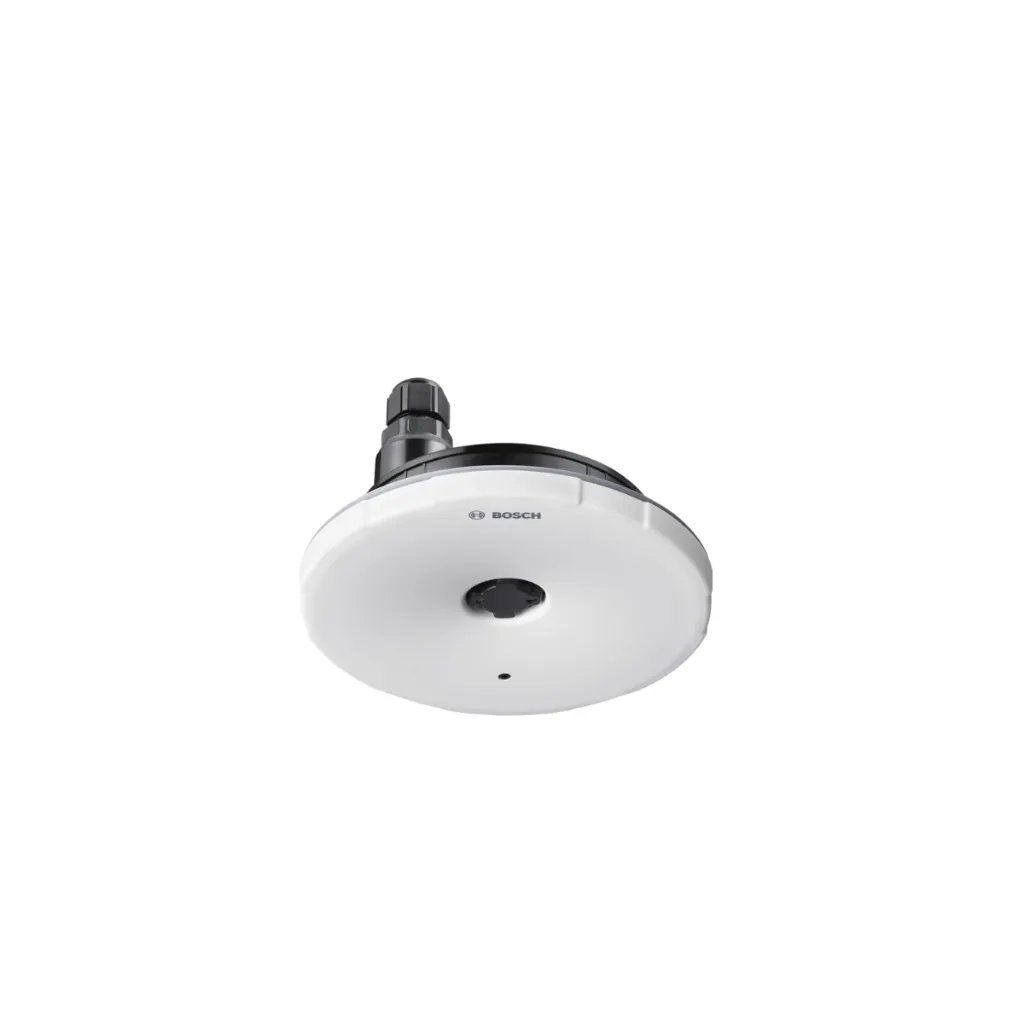

1Front cover, white
5Screws 3 × 12 mm, TX10
1Screw 3 × 8 mm, TX10
3Wood screws 3 × 30 mm, TX10
1Quick installation guide
1Safety information
Questions & answers

Know before you buy

Quick answers about the PRA-ANS, and how it compares.

Where does the PRA-ANS fit?
In noisy zones of a Bosch PRAESENSA system, such as airport halls, stations, factories and busy malls. It measures the background noise and tells the [PRA-SCL] controller, which raises or lowers the zone’s volume automatically.
How does it adjust announcements and music?
ModeUsed forHow it works
Sample-and-holdLive calls and recorded messagesMeasures noise just before the call and holds that level, so the call’s own sound doesn’t push the volume up
TrackingBackground musicTracks noise continuously and adjusts music volume live
Announcements stay clearly above the noise without being uncomfortably loud.
How many sensors does a zone need?
One for most rooms. Up to four can be combined for a large area such as a concourse or production hall, and their noise readings are merged.
Where should it be mounted?
Close to where the noise comes from and away from the PA speakers. This matters most in tracking mode, where speaker sound reaching the sensor could keep pushing the volume up.
Can it be used outdoors?
Yes, in sheltered outdoor areas. It’s IP65 with or without the back box and has a sealed cable gland. It operates from -25°C to +55°C, but needs at least -5°C to power up.
What happens if the sensor fails?
It’s fail-safe. If the sensor fails or is disconnected, announcement volume in its zone goes to the maximum of its set range, so messages are never too quiet.
How does a PRAESENSA system fit together?
The [PRA-SCL] or [PRA-SCS] system controller is the brain: it routes all audio, plays messages and supervises every device. [Amplifiers], [multifunction power supplies] with battery backup and [call stations] all connect over one IP network using OMNEO, with loop-through cabling for redundancy. Up to 250 devices and 500+ zones per system, certified to EN 54-16 and ISO 7240-16.
Who supplies Bosch PRAESENSA in Pakistan, and what warranty do I get?
Electronic Security Company (ESCO) is the only authorized distributor of Bosch, Dynacord and Electro-Voice in Pakistan, so every PRAESENSA product we supply is genuine and comes with a 3-year warranty. Warranty is carry-in: bring the unit to an ESCO office and after inspection it is repaired or replaced as needed.
