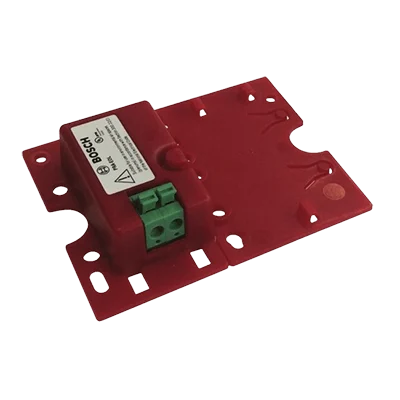

PRA-EOL

Bosch PRA-EOL End-of-line device, Device for loudspeaker line integrity supervision in Public Address and Voice Alarm applications, Reliable solution for (long) loudspeaker lines, Fault detection in amplifier without additional wiring, Low level, high frequency pilot tone, IP30.



Key Features

* Compact device for loudspeaker end‑of‑line supervision

* Reliable solution for (long) loudspeaker lines

* Fault detection in amplifier without additional wiring

* Low level, high frequency pilot tone

Electrical



Control



Pilot tone detection

Frequency

Level



25.5 kHz

1.5 - 3 VRMS



Amplifier load

< 100 mW



Control



Loudspeaker cable

Maximum length

Maximum capacitance

Operating temperature



1000 m

80 nF

-20 to +50 °C (-4 to 122 °F)



Maximum input voltage

100 VRMS



Fault detection

Line shorted, line interrupted



Fault reporting

By amplifier



Reliability



MTBF (extrapolated from calculated MTBF of PRA-AD608)

5.000.000 h



Environmental



Climatic conditions



Temperature Operating

Storage and transport

-5 to +50 °C (23 to 122 °F)

-30 to +70 °C (-22 to 158 °F)



Humidity (non condensing)

5 to 95 %



Air pressure (operating)

560 to 1070 hPa



Altitude (operating)

-500 to +5000 m (-1640 to 16404 ft)



Climatic conditions



Vibration (operating)

Amplitude

Acceleration



< 0.7 mm

< 2 G

Bump (transport)

< 10 G

Mechanical

Enclosure

Dimensions (WxHxD)

Board shape

Box shape



78 x 60 x 16 mm (3.1 x 2.4 x 0.6 in)

45 x 60 x 18 mm (1.8 x 2.4 x 0.7 in)

Ingress protection

IP30

Case

Material

Color



Plastic

RAL3000

Weight

25 g (0.055 lb)
