The Bosch PRA-IM16C8 is the PRAESENSA control interface module: 16 supervised control inputs, 8 voltage-free relay outputs, 2 supervised NAC trigger outputs for strobes and horns, and PoE power with dual network ports. Scroll down for details.

See full specs and details Have a question? 7 answered
Rs. 0 Rs. 0

  • Brand - BOSCH
Request a Quote
BOSCH
BOSCH

Global leader in Public Address, Voice Evacuation and Conference Systems.

Bosch PRAESENSA public address and voice alarm system: operator at a reception desk with the PRA-CSLD call station Bosch, Invented for life

IP-connected and fully-featured

PRAESENSA Public Address and Voice Alarm System

PRAESENSA system components

PRA-IM16C8 PRAESENSA Control Interface Module

PoE-powered DIN-rail module with 16 supervised control inputs, 8 relay outputs and 2 NAC trigger outputs to link PRAESENSA with fire alarm and other systems.

  • 16 x Control Inputs
  • 8 x Relay Outputs
  • 2 x NAC Triggers
PRA-IM16C8

PRA-IM16C8 · Product drawings

See the PRA-IM16C8 from every side

Every terminal and indicator on the front, and how the module connects PRAESENSA to the systems around it.

.

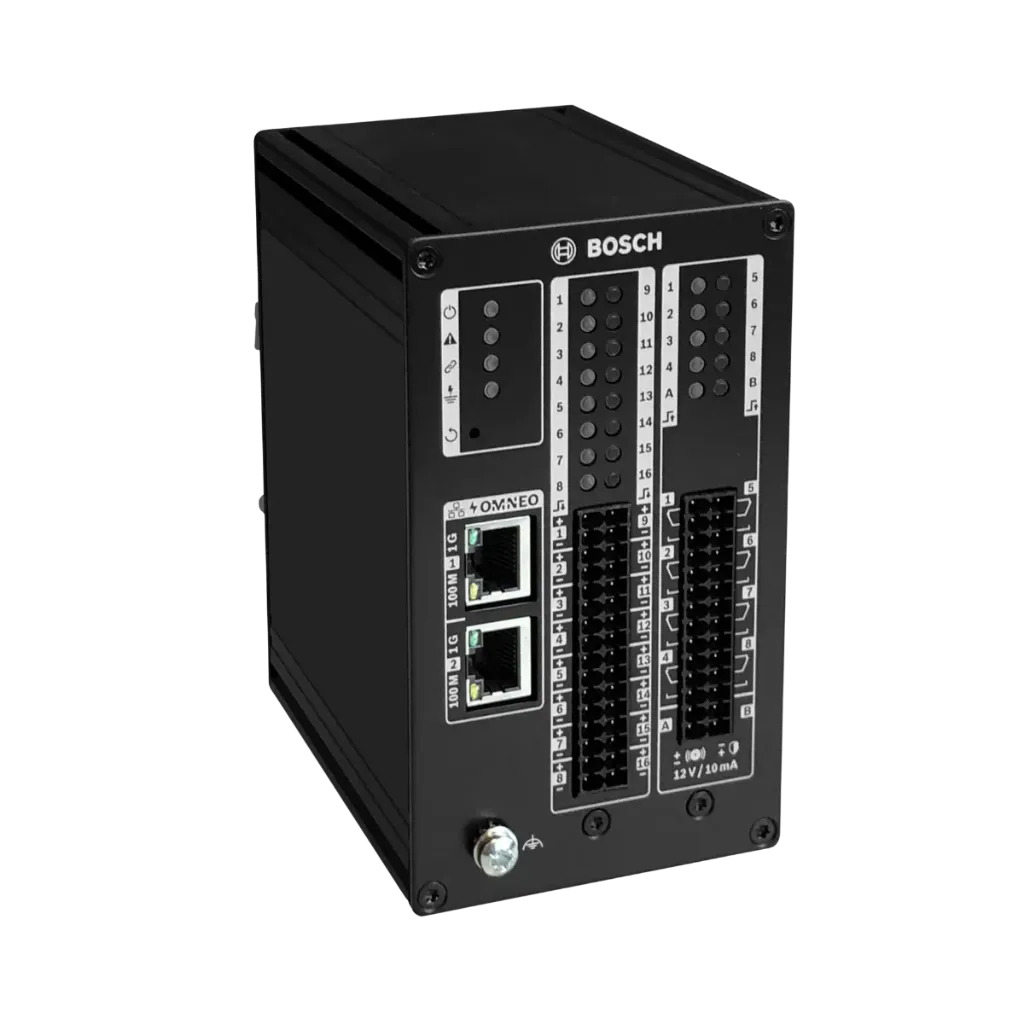

Front panel · 01 / 02PRA-IM16C8 front panel.
.
Front panel16 control inputs, 8 relay outputs, 2 NAC trigger outputs, 2 PoE ports and status LEDs.
01 / 02

PRA-IM16C8 · Key features

Connect PRAESENSA to everything around it

Explore the key capabilities of the Bosch PRAESENSA PRA-IM16C8 control interface module. Click a feature to see it in detail.

Features

PRAESENSA · Application areas

Ideal for mid-to-large sites

Click a site to see how PRAESENSA zones it, with an example bill of quantities. Existing systems on site can be integrated with new PRAESENSA buildings.

LIBRARYQuiet
LECTURE HALLS● Announcement
LABS● Paging · 70%
CAFETERIA● Music · 50%
CAMPUS GROUNDS● Music · 35%
ROOF · TERRACE● Music · 40%
FLOOR 3 · GUEST ROOMSQuiet
FLOOR 2 · CONFERENCE● Announcement
FLOOR 1 · RESTAURANT● Music · 55%
GROUND · LOBBY● Music · 60%
BUILDING A · EXISTING SYSTEMBUILDING B · NEW PRAESENSA
FLOOR 2 · SHOPS● Music · 50%
FLOOR 1 · FOOD COURT● Music · 65%
GROUND · ATRIUM● Promotion · 70%
PARKING● Parking notice
FLOOR 3 · CINEMAQuiet
FLOOR 2 · FASHION● Music · 45%
FLOOR 1 · KIDS ZONE● Music · 40%
GROUND · ENTRANCE● Parking notice
OMNEO / IPLIVE CALL SYNCPRA-SCL
TERMINAL HALL● Boarding call
GATES A–D● Paging · 75%
CHECK-IN● Music · 35%
BAGGAGE CLAIM● Paging · 60%
AIRSIDEEvacuation ready
ICUQuiet
OPERATING THEATRESQuiet
WARDS● Staff paging · 40%
OPD · WAITING● Music · 30%
EMERGENCY● Code call
CONTROL ROOMSupervised
PROCESS AREA● Alarm tone
LOADING BAY● Paging · 90%
WORKSHOP● Paging · 80%
ADMIN BLOCK● Music · 30%
Customer stories

PRAESENSA protects airports, stadiums, hotels and campuses around the world.

Ask for references →

01 / 07 · Universities

Universities

“When choosing a university, students and their families value a safe and secure teaching and learning environment.”

  • Loud in labs, quiet in libraries
  • Phased evacuation to local rules
  • Staff adjust music across campus

Example site: campus with 5 buildings

48zones
4call stations
296speakers

Example BOQQty

PRA-SCLSystem controller1
PRA-MPS3Power supply + battery charger3
PRA-AMPLAmplifier, 600 W3
PRA-CSLDCall station4
Ceiling speakersHalls, classrooms, library220
Wall / cabinet speakersCorridors, cafeteria60
Horn speakersCampus grounds16

Indicative quantities for an example site. Your system is sized by our engineers. Request a BOQ →

02 / 07 · Hotels

Hotels

“Hotel guests who feel right at home are more likely to enjoy repeat visits and make recommendations.”

  • Music changes by time and season
  • Calm audio near guest rooms
  • Multilingual message library

Example site: 12-floor city hotel

26zones
2call stations
196speakers

Example BOQQty

PRA-SCLSystem controller1
PRA-MPS3Power supply + battery charger2
PRA-AMPLAmplifier, 600 W2
PRA-CSLDCall station2
Ceiling speakersLobby, corridors, restaurant160
Wall speakersConference, spa24
Outdoor speakersTerrace, pool12

Indicative quantities for an example site. Your system is sized by our engineers. Request a BOQ →

03 / 07 · Shopping malls

Two buildings, one system

“Happy, informed shoppers stay longer and buy more.”

  • Connects with the PA system already on site
  • One announcement across both buildings
  • Music, promotions and notices per zone

Example site: existing mall + new extension

40zones
3call stations
344speakers

Example BOQQty

PRA-SCLSystem controller (new building)1
IntegrationLink to existing PA system1
PRA-MPS3Power supply + battery charger4
PRA-AMPLAmplifier, 600 W4
PRA-CSLDCall station3
Ceiling speakersShops, food court, atrium320
Horn speakersParking24

Indicative quantities for an example site. Your system is sized by our engineers. Request a BOQ →

04 / 07 · Airports

Airports

Clear, timed announcements across every terminal and gate.

  • Gate and boarding calls by zone
  • Phased evacuation of concourses
  • Multilingual pre-recorded messages

Example site: terminal with 24 gates

96zones
10call stations
600speakers

Example BOQQty

PRA-SCLSystem controller (redundant pair)2
PRA-MPS3Power supply + battery charger8
PRA-AMPLAmplifier, 600 W8
PRA-CSLDCall station (gate desks)10
Ceiling speakersHalls, gates, baggage520
Projector / horn speakersAirside, high ceilings80

Indicative quantities for an example site. Your system is sized by our engineers. Request a BOQ →

05 / 07 · Hospitals

Hospitals

Staff calls reach the right ward without disturbing patients.

  • Code calls to selected areas
  • Quiet ICU and operating theatres
  • EN 54-16 voice evacuation

Example site: 8-floor general hospital

60zones
6call stations
400speakers

Example BOQQty

PRA-SCLSystem controller (redundant pair)2
PRA-MPS3Power supply + battery charger4
PRA-AMPLAmplifier, 600 W4
PRA-CSLDCall station (nurse stations)6
Ceiling speakersWards, OPD, corridors360
Wall speakersEmergency, stairwells40

Indicative quantities for an example site. Your system is sized by our engineers. Request a BOQ →

06 / 07 · Oil & gas refineries

Oil & gas refineries

Intelligible alarms and paging over high-noise process areas.

  • Alarm tones and paging per area
  • Supervised lines and redundancy
  • Control room keeps full status

Example site: process plant with 18 zones

18zones
3call stations
130speakers

Example BOQQty

PRA-SCLSystem controller (redundant pair)2
PRA-MPS3Power supply + battery charger3
PRA-AMPLAmplifier, 600 W3
PRA-CSLDCall station3
Horn speakersProcess area, loading bay110
Wall speakersControl room, admin20

Indicative quantities for an example site. Your system is sized by our engineers. Request a BOQ →

07 / 07 · References

References

Decades of Bosch public address design experience, with PRAESENSA running in sites worldwide.

  • Airports, metros and stadiums
  • Hotels, malls and campuses
  • Ask esco.pk for local references
Ask for references →
PRA_IM16C8_Data_sheet_enUS_104886589195 (3).pdf
Download

Key specs

  • 16 supervised control inputs (contact closure)
  • 8 voltage-free SPDT relay outputs, 24 V / 1 A
  • 2 supervised 12 V trigger outputs for NAC boosters
  • PoE powered (802.3af), 4.5 W, dual network ports
  • RSTP loop-through, TLS-secured OMNEO control
  • LED status for every input and output
  • EN 54-16 and ISO 7240-16 certified
  • DIN rail, 131 x 78 x 100 mm, 0.57 kg
Chat on WhatsApp

Specifications: Bosch PRAESENSA PRA-IM16C8

General

SpecificationValue
ModelPRA-IM16C8
Order numberF.01U.378.929
Product typeControl interface module, 16 inputs × 8 outputs
SystemBosch PRAESENSA

Control Inputs

SpecificationValue
Number of inputs16
PrincipleContact closure
Galvanic isolationNo
SupervisionResistance measurement (configurable)
Contact closed8 – 12 kΩ
Contact open18 – 22 kΩ
Cable fault detection< 2.5 kΩ / > 50 kΩ
Minimum hold time100 ms
Max voltage to ground24 V

Control Outputs

SpecificationValue
Number of outputs8
PrincipleRelay, SPDT (change-over), voltage-free
Galvanic isolationYes
Max contact voltage24 V
Max contact current1 A
Max voltage to ground500 V

Trigger Outputs (NAC)

SpecificationValue
Number of outputs2 (A–B)
PrincipleBipolar control voltage (polarity reversal)
Output voltage11 – 12 V DC
Output current15 mA max
Galvanic isolationNo
Cable fault detection< 2.5 kΩ / > 50 kΩ

Power

SpecificationValue
PoE inputIEEE 802.3af, Class 2
Nominal voltage48 V DC (37 – 57 V DC)
Power consumption4.5 W

Network

SpecificationValue
Ports2 × PoE (PD), 100BASE-TX / 1000BASE-T
ProtocolsTCP/IP
Control protocolOMNEO (OCA / AES70)
RedundancyRSTP, loop-through cabling
EncryptionTLS

Supervision

SpecificationValue
Control input connectionsOpen / short
Trigger output connectionsOpen / short
Ground fault< 50 kΩ leakage
Controller continuityWatchdog
Network interfaceLink presence
PoE 1–2Voltage

Indicators

SpecificationValue
DevicePower on (green), device fault (yellow), ground fault (yellow)
NetworkLink to controller (green), link lost (yellow), 100 Mbps (yellow), 1 Gbps (green)
Inputs 1–16Contact closed (green), connection fault (yellow)
Outputs 1–8 / A–BActivated (green), A–B connection fault (yellow)

Reliability & Environmental

SpecificationValue
MTBF2,200,000 h (Telcordia SR-332)
Operating temperature-5°C to +50°C (23°F to 122°F)
Storage temperature-30°C to +70°C (-22°F to 158°F)
Humidity (non-condensing)5% – 95%
Air pressure560 – 1,070 hPa
Altitude-500 m to 5,000 m
Vibration (operating)< 0.35 mm, < 2 G
Bump (transport)< 10 G

Mechanical

SpecificationValue
Dimensions (H × W × D)131 × 78 × 100 mm
Weight0.57 kg
IP ratingIP30
MaterialAluminum
ColorRAL 9017 Traffic Black
MountingDIN rail (bracket pre-assembled)
TerminalsPluggable spring-cage terminal blocks

Certifications

CategoryStandard
Emergency (Europe)EN 54-16
InternationalISO 7240-16
SafetyIEC/CSA/UL 62368-1
ImmunityEN 55035, EN 50130-4
EmissionsEN 55032, EN 61000-6-3, ICES-003, FCC-47 Part 15B Class A
EnvironmentEN/IEC 63000

Parts Included

QuantityComponent
1Control interface module, 16×8
1DIN rail mounting bracket (pre-assembled)
1Set of connectors
34Supervision resistors, 10 kΩ
1Safety and security information booklet
1Quick installation guide
Questions & answers

Know before you buy

Quick answers about the PRA-IM16C8, and how it compares.

Where does the PRA-IM16C8 fit?
It connects a Bosch PRAESENSA system to outside equipment: fire alarm panels, strobes and horns, indicator lights and speaker relays. It’s DIN-rail mounted right next to that equipment and linked to the [PRA-SCL] controller over the network.
What can I connect to it?
ConnectionQtyTypeTypical use
Control inputs16Supervised contact closureFire alarm zones, emergency buttons, external triggers
Control outputs8Voltage-free SPDT relays, 24 V / 1 AIndicator lights, speaker relays, door releases
Trigger outputs2Supervised 12 V, polarity reversalNAC boosters for strobes and horns
What each input and output does is set in the PRAESENSA software.
Can it connect to a fire alarm panel?
Yes. Fire alarm zone contacts connect to the 16 supervised inputs to trigger the right evacuation messages in the right zones automatically. The cabling is supervised for open and short circuits, as EN 54-16 requires.
How is it powered and connected?
One shielded CAT5e cable carries both data and PoE power (IEEE 802.3af, 4.5 W). Add a second cable for redundant network and power, or loop through to the next device. Power it from a PoE port on the [PRA-ES8P2S] switch or another PRAESENSA device.
What are the 34 resistors in the box for?
They’re 10 kΩ supervision resistors for wiring at the far end of each input and trigger output: 16 inputs × 2, plus the 2 trigger outputs. They let the module tell a closed contact apart from a cable fault.
How does a PRAESENSA system fit together?
The [PRA-SCL] or [PRA-SCS] system controller is the brain: it routes all audio, plays messages and supervises every device. [Amplifiers], [multifunction power supplies] with battery backup and [call stations] all connect over one IP network using OMNEO, with loop-through cabling for redundancy. Up to 250 devices and 500+ zones per system, certified to EN 54-16 and ISO 7240-16.
Who supplies Bosch PRAESENSA in Pakistan, and what warranty do I get?
Electronic Security Company (ESCO) is the only authorized distributor of Bosch, Dynacord and Electro-Voice in Pakistan, so every PRAESENSA product we supply is genuine and comes with a 3-year warranty. Warranty is carry-in: bring the unit to an ESCO office and after inspection it is repaired or replaced as needed.
