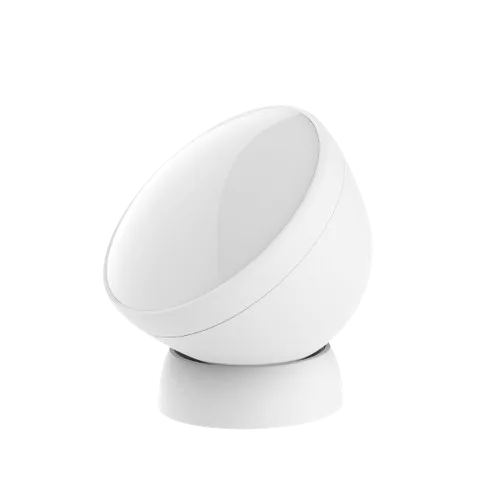

EZVIZ T1C PIR Motion Sensor, Detection type: Passive infrared (PIR), Human Motion Detection, Detection distance: Up to 7 m / 23 ft, Support Low Battery Reminder, Anti-Tamper Alarm, Communication Distance: < 200m, Cell battery CR2450.
|
Specifications |
|
|
Model |
CS-T1C-A0-BG |
|
General |
|
|
Operation Conditions |
-10 °C to 55 °C (14 °F to 131 °F), humidity 95% or less (non-condensing) |
|
Dimensions |
Main body: Φ 43.5 × 32.0 mm (1.7 × 1.3 inch) Base: Φ 29.0 × 9.5 mm (1.1 × 0.4 inch) |
|
Package Size |
92 × 52 × 93 mm (3.6 × 2.0 × 3.7 inch) |
|
Weight |
92 g (3.2 oz) with package |
|
Detection |
|
|
Detection Type |
Passive infrared (PIR) |
|
Detection Distance |
Up to 7 m / 23 ft |
|
Detection Angle |
90° horizontal, 90° vertical |
|
Recommended Installation Height |
1.8 to 2.5 m for wall-mounted installation |
|
Pet-Proof Detection |
Requires using the pet shield and an installation height of 50 cm or higher above the pet |
|
Function |
|
|
Low Battery Reminder |
Supports |
|
Anti-Tamper Alarm |
Supports |
|
Installation Methods |
Adhesive back with magnetic parts. Supports wall and ceiling flip-over installation |
|
Battery |
|
|
Battery Type |
Cell battery CR2450 |
|
Battery Life |
High-performance mode: Up to 1 year Energy-saving mode: Up to 2 years |
|
Network |
|
|
Protocol |
ZigBee 3.0 |
|
Communication Distance |
< 200 m (Tested in open environment) |
