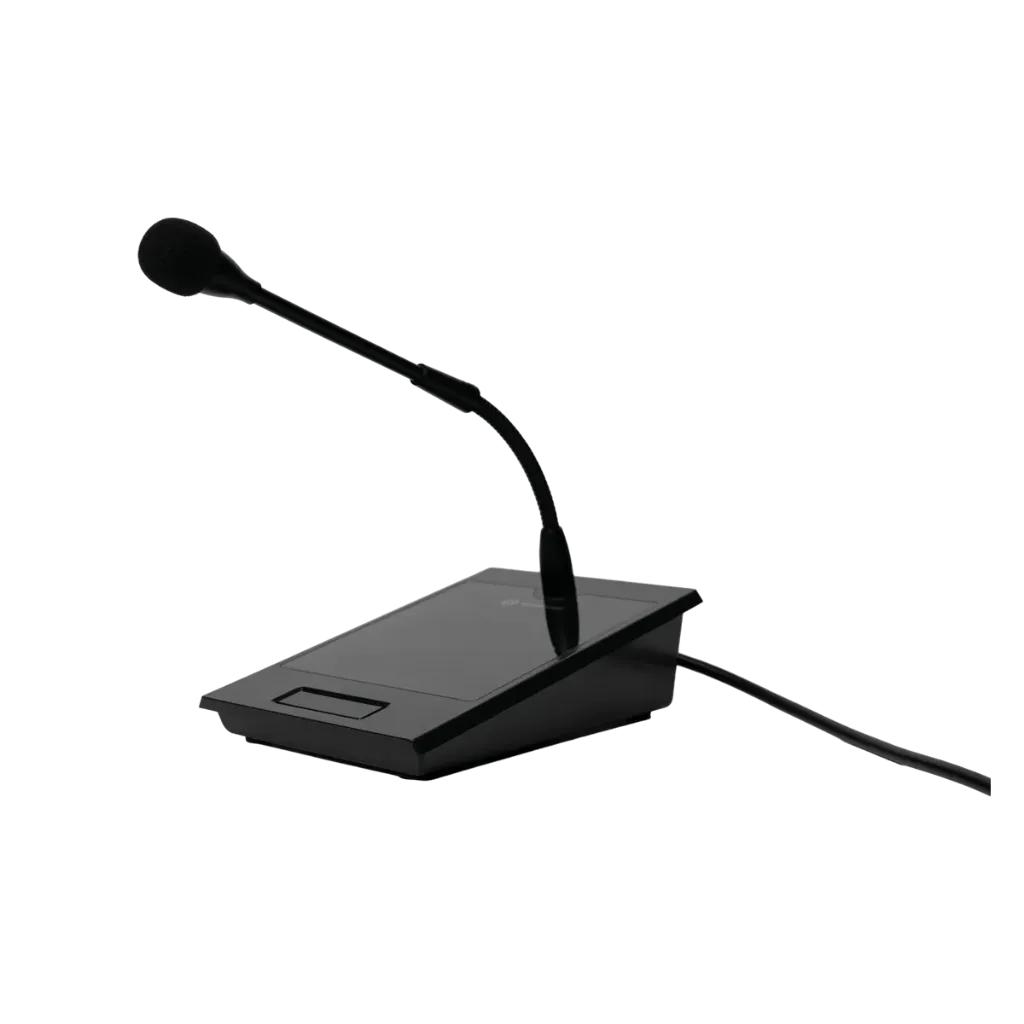

UCS-1
Call station, 1 zone, push-to-talk
Condenser, unidirectional | 100 Hz to 16 kHz | Push-to-talk, priority | 5-pin Euroblock, 2 m | For U Series
UCS-1
Call station, 1 zone, push-to-talk
Condenser, unidirectional | 100 Hz to 16 kHz | Push-to-talk, priority | 5-pin Euroblock, 2 m | For U Series
Dynacord UCS-1 Product Highlights
Explore the key capabilities of the Dynacord UCS-1 call station.
Clear Paging
Unidirectional condenser, 100 Hz to 16 kHz.
Push-to-Talk
Press to talk; the amplifier gets a priority signal.
Live Indicator
Green LED shows when the microphone is live.
No Power Supply
Phantom powered from the amplifier, 12 to 48 V.
Plug In
5-pin Euroblock on a 2 m cable.
Made For
U60:1M-EU, U120:1M-EU and U240:1M-EU.
Key specs
- Unidirectional condenser microphone
- 100 Hz to 16 kHz
- Sensitivity 1.6 mV/Pa (-56 dBV/Pa), 200 ohm
- Max input 100 dB SPL
- Push-to-talk button with priority signalling, green LED
- 5-pin Euroblock (3-pin without priority), 2 m cable
- Phantom power 12 to 48 V, 11 mA
- Stem with microphone 290 mm
- 60 x 130 x 192 mm, 0.94 kg, black RAL 9004
- Order no. F.01U.435.591
|
Technical Specifications |
|
|
Electrical |
|
|
CAN BUS port |
10, 20, or 62.5 kbit/s, 1 RJ-45, max. length 1000 m |
|
Maximum mic input level |
-21 dBu |
|
Maximum line input level |
+4 dBu |
|
Maximum NF output level |
+12 dBu |
|
Microphone: Nominal acoustic input level Frequency response Signal to noise ratio |
85 dBSPL • 250 Hz - 10 kHz (-6dB) • > 60dB |
|
Buttons |
5 pre-programmed, 15 programmable zone/function keys |
|
Indicator lights |
Power (green), Fault (yellow), Alarm (red) Green or yellow LED per pre- programmed menu button Green and red LED per programmable zone/function key |
|
LC display |
Back-lit LC display (122 32 pixel) |
|
Ports |
1 CST BUS port (Control data + Audio + Power supply, RJ-45) 1 audio source (line level, phone jack) 1 microphone port (phone jack) 1 EXT OUT port (call station extension, RJ-12) |
|
DC power input |
15-58 V |
|
Maximum supply current (without call station extensions) |
Standby / Idle / Announcement/Alert: 24 V / 80 mA / 1.92 W |
|
Maximum supply current (with 5 call station extensions) |
Standby / Idle / Announcement/Alert: 24 V / 190 mA / 4.56 W |
|
Environmental |
|
|
Operating temperature |
-5 °C to +45 °C (+23 °F to +113 °F) |
|
Storage temperature |
-40°C to +70 °C (-40 °F to +158 °F) |
|
Humidity (non-condensing) |
5% to 90% |
|
Altitude |
Up to 2000 m |
|
Mechanical |
|
|
Dimensions (HxWxD) |
166 mm x 200 mm x 66 mm (without microphone) |
|
Weight (net) |
0.6 kg |
|
Mounting |
Standalone; 19 in. rack |
|
Color |
Black |
