EZVIZ TY1 G1: Frequently Asked Questions
Here are quick answers on coverage, night vision, smart detection, privacy and storage. For anything else, our team is happy to help.

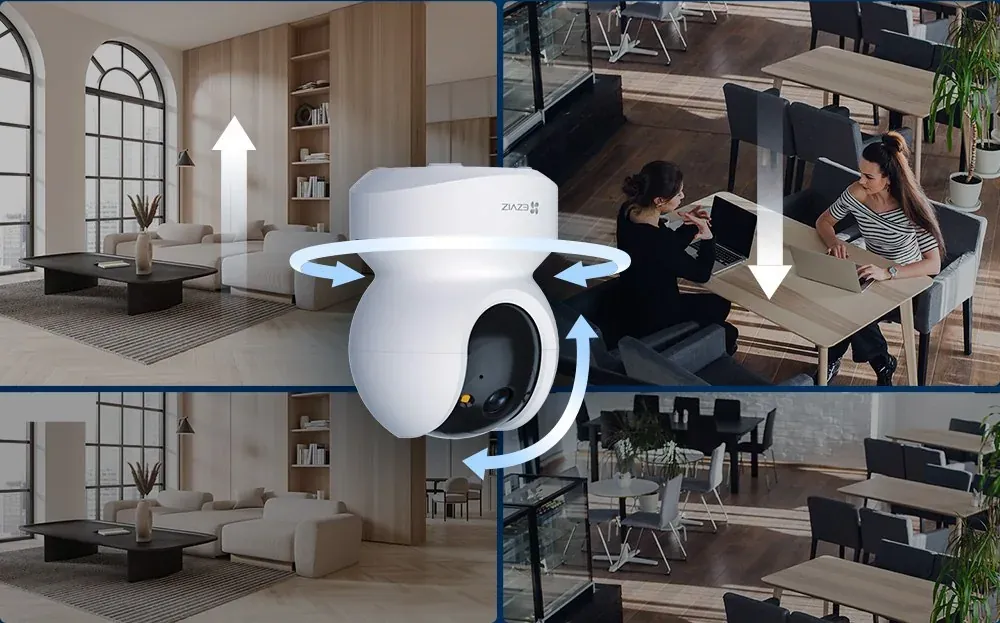

The TY1 G1 pans 350° from wall to wall and tilts 85° from floor to ceiling, so a single camera can cover almost an entire room. It works on a shelf or mounted on the ceiling. Auto-Patrol Mode can move it between preset points on a schedule, so it checks every key area without you steering it.
Yes. Smart Color Night Vision shows color video in low light instead of only black and white, so faces, clothing and objects are easier to recognize. WDR balances bright windows and dark corners during the day, keeping details visible in rooms with mixed lighting.
Smart Human Detection recognizes human shapes and alerts you to people, not every small movement, which cuts down on false alarms. Once someone is detected, Smart Tracking follows them automatically so they stay in frame as they move around the room.
A physical privacy shutter covers the lens whenever you want the camera fully off. You can talk to family or pets through two-way talk in the EZVIZ app. Video records to a microSD card of up to 512 GB or to EZVIZ CloudPlay cloud storage, and the camera connects by Wi-Fi or by a wired network cable.
Marketed As | Megapixels | Resolution |
|---|---|---|
1080p / Full HD | 2 MP | 1920×1080 |
2K | 3 MP | 2304×1296 |
2K+ / QHD | 4 MP | 2560×1440 |
3K / 2K+ | 5 MP | 2880×1620 |
4K / UHD | 8 MP | 3840×2160 |
|
1/2.7" Progressive Scan CMOS |
|
Self-adaptive shutter |
|
4mm @ F1.6; Viewing angle: 82° (Horizontal), 48° (Vertical), 98° (Diagonal) |
|
M12 |
|
IR-cut filter with auto switch |
|
3D DNR |
|
Digital WDR |
|
H.264/H.265 |
|
Adaptive bit rate. |
|
2304 × 1296 |
|
Self-Adaptive during network transmission |
|
Motion Detection, Human Shape Detection, Human Shape Tracking, Loud Noise Detection, Patrol Mode |
|
AP paring |
|
EZVIZ cloud proprietary protocol |
|
EZVIZ cloud proprietary protocol |
|
Micro SD card slot (Max. 512G) |
|
Type-C |
|
RJ45 X 1 (10M/100M self-adaptive Ethernet port) |
|
IEEE802.11b, 802.11g, 802.11n |
|
2.4 GHz ~ 2.4835 GHz |
|
Supports 20MHz |
|
WPA/WPA2, WPA-PSK/WPA2-PSK |
|
11b: 11 Mbps, 11g: 54 Mbps, 11n: 72 Mbps |
|
19 dBm |
|
1.9 dBi |
|
-10°C to 45°C (14°F to 113 °F), Humidity 95% or less (non-condensing) |
|
DC 5V/1A |
|
MAX. 5W |
|
MAX. 10 meters (33ft) |
|
103mm x 103mm x 168mm (4.06” x 4.06” x 6.61”) |
|
218g (0.48lb) |
|
CE / UL / WEEE / REACH / RoHS |
