Specifications |
|
|
Model |

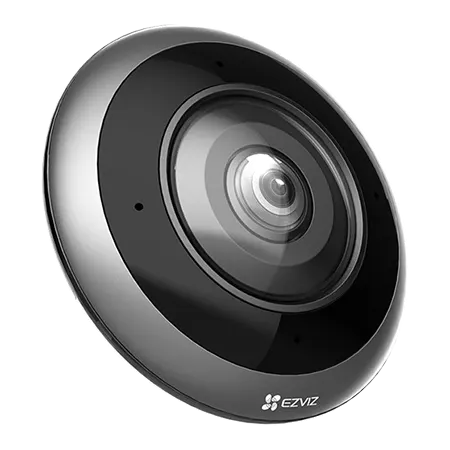

CS-E4p-R100-8C6WKF |
|
Compression |
|
|
Image Sensor |
1/2.8” Progressive Scan CMOS |
|
Shutter Speed |
Self-adaptive shutter |
|
Lens |
M12 |
|
Day & Night |
IR-cut filter with auto switch |
|
DNR |
3D DNR |
|
WDR |
Digital WDR |
|
Image |
|
|
Max. Resolution |
3K⁺ (2320 × 2320) |
|
Frame Rate |
Max. 25 fps |
|
Network |
|
|
Smart Alarm |
Motion Detection, AI-Powered Human Shape Detection |
|
Wi-Fi Pairing |
AP pairing |
|
Protocol |
EZVIZ Cloud Proprietary Protocol |
|
Interface |
|
|
Storage |
Supports microSD card (max. 512 GB) |
|
Power |
Type-C |
|
Wi-Fi |
|
|
Standard |
IEEE802.11a, 802.11b, 802.11g, 802.11n, 802.11ac |
|
Frequency Range |
2.4G: 2.412 GHz ~ 2.472 GHz 5G: 5.17 GHz ~ 5.25 GHz |
|
Channel Bandwidth |
Support 20 MHz |
|
Security |
WPA / WPA2, WPA-PSK / WPA2-PSK |
|
Transmission Rate |
11b 11 Mbps, 11g 54 Mbps, 11nHT20 MCS7, 11a 54 Mbps, 11nHT20 MCS7, 11ac MSC7 |
|
Output Power (EIRP) |
19 dBm |
|
Antenna Gain |
2.4G: 1.79 dBi 5G: 3.61dBi |
|
General |
|
|
Operating Conditions |
-10°C to 45°C (14°F to 113 °F ), Humidity 95% or less (non-condensing) |
|
Power Supply |
DC 5 V / 2 A |
|
Power Consumption |
Max. 8 W |
|
IR Range |
Max. 10 meters (32.81 ft) |
|
Product Dimensions |
φ80 × 35 mm (φ3.15 × 1.38 inch) |
|
Packaging Dimensions |
114 × 114 × 120 mm (4.49 × 4.49 × 4.72 inch) |
|
Bare Weight |
122 g (4.3 oz) |
|
Weight |
610 g (21.52 oz) |
|
Certifications |
|
|
Certifications |
CE / RoHS / REACH / WEEE / UL |
