Key specs
- 5MP (3K), 2880 × 1620, H.265

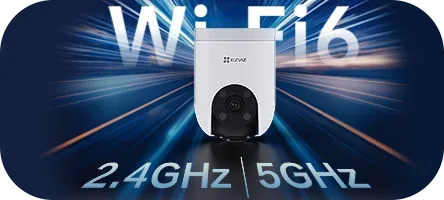

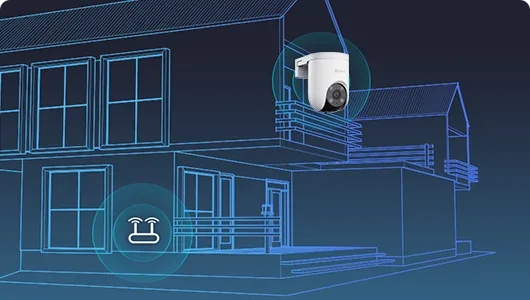

- 4G SIM, Wi-Fi (2.4 and 5 GHz), Ethernet port
- Pan 350°, tilt 90°, 4 mm F1.6 lens
- AI person and vehicle detection

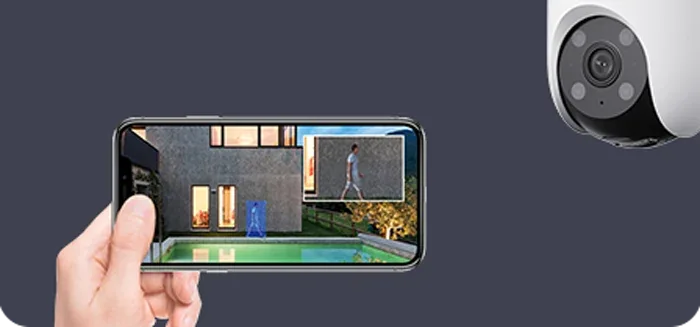

- Auto-zoom tracking, preset locations
- Colour night vision, IR up to 30 m
- Siren and strobe
- Two-way talk, RTMP streaming
- microSD up to 512 GB (not included), CloudPlay
- IP66, -30°C to 50°C
- DC 12 V 1 A, max 12 W
| Specifications | |
|---|---|
| Model | CS-H8c-R210-1R5WFL4G |
| Camera | |
| Image Sensor | 1/3" Progressive Scan CMOS |
| Shutter Speed | Self-adaptive shutter |
| Lens | 4 mm @ F1.6, viewing angle: 41° (vertical), 76° (horizontal), 90° (diagonal) |
| PT Angle | Pan: 350°, Tilt: 90° |
| Minimum Illumination | 0.5 Lux @(F1.6, AGC ON), 0 Lux with IR (*data is obtained from EZVIZ laboratories) |
| Lens Mount | M12 |
| Day & Night | IR-cut filter with auto switch |
| DNR | 3D DNR |
| WDR | Digital WDR |
| Black & White Night | 30m / 98ft |

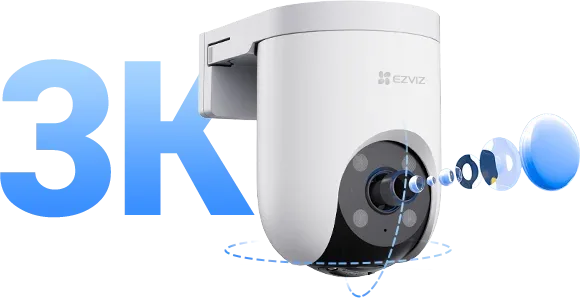

| Max Resolution | 3K (2880 × 1620) |
|---|---|
| Frame Rate | Self-Adaptive during network transmission |
| Video Compression | H.265 / H.264 |
| H.265 Type | Main Profile |
| Video Bit Rate | Ultra-HD; Hi-Def; Standard. Adaptive bit rate. |
| Audio Bit Rate | Self-adaptive |
| Max. Bitrate | 2.5 Mbps |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz, 5.15 GHz ~ 5.25 GHz, 5.25 GHz ~ 5.35 GHz, 5.47 GHz ~ 5.725 GHz |
|---|---|
| Channel Bandwidth | EU LTE-FDD:B1/B3/B5/B7/B8/B20/B28 LA LTE-FDD:B2/B3/B4/B5/B7/B8/B28/B66 |
| Wired Network | RJ45 × 1 (10 M / 100 M Adaptive Ethernet Port) |
| Smart Alarm | AI-Powered Human / Vehicle Shape Detection |
|---|---|

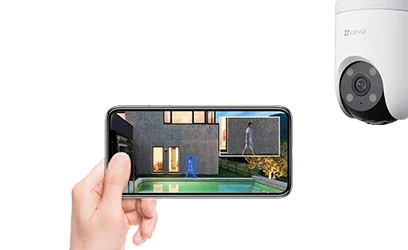

| Auto Tracking | Supports |
| Customized Alert Area | Supports |
| Two-way Talk | Supports |

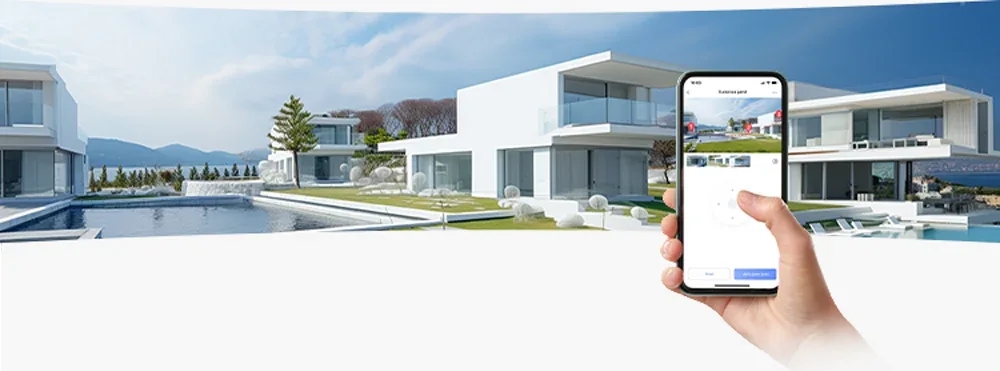

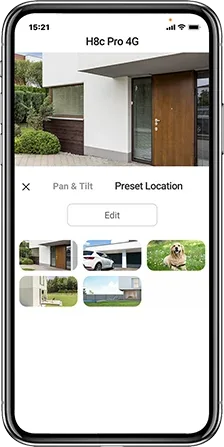

| Preset Locations | Supports |
| General Function | Anti-Flicker, Dual-Stream, Heart Beat, Password Protection, Watermark, RTMP |
| Local Storage | Supports microSD card (max. 512 GB) |
|---|---|
| Cloud Storage | Supports EZVIZ CloudPlay storage (subscription required) |
| Operating Conditions | -30°C to 50°C ( -22 °F to 122 °F ) Humidity 95% or less (non-condensing) |
|---|---|
| IP Grade | Weatherproof design IP66 |
| Power Supply | DC 12V/1A |
| Power Consumption | MAX. 12W |
| Dimensions | 100 × 140 × 140 mm (3.94 × 5.51 × 5.51 inch) |
| Packaging Dimensions | 150 × 160 × 194 mm (5.91 × 6.3 × 7.64 inch) |
| Weight | Net Weight: 550 g (19.4 oz) With Package: 994 g (35.06 oz) |
Know before you buy
Quick answers about the H8c Pro 3K 4G (R210) , and how it compares.

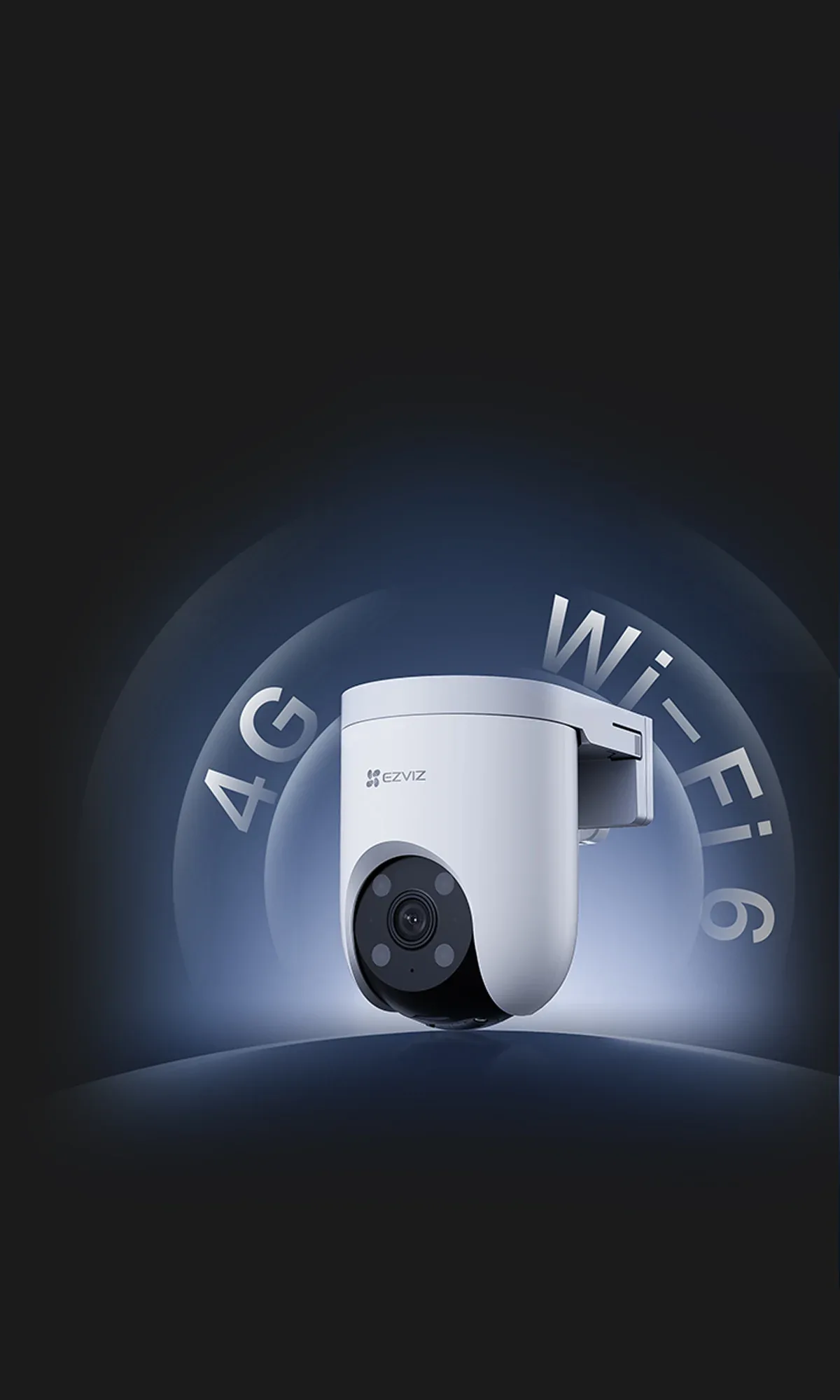

How does the 4G work, and does it need Wi-Fi?
No Wi-Fi needed. Put a 4G SIM with a data bundle in the camera and it connects over the mobile network, so it suits farms, building sites, warehouses and second homes with no internet. Where Wi-Fi or a network cable is available it can use those instead. It does need mains power; the 12 V adapter is in the box.
Which SIM works, and how much data does it use?
A 4G SIM from any Pakistani mobile network, with a data bundle. Check the signal where the camera will go before mounting it. Alerts and short clips use little data; long live viewing uses the most (up to about 2.5 Mbps at the highest quality). Recording to the microSD card uses no data at all.
H8c Pro 3K 4G or H8c Pro 3K?
Same 5MP pan and tilt camera. The H8c Pro 3K connects on Wi-Fi or a cable. The H8c Pro 3K 4G also runs on a SIM card, for places with no internet, and is rated IP66.
H8c Pro 3K 4G or H8c 4G?
Both run on a 4G SIM, pan and tilt, and detect people and vehicles. The H8c Pro 3K 4G is sharper (5MP vs 3MP) and also connects on Wi-Fi; the H8c 4G is the 3MP option.
Which H8c should I choose?
All H8c models pan and tilt to cover the whole area, see in colour at night (IR up to 30 m), talk both ways and warn intruders with a siren and strobe. They differ in megapixels and how they connect:
| Model | Megapixels | Connection | Detects |
|---|---|---|---|
| H8c 1080P | 2MP | Wi-Fi | People |
| H8c 2K | 3MP | Network cable (PoE), no Wi-Fi | People |
| H8c Pro 2K | 3MP | Wi-Fi or cable | People |
| H8c 2K⁺ | 4MP | Wi-Fi or cable | People |
| H8c Pro 3K | 5MP | Dual-band Wi-Fi (2.4 and 5 GHz) or cable | People and vehicles |
| H8c Pro 3K 4G | 5MP | 4G SIM, dual-band Wi-Fi or cable | People and vehicles |
| H8c Pro 4K | 8MP | Dual-band Wi-Fi (2.4 and 5 GHz) or cable | People and vehicles |
| H8c 4G | 3MP | 4G SIM or cable | People and vehicles |
Good Wi-Fi at the spot: a Wi-Fi model; where 2.4 GHz is crowded, the H8c Pro 3K and Pro 4K also work on 5 GHz. Weak Wi-Fi but a cable run: the H8c 2K on PoE. No internet at all: the H8c 4G or H8c Pro 3K 4G.
IR, colour night vision or ColorFULL: what is the difference?

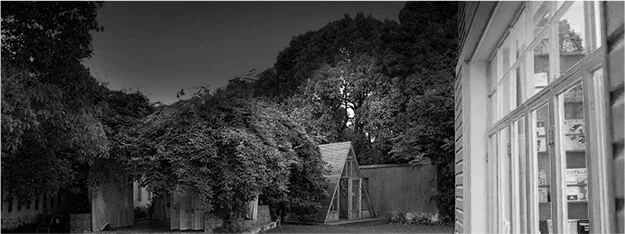

IR night vision uses invisible infrared light. It works in total darkness and reaches the furthest, but the video is black and white.
Colour night vision switches on white spotlights, usually when it detects someone, so the video is in colour and clothes, cars and faces are easier to tell apart. The sudden light also warns intruders off.
ColorFULL (H8x 2K⁺ and H80x Dual) uses a large sensor and a very bright F1.0 lens to record colour from very little light, such as a street lamp, without switching any lights on. In complete darkness it falls back to IR.
Does it scare off intruders?
Yes. When it detects a person it can sound a siren and flash its strobe light, and you can talk to visitors live through the EZVIZ app with two-way talk. Switch the warnings on or off in the app.
What do 2K, 3K and 4K mean in megapixels?
Brands use 2K, 3K and 4K loosely, so compare cameras by megapixels:
| Megapixels | Sold as | Pixels |
|---|---|---|
| 2MP | 1080p, Full HD | 1920 × 1080 |
| 3MP | 2K | 2304 × 1296 |
| 4MP | 2K⁺, QHD | 2560 × 1440 |
| 5MP | 3K | 2880 × 1620 |
| 8MP | 4K, UHD | 3840 × 2160 |
More megapixels keep faces and number plates readable when you zoom into a recording. For a room 2MP to 3MP is enough; for a gate, driveway or shop front, 4MP and above is worth it.
How does it record, and do I need a subscription?
Video is saved on a microSD card in the camera (not included). When the card is full, the oldest video is overwritten automatically. ESCO stocks genuine EZVIZ cards in 64 GB and 128 GB.
No subscription is needed: live view, playback, alerts and AI detection all work in the free EZVIZ app. EZVIZ CloudPlay is an optional paid plan that also keeps alert clips online, so they are safe even if the camera or card is stolen.
Who sells EZVIZ in Pakistan, and what warranty and support do I get?
Electronic Security Company (ESCO) is the authorized national distributor of EZVIZ in Pakistan, so every unit is genuine and comes with a 1-year warranty. Warranty is carry-in: bring the unit to an ESCO office or the dealer you bought from, and after inspection it is repaired or replaced.
Order here and delivery is free anywhere in Pakistan. We keep stock in Karachi, Lahore, Islamabad and Rawalpindi, and our dealer network covers almost every other city. EZVIZ products are made to set up yourself in the EZVIZ app; if you get stuck, our helpdesk helps on WhatsApp, phone and email, 10am to 6pm. Use Add to Cart, or Request a Quote for several units.
