CB5 4K
Smart Home Solar Battery Camera

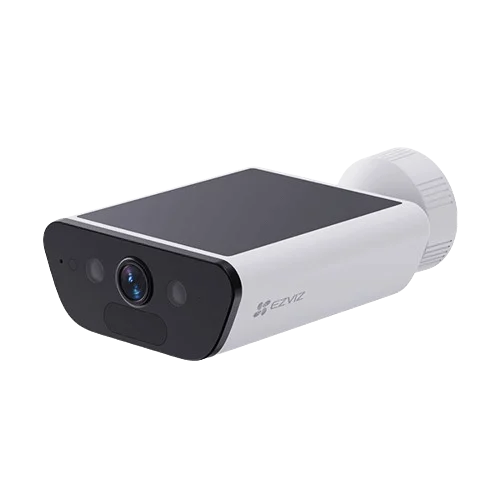

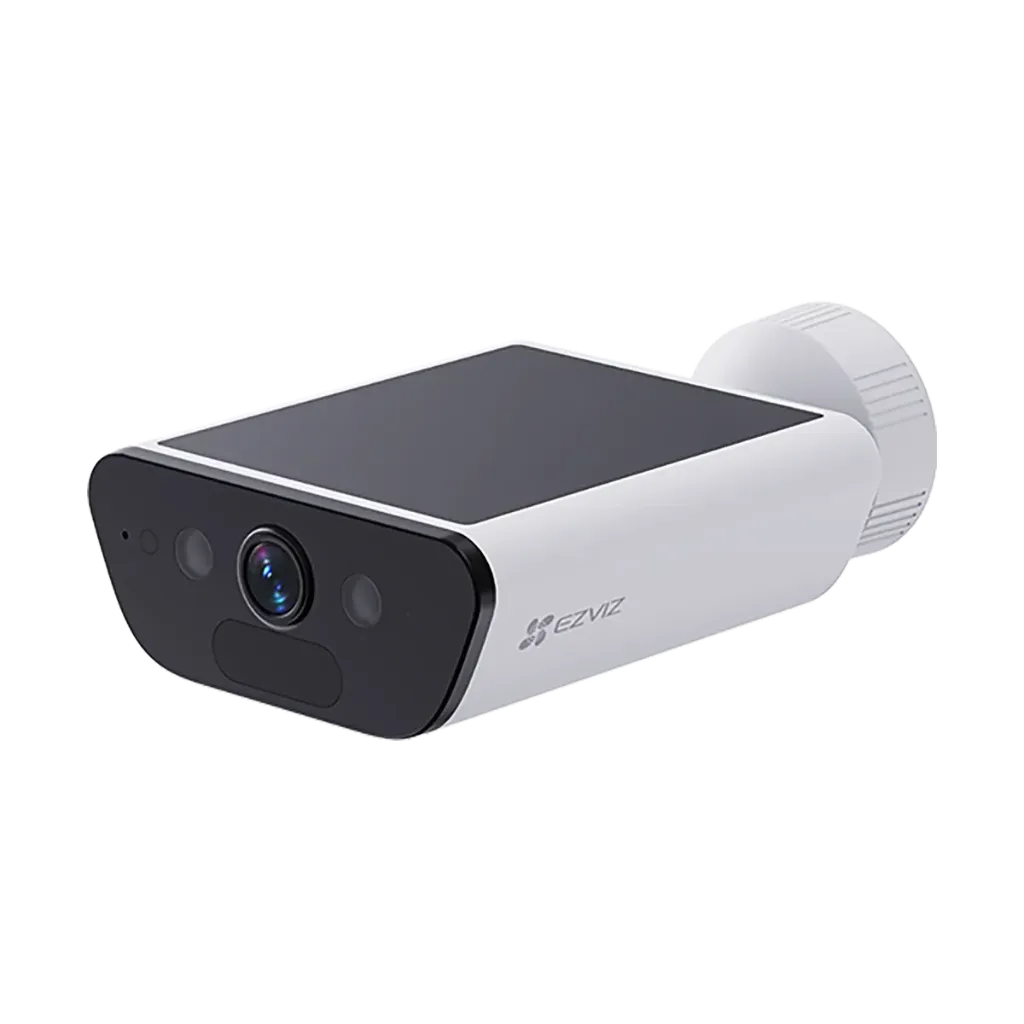

CB5 4K Smart Home Solar Battery Camera
Everything you need to know about the Ezviz CB5 before specifying it.
The EZVIZ CB5 4K is a wire-free smart home security camera designed for outdoor surveillance. It combines 4K Ultra HD video, a built-in solar panel, a large 10,400mAh battery, AI-powered human and vehicle detection, and weatherproof construction in one camera.
No. The CB5 4K is designed for wire-free installation and does not require a power cable or hub. Its integrated 1.4W solar panel can help keep the camera powered using sunlight, making it suitable for locations where running electrical wiring may be difficult.
The CB5 4K features a 10,400mAh rechargeable battery. EZVIZ states that it can operate for up to 180 days without solar charging under specified conditions. The built-in solar panel is designed to provide ongoing charging when sufficient sunlight is available.
Electronic Security Company (ESCO) supplies and installs professional security and surveillance solutions across Pakistan, including EZVIZ cameras such as the CB5 4K and other advanced security products.
Discover the Ezviz CB5 4K
Features
Wire-free, hassle-free
Install CB5 effortlessly – no wires, no hubs and no extra solar panels. Its compact design makes it easy to change its location to find the best sunny spot.
4K Ultra HD
The lens of the CB5 to render stunning 4K videos, so even the smallest detail that usually slips your attention now becomes crystal clear.
True-to-life night vision
Delivers vibrant, full-color live feeds at night with its integrated spotlights. Equipped with the F1.6 aperture, crisp visuals in low-light condition, too.
Extra-large storage for everyday videos
Built to last long
The CB5 is made with a durable, weatherproof enclosure. You can always trust on its performance against rain, dust and snow.
H.265 for enhanced video experience
The H.265 creates a smoother viewing experience while only using about 50% of the data storage space required by cameras with H.264.
|
Camera |
|
|
Image Sensor |
1/2.7” 8-Megapixel Progressive Scan CMOS Sensor |
|
Minimum Illumination |
0.01 Lux @(F1.6, AGC ON), 0 Lux with IR |
|
Shutter Speed |
Self-adaptive shutter |
|
Lens |
2.8mm@ F1.6; 135° (Diagonal), 113° (Horizontal), 60° (Vertical) |
|
Day & Night |
IR-Cut filter with auto-switching |
|
DNR |
3D DNR |
|
Night Vision |
IR Distance: 15m, Color Night Vision Distance: 15m |
|
Video & Audio |
|
|
Max. Resolution |
3840 × 2160 |
|
Frame Rate |
15fps. Self-Adaptive during network transmission |
|
Video Compression |
H.265 / H.264 |
|
Video Bit Rate |
Ultra HD; Quad HD; Full HD; Hi-Def Adaptive bit rate. |
|
Audio Bit Rate |
Self-Adaptive |
|
Max. Bitrate |
4 Mbps |
|
Network |
|
|
Bluetooth |
Supports |
|
Wi-Fi Standard |
IEEE802.11b, 802.11g, 802.11n, 802.11ax |
|
Frequency Range |
2.4 GHz ~ 2.4835 GHz |
|
Channel Bandwidth |
Supports 20 MHz |
|
Security |
WPA-PSK/WPA2-PSK, WPA3-Personal |
|
Transmission Rate |
11b: 11Mbps, 11g: 54Mbps, 11n: 72Mbps, 11ax: 114Mbps |
|
Wi-Fi Pairing |
AP pairing |
|
Protocol |
EZVIZ Cloud proprietary protocol |
|
Interface Protocol |
EZVIZ Cloud proprietary protocol |
|
Minimum Network Requirement |
8Mbps |
|
Function |
|
|
Smart Alarm |
AI-Powered Human Shape Detection, AI-Powered Vehicle Detection |
|
Two-way Talk |
Supports |
|
General Function |
Anti-Flicker, Heart Beat, Password Protection, Watermark |
|
Storage |
|
|
Local Storage |
Supports Micro SD slot for local storage (Up to 512G) |
|
Cloud Storage |
EZVIZ cloud storage |
|
General |
|
|
Operating Conditions |
-20 °C to 50 °C (-4 °F to 122 °F ), humidity 95% or less (Non-condensing) |
|
IP Grade |
IP65 |
|
Power Supply |
DC 5V/2A (Compatible power adapter needs to be purchased separately) |
|
Battery Capacity |
10400 mAh |
|
Power Consumption |
Max. 10W |
|
Product Dimensions |
166 × 103 × 54 mm |
|
Packaging Dimensions |
227 × 167 × 64 mm |
|
Weight |
Net Weight: 466g With Package: 822g |
