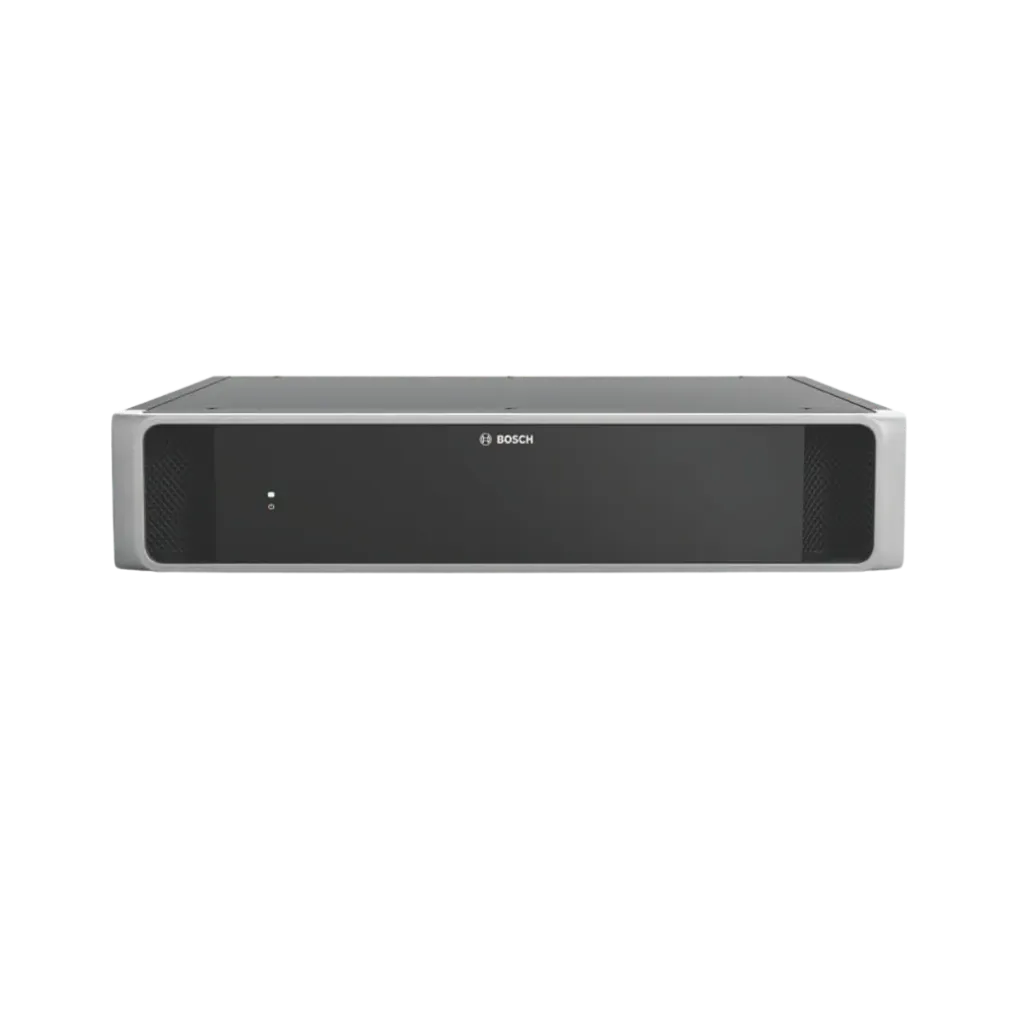

Bosch DCNM-APS2 Product Highlights
Explore the key capabilities of the Bosch DCNM-APS2 Audio Processor and Powering Switch, designed for reliable audio processing, network integration and power distribution in DICENTIS systems.
Central Audio Processing
Routes, controls and processes DICENTIS system audio while acting as a central system component.
Integrated System Power
Supplies power to compatible DICENTIS discussion and multimedia devices, with a total system power capacity of 3 × 144 W + 15 W.
Ethernet & OMNEO Networking
Supports Ethernet (IEEE 802.3) and OMNEO, enabling integration within the IP-based DICENTIS architecture.
Cable Redundancy Support
Supports loop-through connections with cable redundancy, helping create more resilient DICENTIS system cabling.
Acoustic Feedback Suppression
Includes an intelligent adaptive acoustic feedback suppressor and two 5-band parametric equalizers for system audio optimization.
Flexible Audio & Network Connectivity
Provides balanced XLR and unbalanced RCA audio I/O plus powered and non-powered Ethernet connections for DICENTIS system integration.
DCNM-APS2 Rear Panel & Connection Reference
Identify the audio I/O, Ethernet sockets, power controls and overload indicators available on the DCNM-APS2 rear panel.
Front view with rack mounting, ventilation and indication LED
| Item | Description |
|---|---|
| 1 | 19-inch mounting brackets |
| 2 | Ventilation inlet |
| 3 | Indication LED |
Front LED Status
- Off: Switched off.
- Green: Switched on.
- Amber: Standby.
- Blinking: Services on the server PC are not running.
- Alternating green/amber: Software download is required.
Front view with rack mounting, ventilation and indication LED
| Item | Description |
|---|---|
| 1 | 19-inch mounting brackets |
| 2 | Ventilation inlet |
| 3 | Indication LED |
Front LED Status
- Off: Switched off.
- Green: Switched on.
- Amber: Standby.
- Blinking: Services on the server PC are not running.
- Alternating green/amber: Software download is required.
| Item | Description |
|---|---|
| 1, 5 | XLR line inputs 1 and 2 |
| 2, 6 | RCA line inputs 1 and 2 |
| 3, 7 | XLR line outputs 1 and 2 |
| 4, 8 | RCA line outputs 1 and 2 |
| 9 | Mains inlet, mains switch and fuse holder |
| 10 | Reset button |
| 11 | Ground switch — grounded or floating |
| 12 | Socket 1 without power |
| 13 | Socket 2 — low power |
| 15, 17, 19 | Sockets 3, 4 and 5 — high power |
| 14, 16, 18, 20 | Overload LEDs for sockets 2–5 |
Powered Socket LED Status
Green: Power OK.
Red: Overload. Remove the cable and wait a few seconds for the system to reset the overload.

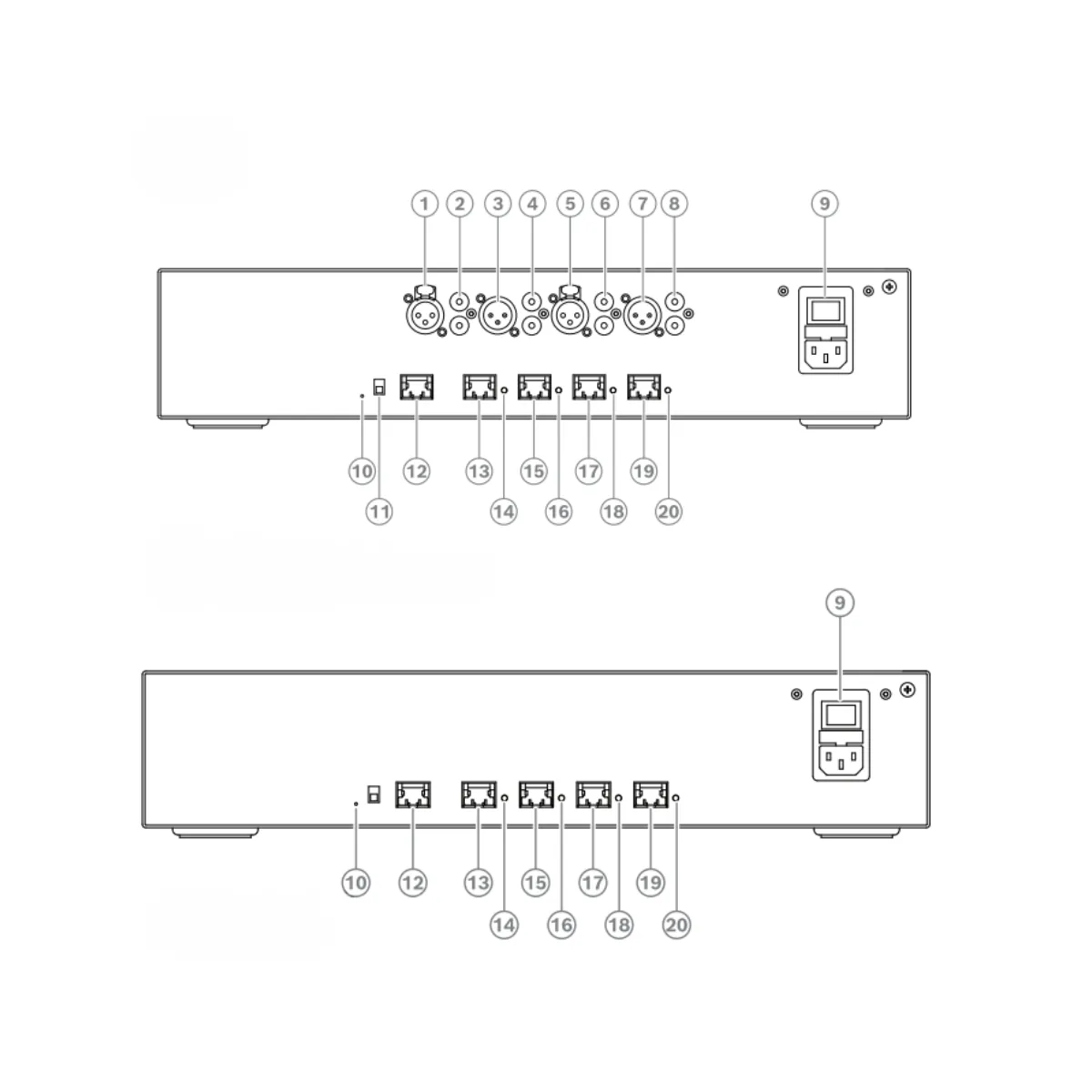

Rear panel reference showing APS2 and powering switch connection layout
| Item | Description |
|---|---|
| 1, 5 | XLR line inputs 1 and 2 |
| 2, 6 | RCA line inputs 1 and 2 |
| 3, 7 | XLR line outputs 1 and 2 |
| 4, 8 | RCA line outputs 1 and 2 |
| 9 | Mains inlet, mains switch and fuse holder |
| 10 | Reset button |
| 11 | Ground switch — grounded or floating |
| 12 | Socket 1 without power |
| 13 | Socket 2 — low power |
| 15, 17, 19 | Sockets 3, 4 and 5 — high power |
| 14, 16, 18, 20 | Overload LEDs for sockets 2–5 |
Powered Socket LED Status
Green: Power OK.
Red: Overload. Remove the cable and wait a few seconds for the system to reset the overload.
Rear panel reference showing APS2 and powering switch connection layout
Applications of Bosch DCNM-APS2
Explore how the Bosch DCNM-APS2 supports professional DICENTIS installations through centralized audio processing, hybrid conferencing integration, system powering and resilient network design.

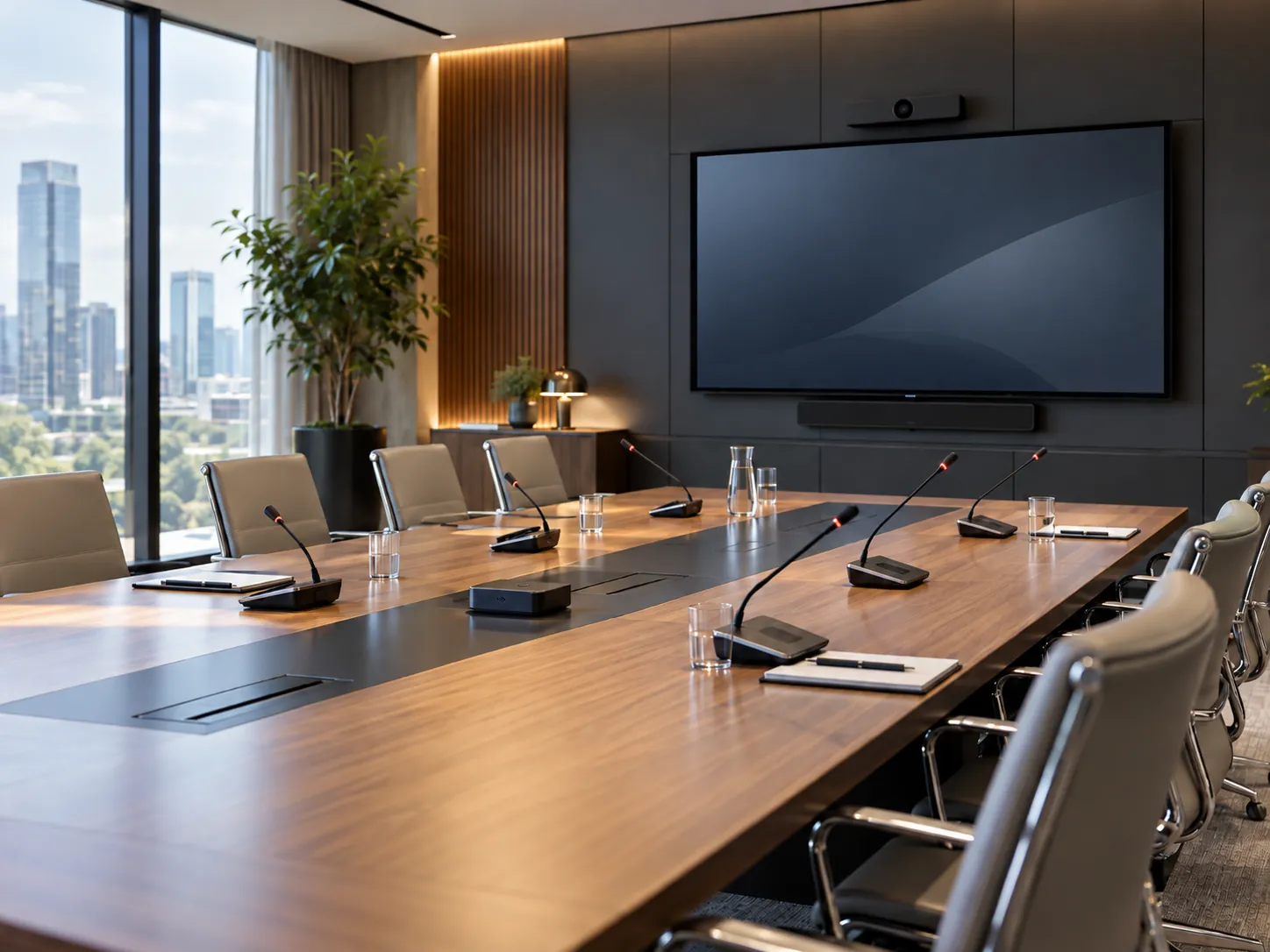

Hybrid & Video Conferencing
Analogue audio I/O and mix-minus functionality support integration with video conferencing equipment and external sound systems.

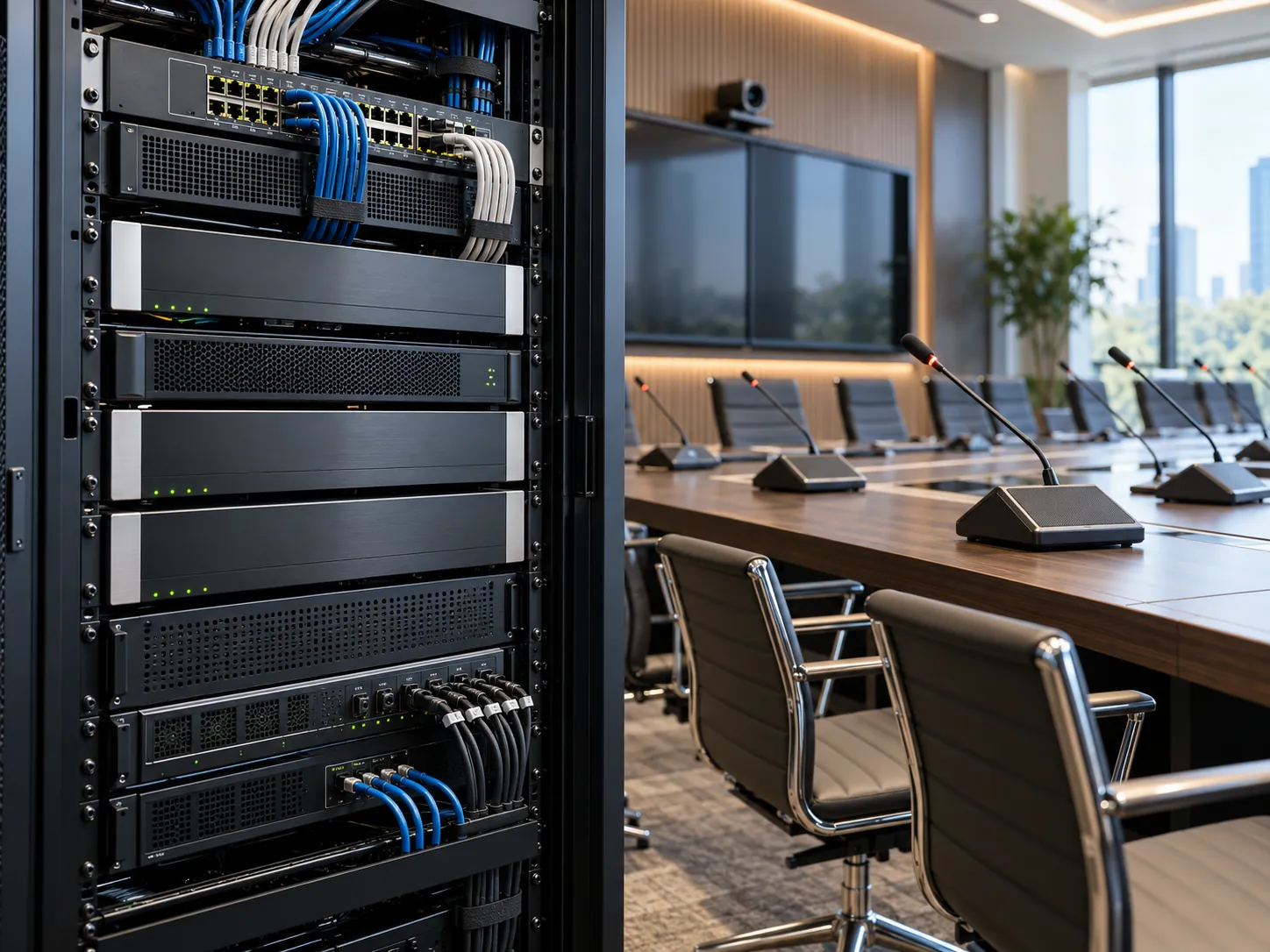

Redundant & Scalable DICENTIS Installations
Loop-through networking and cable redundancy support resilient DICENTIS deployments where system reliability and expansion matter.

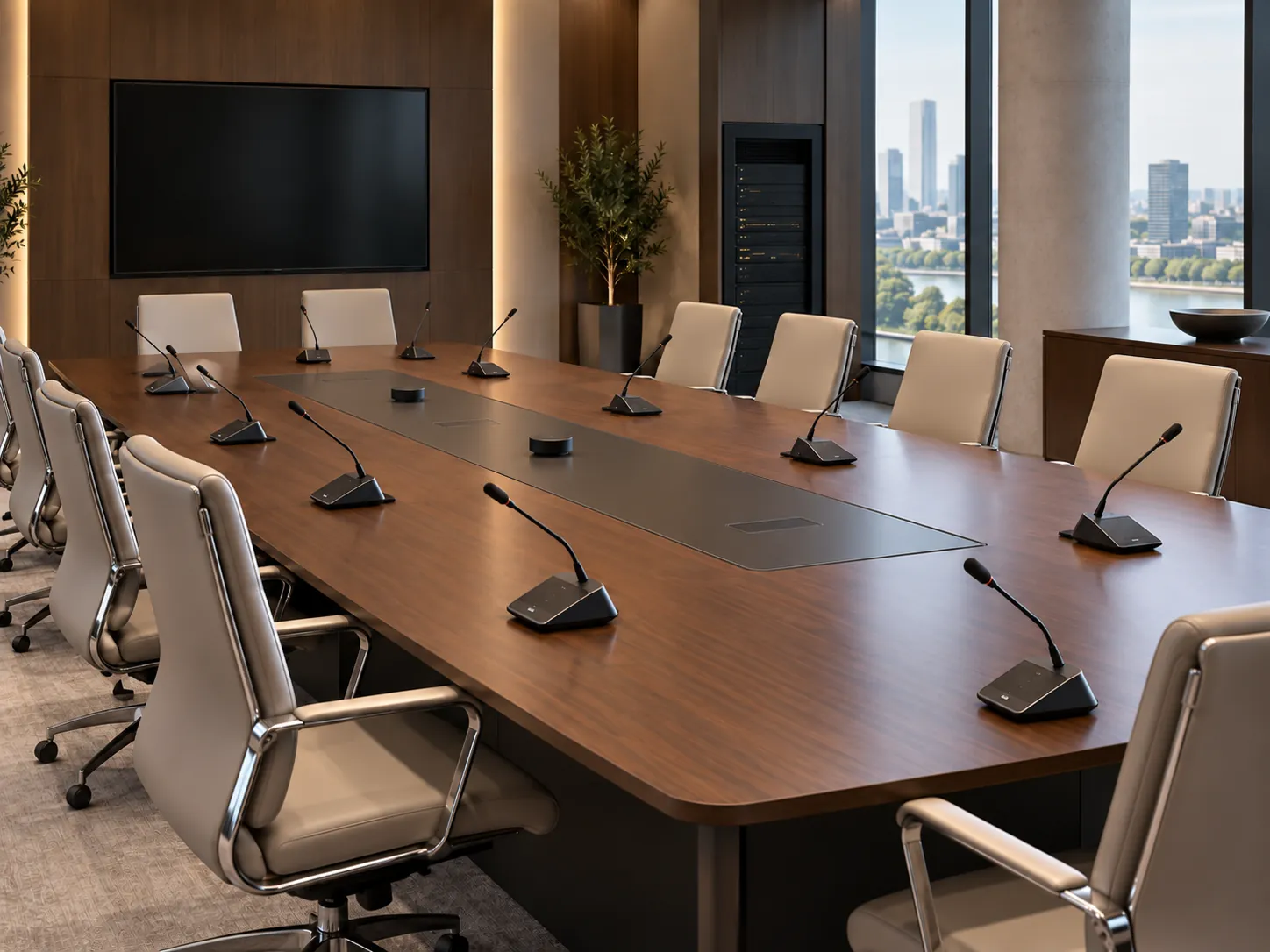

Conference & Council Systems
Supports centralized audio routing, processing and device power distribution across professional DICENTIS conference environments.
Hybrid & Video Conferencing
Analogue audio I/O and mix-minus functionality support integration with video conferencing equipment and external sound systems.
Redundant & Scalable DICENTIS Installations
Loop-through networking and cable redundancy support resilient DICENTIS deployments where system reliability and expansion matter.
Key specs
- Audio routing, processing and device power
- Feedback suppressor, 2 x 5-band parametric EQ
- Audio in: 2 XLR + 4 RCA, out: 2 XLR + 4 RCA
- 3 x 144 W + 1 x 15 W powered sockets, 1 unpowered
- 48 VDC system supply, 575 W
- Loop-through with cable redundancy
- 30 Hz to 20 kHz, S/N 95 dB
- 19" rack or tabletop, 7.62 kg
Bosch DCNM-APS2 Audio Processor and Powering Switch Technical Specifications
Review the key system, audio, power, connectivity, mechanical and environmental specifications of the Bosch DCNM-APS2.
| Category | Specification | Details |
|---|---|---|
| General | Product Type | Audio processor and powering switch |
| Main Function | Routes, controls and processes system audio while supplying power to DICENTIS discussion and multimedia devices | |
| Network Configuration | Zero network configuration | |
| Network Standards | Ethernet (IEEE 802.3) and OMNEO | |
| Redundancy | Supports loop-through connection with cable redundancy | |
| Audio Processing | Intelligent adaptive acoustic feedback suppression | |
| Equalization | 2 × 5-band parametric equalizers | |
| Remote Operation | Fully remotely controllable | |
| Electrical / Power | Input Voltage | 100–240 VAC |
| Power Frequency | 50 Hz / 60 Hz | |
| Power Consumption | 575 W | |
| System Supply | 48 VDC | |
| Total Power Supply | 3 × 144 W + 15 W | |
| Audio Performance | Frequency Response (-3 dB) | 30 Hz – 20,000 Hz |
| THD + Noise | 0.10% | |
| Minimum Dynamic Range | 95 dB | |
| Minimum Signal-to-Noise Ratio | 95 dB | |
| Audio Inputs | XLR Inputs | 2 × 3-pole balanced XLR with galvanic separation |
| RCA Inputs | 4 × unbalanced RCA | |
| XLR Nominal Input | -18 dBV (+6 dB / -18 dB) | |
| XLR Maximum Input | +18 dBV | |
| RCA / Cinch Nominal Input | -30 dBV (+6 dB / -18 dB) | |
| RCA / Cinch Maximum Input | +6 dBV | |
| Audio Outputs | XLR Outputs | 2 × 3-pole balanced XLR with galvanic separation |
| RCA Outputs | 4 × unbalanced RCA | |
| XLR Nominal Output | -18 dBV (+8 dB / -24 dB) | |
| XLR Maximum Output | +20 dBV | |
| RCA / Cinch Nominal Output | -30 dBV (+8 dB / -24 dB) | |
| RCA / Cinch Maximum Output | +8 dBV | |
| Network / Power Ports | Ethernet Without Power | 1 × RJ45-compatible socket |
| High-Power Ethernet | 3 × RJ45-compatible sockets, 144 W each | |
| Low-Power Ethernet | 1 × RJ45-compatible socket, 15 W | |
| Mechanical | Mounting | Rack-mounted or tabletop |
| Tabletop Dimensions | 92 × 440 × 400 mm | |
| 19-inch Rack Dimensions | 88 × 483 × 400 mm | |
| Rack Depth in Front of Brackets | 40 mm | |
| Rack Depth Behind Brackets | 360 mm | |
| Weight | 7.62 kg (16.79 lb) | |
| Colour | Traffic black, RAL 9017 | |
| Environmental | Operating Temperature | 0°C to +45°C |
| Storage Temperature | -20°C to +70°C | |
| Transportation Temperature | -20°C to +70°C | |
| Operating Relative Humidity | 5%–96%, non-condensing | |
| Identification | Model / CTN | DCNM-APS2 |
| Primary Product Number | F.01U.308.936 |
Questions & answers
Know before you buy
Quick answers about the DCNM-APS2, and how it compares.
What does the DCNM-APS2 do?
It is the central unit of a DICENTIS system. It routes, controls and processes the audio of all participants and supplies power to the discussion and multimedia devices over the network cable. An adaptive acoustic feedback suppressor and two 5-band parametric equalizers keep speech clear and stop howling in the room.
DCNM-APS2 or DCNM-PS2: which do I need?
Every DICENTIS system needs one DCNM-APS2. It routes, controls and processes all the audio (feedback suppression, two 5-band equalizers, analogue audio in and out for a PA system or video conferencing) and powers the devices.
The DCNM-PS2 is a powering switch only, with no audio. Add one when the system needs more power or more network ports than the APS2 gives. Both have the same sockets: three 144 W, one 15 W and one without power.
Can I connect a PA system or video conferencing?
Yes. It has 2 balanced XLR and 4 RCA inputs to bring outside audio into the system, and 2 balanced XLR and 4 RCA outputs for an external sound reinforcement (PA) system. Mix-minus connects video conferencing equipment, so remote participants hear the room without hearing themselves back.
How much power does it supply?
A 48 VDC system supply over three 144 W sockets and one 15 W socket, plus one network socket without power. Each powered socket works on its own: a short circuit on one does not affect the others, and a rear LED shows green for power and red for overload.
What are loop-through and cable redundancy?
DICENTIS devices are daisy-chained: each device connects to the next with one network cable. The last device in the loop can be connected back to a DCNM-APS2 or DCNM-PS2, so the loop is fed from both ends. If one cable is damaged, the devices stay powered and connected from the other side.
How is it installed?
In a 19-inch rack with the brackets, or on a table with its feet. It has no user controls: it is set up and controlled remotely from the DICENTIS system, needs no network configuration, and goes to standby when the system is not in use.
