Expanded DICENTIS Conference Systems
Provides additional system power for DICENTIS installations requiring increased capacity for connected conference devices.
DICENTIS Conference System
Revolutionary IP-based platform for the integrated conference world of tomorrow
DICENTIS Conference System
Revolutionary IP-based platform for the integrated conference world of tomorrow
Bosch DCNM-PS2 Product Highlights
Add power and network ports to a DICENTIS system: a built-in Ethernet switch, three 144 W powered sockets and cable redundancy.
Additional DICENTIS Power
Provides additional power to the DICENTIS network for connected conference devices.Built-in Ethernet Switching
The built-in Ethernet switch connects DICENTIS devices together across the system network.
High-Power Network Outputs
Includes three 144 W high-power Ethernet sockets plus one 15 W low-power Ethernet socket.
Cable Redundancy Support
Supports loop-through connection and cable redundancy for more resilient DICENTIS installations.
Zero Network Configuration
Supports zero network configuration and is compatible with Ethernet IEEE 802.3 and OMNEO
Independent Powered Sockets
Powered sockets operate independently, so a short circuit on one powered socket does not affect the others.
Bosch DCNM-PS2 Installation & Rear Connections
Review the rack and tabletop mounting options, Ethernet connections, powered network ports and rear-panel status indicators of the Bosch DCNM-PS2 DICENTIS Powering Switch.

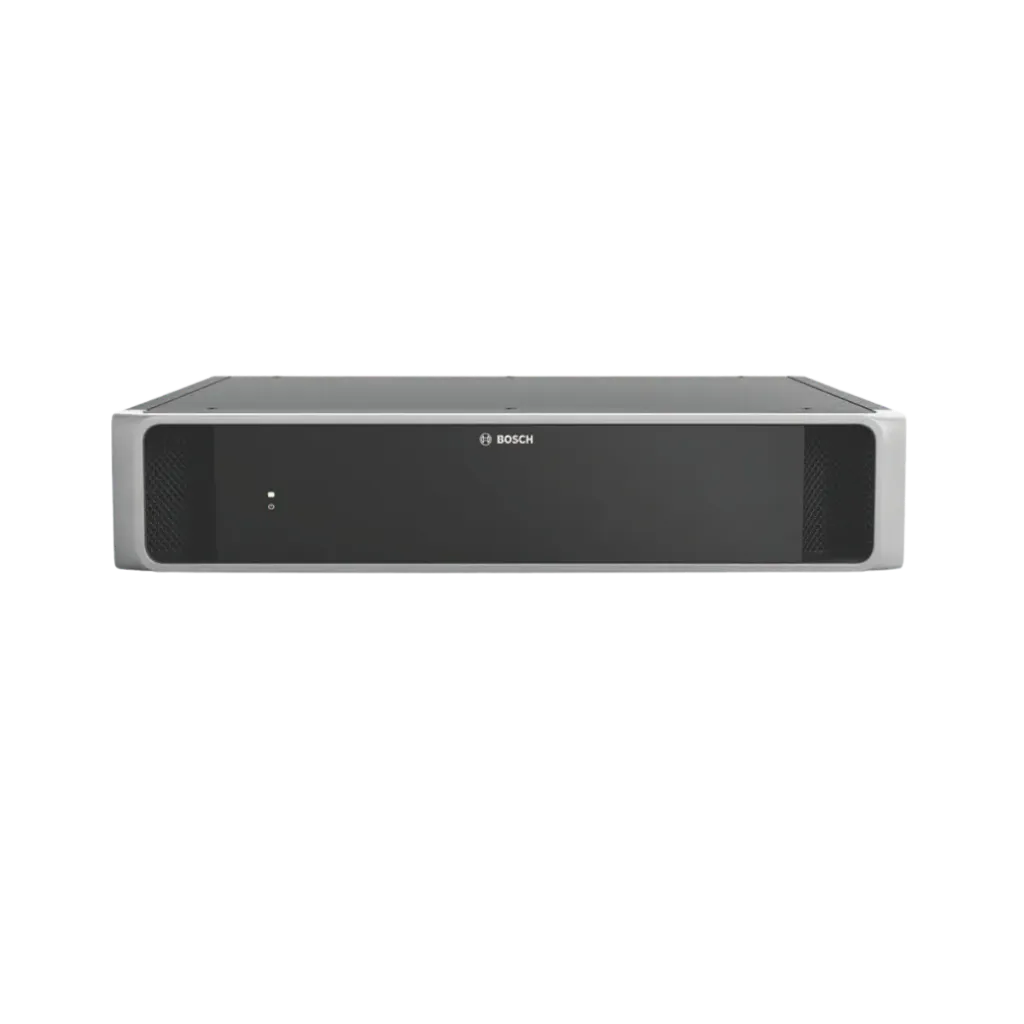

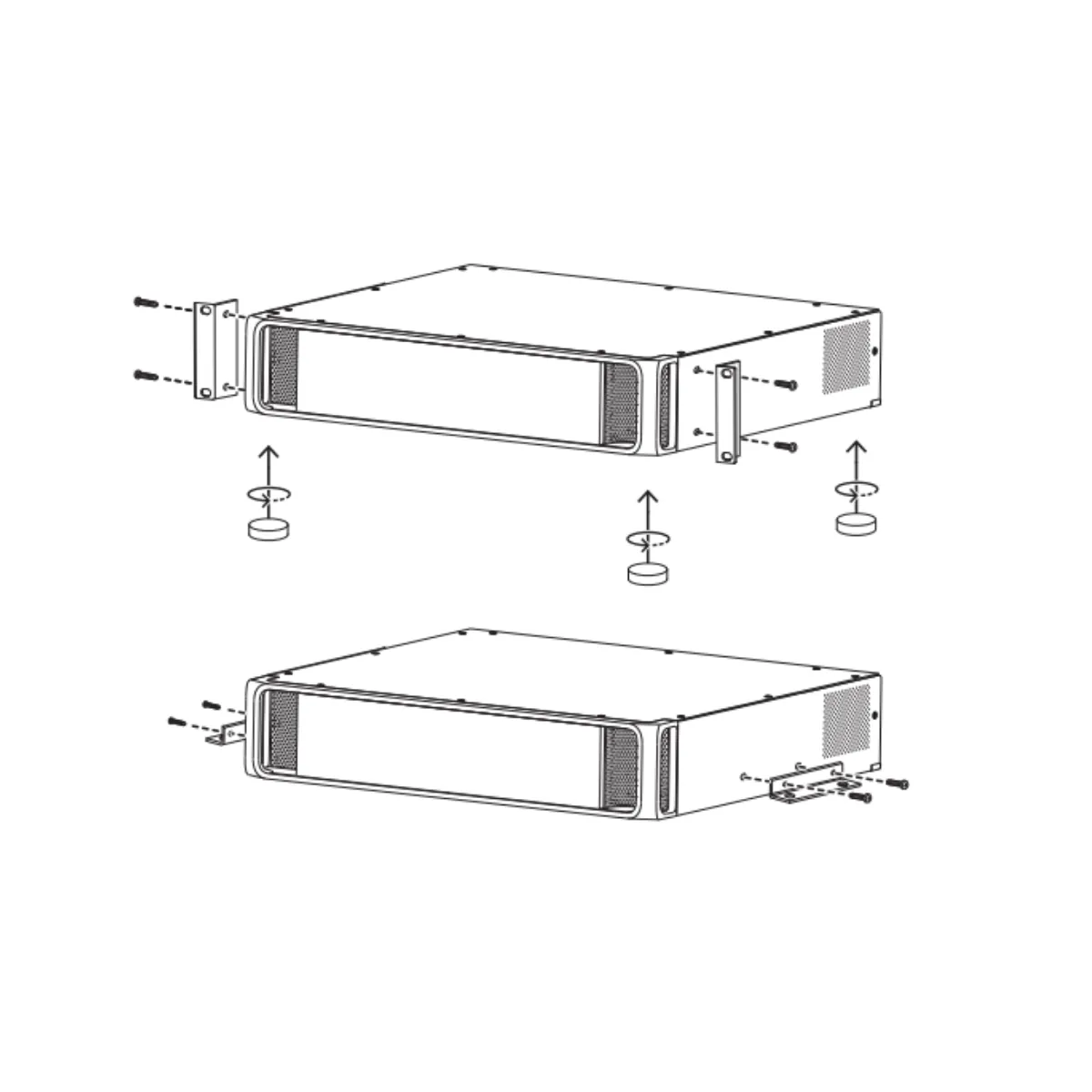

Bosch DCNM-PS2 front view with status indication
| Feature | Description |
|---|---|
| Front Panel | Clean front panel with system status indication |
| Status LED | Displays power, standby and system connection status |
| Installation | Suitable for 19-inch rack mounting or tabletop use |
Front LED Status
- Green: Power on.
- Amber: Standby.
- Blinking: No connection to the system.
Bosch DCNM-PS2 front view with status indication
| Feature | Description |
|---|---|
| Front Panel | Clean front panel with system status indication |
| Status LED | Displays power, standby and system connection status |
| Installation | Suitable for 19-inch rack mounting or tabletop use |
Front LED Status
- Green: Power on.
- Amber: Standby.
- Blinking: No connection to the system.
| Connection | Description |
|---|---|
| Mains Power | Auto-ranging mains power input with rear power switch. |
| Ethernet Without Power | 1 × RJ45 Ethernet connection without system power. |
| Low-Power Ethernet | 1 × RJ45 Ethernet connection providing up to 15 W. |
| High-Power Ethernet | 3 × RJ45 Ethernet connections providing up to 144 W each. |
| Powered Socket LEDs | Rear indicators show power availability and overload status for each powered socket. |
| Ethernet LEDs | Yellow and amber Ethernet status LEDs are provided for each network socket. |
Powered Socket Status
Green: Power available on the powered socket.
Red: Overload on the powered socket.

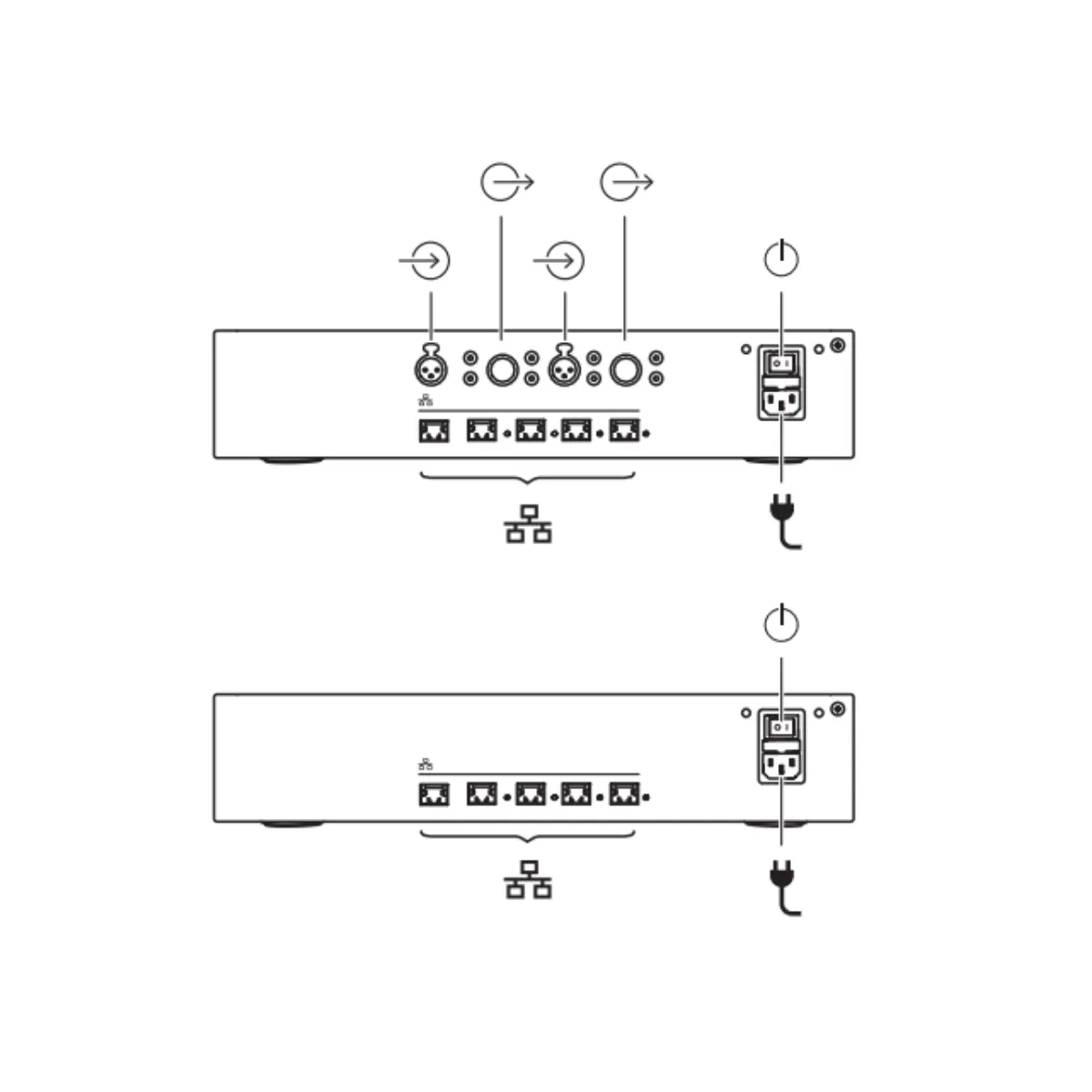

DCNM-PS2 rear panel Ethernet and power connection layout
| Connection | Description |
|---|---|
| Mains Power | Auto-ranging mains power input with rear power switch. |
| Ethernet Without Power | 1 × RJ45 Ethernet connection without system power. |
| Low-Power Ethernet | 1 × RJ45 Ethernet connection providing up to 15 W. |
| High-Power Ethernet | 3 × RJ45 Ethernet connections providing up to 144 W each. |
| Powered Socket LEDs | Rear indicators show power availability and overload status for each powered socket. |
| Ethernet LEDs | Yellow and amber Ethernet status LEDs are provided for each network socket. |
Powered Socket Status
Green: Power available on the powered socket.
Red: Overload on the powered socket.
DCNM-PS2 rear panel Ethernet and power connection layout
Applications of Bosch DCNM-PS2
Explore how the Bosch DCNM-PS2 supports expanded DICENTIS systems, larger networked conference installations and resilient conference infrastructures through additional power, Ethernet connectivity and cable redundancy.

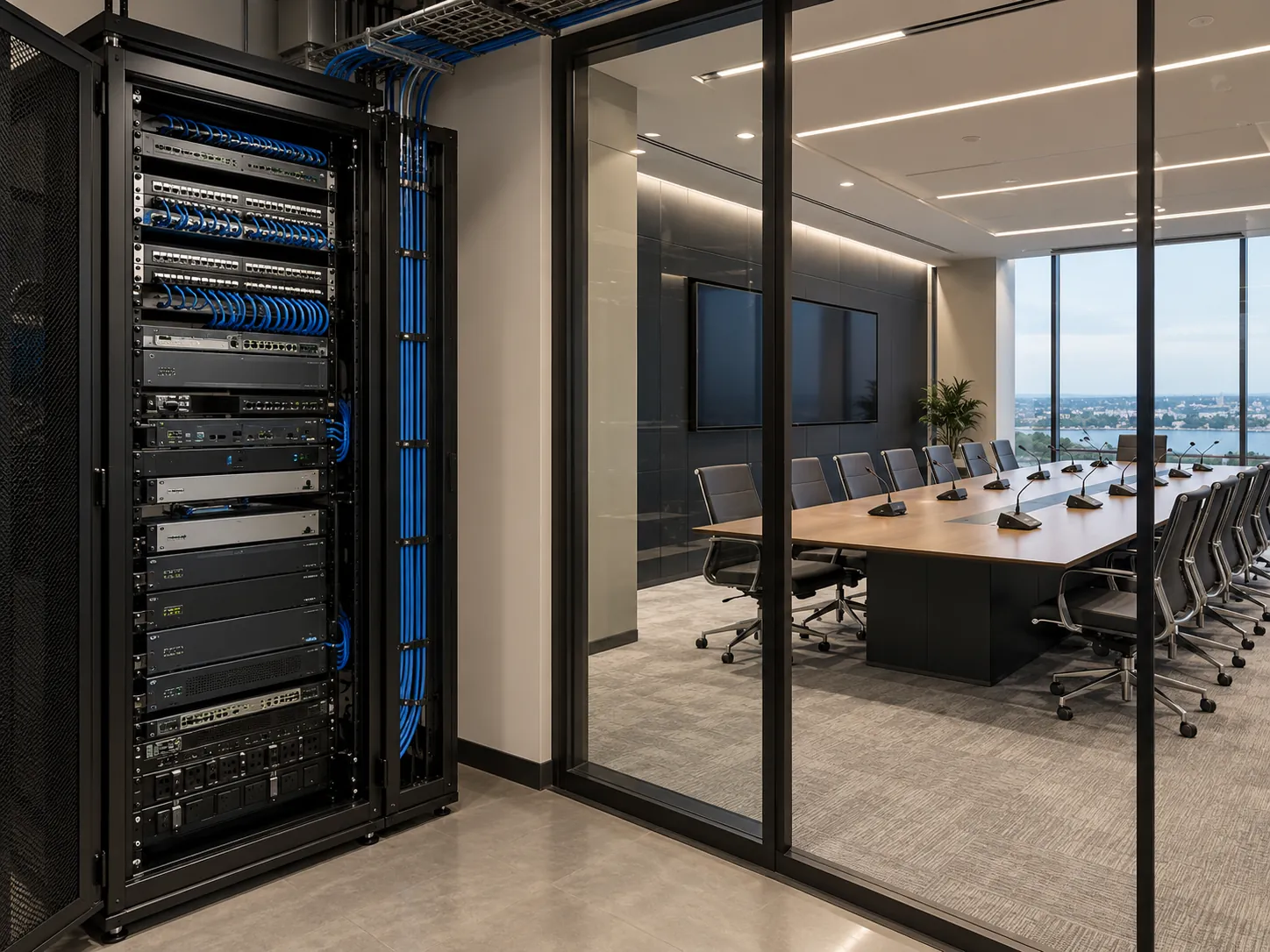

Large Networked Conference Installations
Built-in Ethernet switching and multiple powered network connections support larger distributed DICENTIS system designs.

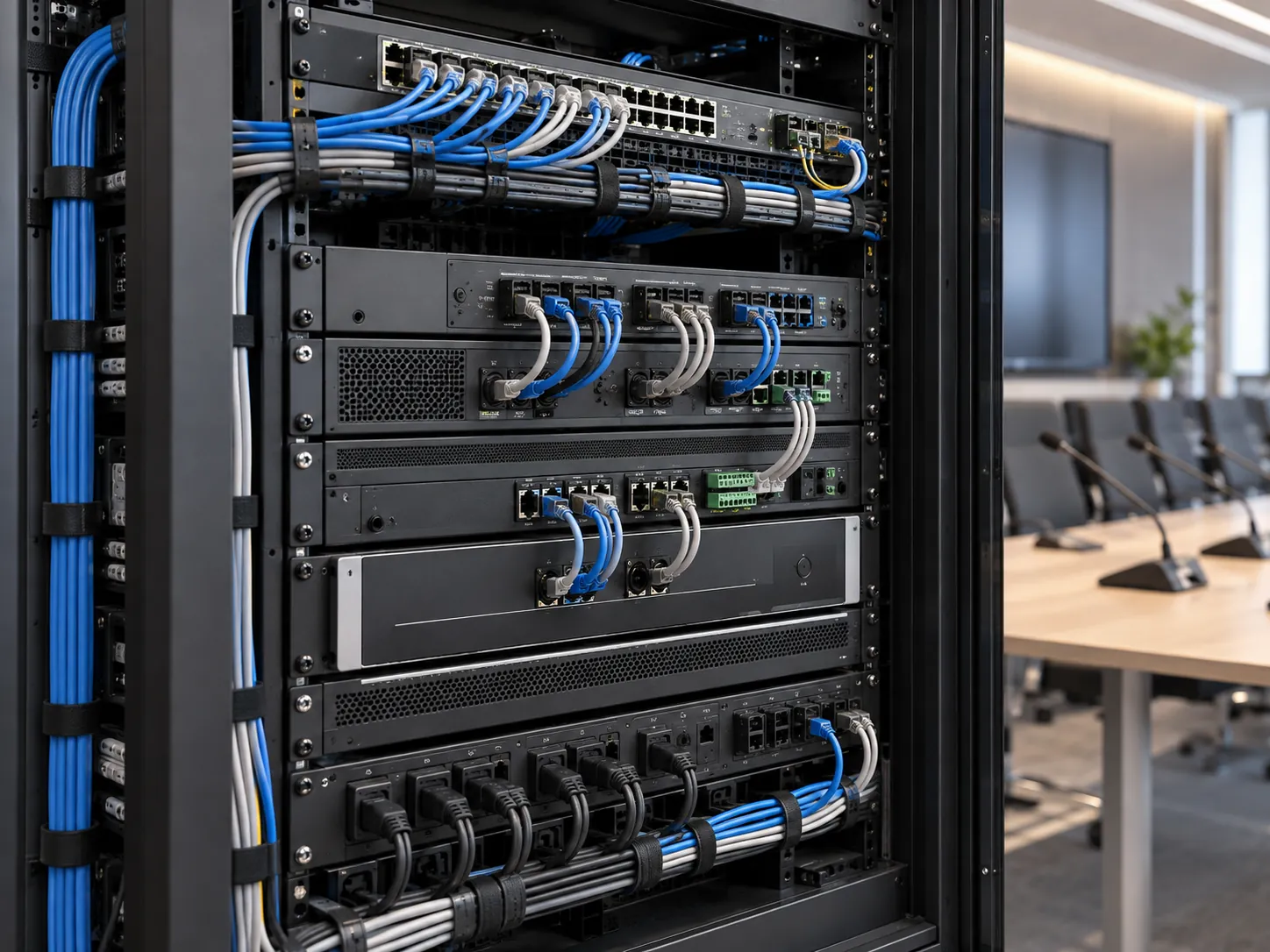

Redundant DICENTIS Network Designs
Loop-through connectivity and cable redundancy support resilient DICENTIS installations where reliable system operation is important.
Expanded DICENTIS Conference Systems
Provides additional system power for DICENTIS installations requiring increased capacity for connected conference devices.
Large Networked Conference Installations
Built-in Ethernet switching and multiple powered network connections support larger distributed DICENTIS system designs.
Redundant DICENTIS Network Designs
Loop-through connectivity and cable redundancy support resilient DICENTIS installations where reliable system operation is important.
Key specs
- Powering switch with built-in Ethernet switch
- 3 x 144 W + 1 x 15 W powered sockets, 1 unpowered
- 48 VDC system supply, 530 W
- Independent powered sockets, overload LEDs
- Loop-through with cable redundancy
- Zero network configuration, OMNEO
- Hot plug and play, standby mode
- 19" rack or tabletop, 7.40 kg
Technical Specifications of Bosch DCNM-PS2
Review the electrical, network, power, mechanical and environmental specifications of the Bosch DCNM-PS2 DICENTIS Powering Switch, including its Ethernet connectivity, power output and installation requirements.
| Category | Specification | Value |
|---|---|---|
| Electrical | Input Voltage | 100–240 VAC |
| Power Frequency | 50 / 60 Hz | |
| Power Consumption | 530 W | |
| System Supply | 48 VDC | |
| Total Power Supply | 3 × 144 W + 15 W | |
| Network & Power | Ethernet Without Power | 1 × RJ45 |
| High-Power Ethernet Sockets | 3 × 144 W RJ45 | |
| Low-Power Ethernet Socket | 1 × 15 W RJ45 | |
| Network Standard | Ethernet IEEE 802.3 | |
| Media Networking | OMNEO | |
| Zero Network Configuration | Supported | |
| Loop-Through Connection | Supported | |
| Cable Redundancy | Supported | |
| Hot Plug & Play | Supported | |
| Controls & Indicators | Main Power Control | Rear mains switch |
| Front LED | Green = power on, Amber = standby, Blinking = no system connection | |
| Powered Socket LED | Green = power available, Red = overload | |
| Ethernet LEDs | Yellow and amber per socket | |
| Powered Outputs | Independent powered sockets | |
| User Controls | No local user controls | |
| Remote Control | Fully remotely controlled | |
| Mechanical | Mounting Type | Rack-mounted / Tabletop |
| Tabletop Dimensions | 92 × 440 × 400 mm | |
| 19-inch Rack Dimensions | 88 × 483 × 400 mm | |
| Front of Brackets | 40 mm | |
| Behind Brackets | 360 mm | |
| Weight | 7.40 kg | |
| Color | RAL 9017 Traffic black | |
| Environmental | Operating Temperature | 0°C to 45°C |
| Storage Temperature | -20°C to 70°C | |
| Transportation Temperature | -20°C to 70°C | |
| Relative Humidity | 5%–96%, non-condensing | |
| Included Component | Quantity | 1 |
| Component | DCNM-PS2 DICENTIS Powering Switch | |
| System Requirement | Required License / System Software | DCNM-LSYS required |
Questions & answers
Know before you buy
Quick answers about the DCNM-PS2, and how it compares.
What is the DCNM-PS2 used for?
It adds power and network ports to a DICENTIS system. Its built-in Ethernet switch connects the devices, and its powered sockets feed them over the network cable. It has no audio processing, so it works together with the DCNM-APS2, which every system needs.
DCNM-APS2 or DCNM-PS2: which do I need?
Every DICENTIS system needs one DCNM-APS2. It routes, controls and processes all the audio (feedback suppression, two 5-band equalizers, analogue audio in and out for a PA system or video conferencing) and powers the devices.
The DCNM-PS2 is a powering switch only, with no audio. Add one when the system needs more power or more network ports than the APS2 gives. Both have the same sockets: three 144 W, one 15 W and one without power.
How much power does it supply?
A 48 VDC system supply over three 144 W sockets and one 15 W socket, plus one network socket without power. Each powered socket works on its own: a short circuit on one does not affect the others, and a rear LED shows green for power and red for overload.
What are loop-through and cable redundancy?
DICENTIS devices are daisy-chained: each device connects to the next with one network cable. The last device in the loop can be connected back to a DCNM-APS2 or DCNM-PS2, so the loop is fed from both ends. If one cable is damaged, the devices stay powered and connected from the other side.
How is it installed?
In a 19-inch rack with the brackets, or on a table with its feet. It has no user controls: it is controlled remotely from the DICENTIS system, needs no network configuration, supports hot plug and play, and goes to standby when the system is not in use.
Who supplies Bosch DICENTIS in Pakistan, and what warranty do I get?
Electronic Security Company (ESCO) is the only authorized distributor of Bosch, Dynacord and Electro-Voice in Pakistan, so every DICENTIS product is genuine and comes with a 3-year warranty. Warranty is carry-in: bring the unit to an ESCO office and after inspection it is repaired or replaced as needed.
We supply, design and install complete conference and voting systems for parliaments, government offices, boardrooms and auditoriums, with after-sales service nationwide. Prices are quoted per project: tell us your room and number of seats and we will send a quote.
